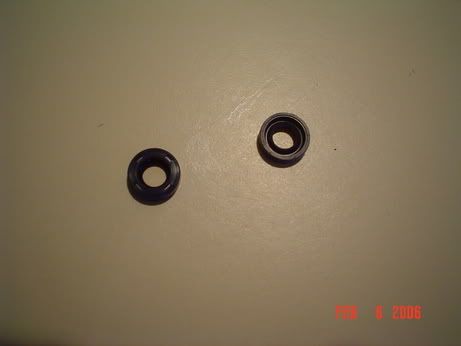

These small seals (about 1/2 inch in diameter) came in the same package as the cam seals with my engine gasket kit from Toyota. What the heck are they and where do they go? I assume they are some kind of oil seal but I didn't run across them yet in my teardown (or my buildup for that matter :) ) TIA


·
Registered
Joined
·
46 Posts
Defenetly not injector seals, those are like rubber O rings. What you have above is a shaft seal, look too small to be cam seals. I have no idea what they would be for, I just rebuilt my engine and never seen a seal smaller then the cam seals on the engine.


·
Registered
Joined
·
918 Posts
Can't really see in the picture but if there is 8 Black and 8 Brown they are your valve seals. They attach on the top of the the guide.


·
Registered
Joined
·
1,191 Posts
are they the gaskets in for the spark plug holes where the valve cover mates with the head?

Edit: Oh, i just saw the " 1/2" in diameter ", spark plug seals are prolly like 1"-1.5" diameter.


·
Registered
Joined
·
46 Posts
This is a 3sgte? OEM toyota kit? I am kind of curious now. I have the EPC if you had part numbers for them I could look it up.


·
Registered
Joined
·
3,712 Posts
Discussion Starter #12 (Edited)
st185 said:
This is a 3sgte? OEM toyota kit? I am kind of curious now. I have the EPC if you had part numbers for them I could look it up.
It's a factory gasket kit (dealer) supposedly for 3sgte (Toyota part #04111-74240) but I'm beginning to think that I have the wrong gasket kit because also the gasket for the turbo oil pipe only had 3 holes instead of 4? (TC 4 and TC8 in BGB). That would have blocked the oil feed line?


·
Registered
Joined
·
1,409 Posts
Mine came with them too. I didnt use them when i did a complete rebuild. I assumed they were for the oil/water pump.


·
Registered
Joined
·
1,409 Posts
Yea, I think they are for rebuilding the water or oil pump. I replaced both pumps with brand new, so i never opened up the old oil or water pump.


·
Registered
Joined
·
46 Posts
Ahh i think you guys are right, I was wondering why I didn't get those with my kit but then I rememberd I only got the gasket kit for the top end not the whole engine. The Oil pump seal does look like that, that pully unbolts. I replaced my pumps too. Have no idea how the water pump pully comes off.


·
Registered
Joined
·
824 Posts
fawker said:
they sorta look like water and oil pump front seals.

-Mike
-
-I agree with Mike here, when I replaced my timing belt, I also replaced the crank seal, oil pump shaft seal, cam seals, and others.
-I'd say one is for the oil pump shaft.
-I thought there was another similar shaft down there on the passenger side of the engine too, but I'm at work now and just can't recall what it was (?).


·
Registered
Joined
·
3,712 Posts
Discussion Starter #20 (Edited)
AndyV said:

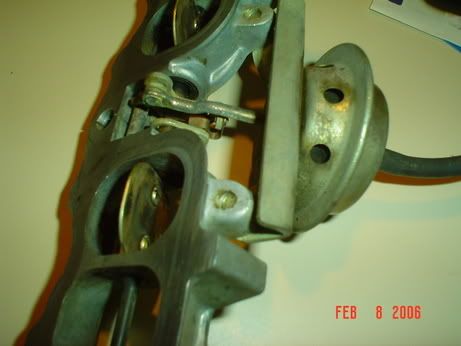

HINT : Take a look at your TVIS spacer with the shaft mounted butterflies.

HTH, Andy
Andy, I'm looking at it, but not seeing a place for these two seals. Can you explain it further?
EDIT: took an even closer closer look and I think I see them. Should these be replaced? Exactly what do the do? (what are the symptoms if you don't?).
