post #21 of 276 (permalink) Old February 28th, 2011, 09:25 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by walka
I got a quick pick of how my suspension is coming together.
I call them MV coilovers lol
Can't wait to see both sets painted! POR-15 to the rescue! It was really good to meet you both (walka and levi), it was fun fabbing stuff for a good purpose.
gtfour77 is offline
Sponsored Links
Advertisement

post #22 of 276 (permalink) Old February 28th, 2011, 09:37 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by Alex W
Interesting. I have been considering picking up the Moroso pan, but I did some searching on the forums and found virtually nothing regarding oil starvation on the 3S. I might have to put the pan on my short list of parts to get. Granted, I'm only running on sticky street tires, but even so it seems like good insurance.
It is definitely a good insurance. The problem is oil shear...I used to run the stock pan with regular Castrol oil (stock pan) for two or three years before my stroker build with no major issues. (still oil starvation but the Castrol handled the bearing much better than my recent switch to Mobil 1) At national level you'll have longer and faster sweepers and that's where the Moroso will do its job.

Here is my 09 Finale video (stock pan), check out the oil pressure gauge (top left of the triple gauge pod) on right hand sweepers...(1 o'clock is about 60psi, 9 o'clock is about 15psi)
http://www.youtube.com/watch?v=1JJ4AOfK-0k
gtfour77 is offline
post #23 of 276 (permalink) Old February 28th, 2011, 10:06
Registered User

Join Date: Mar 2006
Location: Bowie, MD
Age: 34
Posts: 2,477
OldTrader Rating: (17)
o crap it drops like you turned off the car lol
walka is offline
Sponsored Links
Advertisement

post #24 of 276 (permalink) Old February 28th, 2011, 12:20
Registered User

Join Date: Jul 2010
Location: Bay Area, CA
Age: 33
Posts: 588
OldTrader Rating: (8)
Quote:
Originally Posted by gtfour77
Well, I nearly killed all four of my rod bearings during the Prosolo Finale in 09. I know because I had the pleasure of watching the oil pressure gauge afterwards in my videos drop down to nothing during the long fast sweepers. I purchased the moroso pan right after. I think the pan is a must for hardcore autocross/track people.
Oh wow. I thought the stock pan is baffled and ready for that? Guess not? I will probably install some gauges in this car then. Thanks!
tigermack is offline
post #25 of 276 (permalink) Old February 28th, 2011, 13:07
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,616
OldTrader Rating: (120)
I see references on some sits to the Moroso "drag race" oil pan. There isn't more than one version is there?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car
Alex W is online now
post #26 of 276 (permalink) Old February 28th, 2011, 13:14 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by Alex W
I see references on some sits to the Moroso "drag race" oil pan. There isn't more than one version is there?

Not that I am aware of. Now apparently Moroso's first design was not perfected, they did redesign them later on and there is only one single design for the 3s AFAIK.
gtfour77 is offline
post #27 of 276 (permalink) Old February 28th, 2011, 13:17
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,616
OldTrader Rating: (120)
Thats what I thought, thanks.

Another thought on this subject: Has anyone measured how close the pickup sits to the bottom of the pan (either the stock pan or the Moroso one if its dfferent)? If its excessivly high it might be worth while to make a spacer to drop the pickup a little lower, get it submurged a little deeper in the oil.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car
Alex W is online now
post #28 of 276 (permalink) Old February 28th, 2011, 13:44 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by Alex W
Thats what I thought, thanks.

Another thought on this subject: Has anyone measured how close the pickup sits to the bottom of the pan (either the stock pan or the Moroso one if its dfferent)? If its excessivly high it might be worth while to make a spacer to drop the pickup a little lower, get it submurged a little deeper in the oil.

I actually did this measurement before I bought the Moroso pan and came up with "less than 1/4"...(more like 1/8")... the pick up is not the issue. The lack of baffling in the stock pan is definitely the culprit.
gtfour77 is offline
post #29 of 276 (permalink) Old February 28th, 2011, 13:59
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,616
OldTrader Rating: (120)
Quote:
Originally Posted by gtfour77
I actually did this measurement before I bought the Moroso pan and came up with "less than 1/4"...(more like 1/8")... the pick up is not the issue. The lack of baffling in the stock pan is definitely the culprit.
Yeah, I wasn't trying to suggest that moving the pickup would be the only solution required, only that it might be one additional level of protection that could be added. However, if its already only 1/4" or less I don't think there are any gains to be made in that area.
Alex W is online now
post #30 of 276 (permalink) Old February 28th, 2011, 14:03 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by Alex W
Yeah, I wasn't trying to suggest that moving the pickup would be the only solution required, only that it might be one additional level of protection that could be added. However, if its already only 1/4" or less I don't think there are any gains to be made in that area.
Of course, sorry, it came out sort of wrong on my end...
gtfour77 is offline
post #31 of 276 (permalink) Old February 28th, 2011, 17:09
Registered User

Join Date: Mar 2004
Location: LI, NY
Age: 42
Posts: 1,052
OldTrader Rating: (7)
Quote:
Originally Posted by gtfour77
Very very nice! What kind of power can you make with that engine? TQ? RPM? I know nothing about those...
Here is a dyno of a similarly equipped 2GR in a lotus elise. PS...I think I've worked the course while you were running at the DC Pro and that celica is a beast. Are you done racing it? It looked pretty competitive to me considering you were faster than the 240. Do you have any experience in an MR2?

Last edited by hotnickels; February 28th, 2011 at 17:25.
hotnickels is offline
post #32 of 276 (permalink) Old February 28th, 2011, 19:26
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,616
OldTrader Rating: (120)
OK, I finally got home from work and was able to watch the video of your oil pressure gauge. SCARY!! An oil pan is definitely on my list now.

I don't suppose you have any videos with the Moroso pan, just to "prove" that it works, or how well it works?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car

Last edited by Alex W; February 28th, 2011 at 21:03.
Alex W is online now
post #33 of 276 (permalink) Old February 28th, 2011, 21:14
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,616
OldTrader Rating: (120)
Quote:
Originally Posted by gtfour77
My personal SSM Autox build is coming along quite well, here are a few shots from this weekend's fabrication process:

Rear control arms are almost finished, did a lot of welding and adjusting...



And the final product, boxed with first coat of paint.


It's not your pretty tig welding but I think it'll work.


Most of the spacers are finally done too, can't wait to finish the trailing arms and put the pieces together.
Am I seeing that right that you have added spherical bearings to the outer ends of the control arms? Whats the reasoning behind that? I assume you are building a ball joint replacement stud of some sort, otherwise you would have tons of weird movement with the two pivots.
Alex W is online now
post #34 of 276 (permalink) Old March 1st, 2011, 08:17 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by Alex W
Am I seeing that right that you have added spherical bearings to the outer ends of the control arms? Whats the reasoning behind that? I assume you are building a ball joint replacement stud of some sort, otherwise you would have tons of weird movement with the two pivots.

That would be pretty interesting with the two pivot points...heh

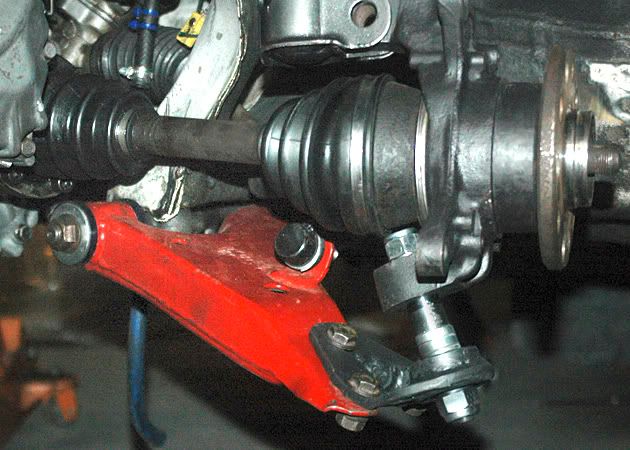

You got it, I am working on a stud setup right now, very similar to my alltrac RCA pictured here:

Whether it's going to work with the MR2 spindle is the question. Will be testing as soon as possible...

As far as videos after the pan install, I don't really have any on youtube right now. I did however do a test afterwards and it was much better. The pressure still drops slightly in hard right hand corners but nothing like the stock pan.
gtfour77 is offline
post #35 of 276 (permalink) Old March 1st, 2011, 09:26
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,616
OldTrader Rating: (120)
Quote:
Originally Posted by gtfour77
As far as videos after the pan install, I don't really have any on youtube right now. I did however do a test afterwards and it was much better. The pressure still drops slightly in hard right hand corners but nothing like the stock pan.
I guess thats better than nothing eh? A shame it doesn't fix it completly, but considering how long your motor survived with no oil pressure, I guess a little pressure drop on occasion isn't as big of a deal as you might expect.
Alex W is online now
post #36 of 276 (permalink) Old March 1st, 2011, 09:41 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by Alex W
I guess thats better than nothing eh? A shame it doesn't fix it completly, but considering how long your motor survived with no oil pressure, I guess a little pressure drop on occasion isn't as big of a deal as you might expect.
A dry sump will fix it 100%. heh But you are right, I don't think a little pressure drop will necessarily kill your engine. Like I mentioned before, I autocrossed a lot before without the pan and it was fine, or at least ok...I could definitely tell there was more wear than usual when I took the bearing out. Also, what about all those MR2's running in stock? They don't have any special pans. I think with proper oil level and good oil and oil changing habbits our cars will be fine. But it's always nice to have a little help preventing oil sloshing.

Last edited by gtfour77; March 1st, 2011 at 09:50.
gtfour77 is offline
post #37 of 276 (permalink) Old March 1st, 2011, 18:50
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,616
OldTrader Rating: (120)
Quote:
Originally Posted by gtfour77
That would be pretty interesting with the two pivot points...heh
You got it, I am working on a stud setup right now, very similar to my alltrac RCA pictured here:

Whether it's going to work with the MR2 spindle is the question. Will be testing as soon as possible...
Interesting. I can see why you would do that on the AllTrac since the ball joint is upside down from the way the MR2 is setup. I guess on the MR2 you do gain adjustability from it as well.
Alex W is online now
post #38 of 276 (permalink) Old March 2nd, 2011, 07:45 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by Alex W
Interesting. I can see why you would do that on the AllTrac since the ball joint is upside down from the way the MR2 is setup. I guess on the MR2 you do gain adjustability from it as well.
Yes, it's just a matter of figuring out a way to mount the stud to the spindle and make it strong enough to withstand the forces.

As an updated, just got started on the last control arm last night, full suspension is planned to be done and installed within the next two weeks. Engine is coming along nicely too, just a matter of assembling everything. (clearances are done, rings are gapped)

Alex (and others with built strokers), what ring gaps are you running if I may ask? I am running 0.019 on the top and about .024 or so on the second ring... (86.5mm CP strokers)
gtfour77 is offline
post #39 of 276 (permalink) Old March 2nd, 2011, 09:02
Registered User

Join Date: Mar 2004
Location: orlando
Age: 54
Posts: 283
OldTrader Rating: (0)
Any idea what your oil level was like when this was happening. One thought is to add more oil to the pan than normal to prevent this.
truebluemr2 is offline
post #40 of 276 (permalink) Old March 2nd, 2011, 09:10 Thread Starter
Registered User

Join Date: Sep 2004
Location: Carlisle, PA
Age: 41
Posts: 1,265
OldTrader Rating: (14)
Quote:
Originally Posted by truebluemr2
Any idea what your oil level was like when this was happening. One thought is to add more oil to the pan than normal to prevent this.

Always full, I check the oil very often during autocrossing.
gtfour77 is offline
