bolting in a cage

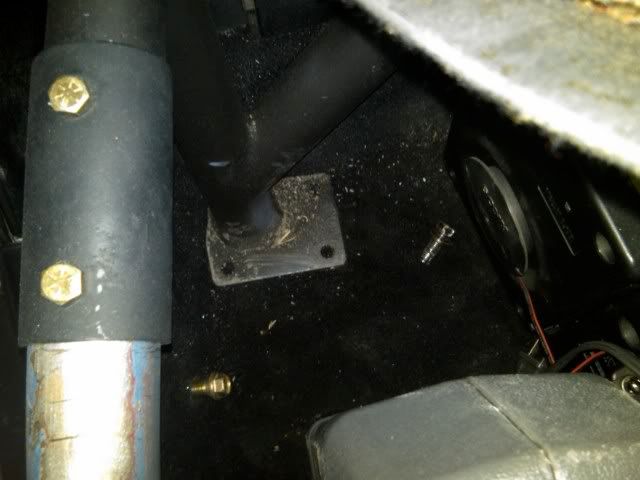

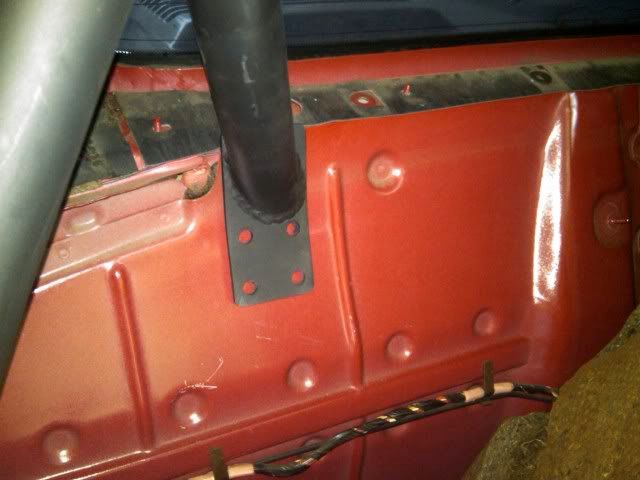

ok so i got my autopower roll cage in my car but i don't know what type of bolts to use to mount it to the fire wall an to the floor.



sweetmr2 is offline
Sponsored Links
Advertisement

post #2 of 19 (permalink) Old August 4th, 2010, 10:49
Registered User

Blurvision's Avatar

Join Date: Mar 2004
Location: Tuxedo, NY
Age: 33
Posts: 7,281
OldTrader Rating: (78)
Grade 8 bolts and washers, make sure to use a backing plate on the back side.
Blurvision is offline
post #3 of 19 (permalink) Old August 4th, 2010, 20:59
Lifetime Gold

javajoe79's Avatar

Join Date: Apr 2005
Location: Nashville, TN
Age: 39
Posts: 8,115
OldTrader Rating: (8)
Yeah grade 8 would be nice but honestly grade 5 is what alot of bolt ins come with. The mounts would rip out through the sheet metal before 8s or 5s would fail.
javajoe79 is offline
Sponsored Links
Advertisement

post #4 of 19 (permalink) Old August 4th, 2010, 23:38
Registered User

Join Date: Oct 2008
Location: Portland, Oregon, USA
Age: 45
Posts: 261
OldTrader Rating: (6)
FYI, Autopower has the backing plates available seperately. If you want to order those please send me a PM. They are not very expensive and are really what you need to install the kit properly. Also, Autopower kits ship with the grade 5 bolts, FYI.
Safe Drives is offline
post #5 of 19 (permalink) Old August 5th, 2010, 07:09 Thread Starter
Registered User

Join Date: Jul 2007
Age: 33
Posts: 573
OldTrader Rating: (13)
Quote:
Originally Posted by Safe Drives
FYI, Autopower has the backing plates available seperately. If you want to order those please send me a PM. They are not very expensive and are really what you need to install the kit properly. Also, Autopower kits ship with the grade 5 bolts, FYI.
what do the plates look like, i was just going to get the metal shop to make 6 of them, do you know how long the bolts need to be to go though the floor an the the ones though the fire wall? an i already put in grade 8 bolts in the kit.
sweetmr2 is offline
post #6 of 19 (permalink) Old August 5th, 2010, 10:39
Registered User

Join Date: Oct 2008
Location: Portland, Oregon, USA
Age: 45
Posts: 261
OldTrader Rating: (6)
Quote:
Originally Posted by sweetmr2
what do the plates look like, i was just going to get the metal shop to make 6 of them, do you know how long the bolts need to be to go though the floor an the the ones though the fire wall? an i already put in grade 8 bolts in the kit.
The plates mirror the top mounting plates. They will come with all of the holes pre-drilled in the correct spots. As for the bolt lengths, I have no idea.
Safe Drives is offline
post #7 of 19 (permalink) Old August 5th, 2010, 12:50 Thread Starter
Registered User

Join Date: Jul 2007
Age: 33
Posts: 573
OldTrader Rating: (13)
Quote:
Originally Posted by Safe Drives
The plates mirror the top mounting plates. They will come with all of the holes pre-drilled in the correct spots. As for the bolt lengths, I have no idea.
ok well if thats it i can get them made from the metal shop. thanks for the help
sweetmr2 is offline
post #8 of 19 (permalink) Old October 27th, 2010, 20:41
Registered User

Join Date: Feb 2006
Location: San Antonio, TX
Age: 35
Posts: 427
OldTrader Rating: (13)
is this a 4 point or 6 point or 8 point cage? chromemoly??

any more pic of it in the car?

Im thinking of getting one for my mr2. Just wanted to see what option are out there?
KraziJdmMr2 is offline
post #9 of 19 (permalink) Old October 30th, 2010, 12:32
Registered User

Join Date: Oct 2008
Location: Orlando, Fl
Age: 37
Posts: 3,958
OldTrader Rating: (160)
Quote:
Originally Posted by KraziMike5
is this a 4 point or 6 point or 8 point cage? chromemoly??

any more pic of it in the car?

Im thinking of getting one for my mr2. Just wanted to see what option are out there?
Ditto
holymr2 is offline
post #10 of 19 (permalink) Old November 1st, 2010, 15:24
Registered User

Join Date: Mar 2004
Location: Houston, TX
Age: 37
Posts: 3,069
OldTrader Rating: (7)
You'd be better off having something made my a quality cage shop locally. Kits usually cut corners for ease of assembly and cost reasons which leaves them ending up not very tight against the roof and sides of the car. If you're really short you probably won't notice, but...

- KB, who has a kit-based cage in the race car he bought (came that way) and is growing very tired of constantly having his head touching the cage padding
kbrew8991 is offline
post #11 of 19 (permalink) Old November 1st, 2010, 15:31
Registered User

Join Date: Oct 2008
Location: Portland, Oregon, USA
Age: 45
Posts: 261
OldTrader Rating: (6)
Quote:
Originally Posted by kbrew8991
You'd be better off having something made my a quality cage shop locally. Kits usually cut corners for ease of assembly and cost reasons which leaves them ending up not very tight against the roof and sides of the car. If you're really short you probably won't notice, but...

- KB, who has a kit-based cage in the race car he bought (came that way) and is growing very tired of constantly having his head touching the cage padding
Hi,

How many different cars and roll cage kits have you had experience with?
Safe Drives is offline
post #12 of 19 (permalink) Old November 15th, 2010, 03:19
Registered User

Join Date: Mar 2007
Location: Seattle, Washington
Age: 37
Posts: 2,303
OldTrader Rating: (1)
Safe, do you sell something for RHD cars?
qmtran is offline
post #13 of 19 (permalink) Old November 15th, 2010, 10:41
Registered User

Join Date: Oct 2008
Location: Portland, Oregon, USA
Age: 45
Posts: 261
OldTrader Rating: (6)
Quote:
Originally Posted by qmtran
Safe, do you sell something for RHD cars?
Sure, just make it very clear when you order that it is for RHD.
Safe Drives is offline
post #14 of 19 (permalink) Old November 15th, 2010, 16:14
Registered User

Join Date: Mar 2004
Location: Houston, TX
Age: 37
Posts: 3,069
OldTrader Rating: (7)
Show us some pictures of the kits you offer for the MR2

the one in my car currently isn't nearly as good as having one done from scratch locally - main halo too low, too close to your head, rear main hoop too low. All of that with the idea to have it be able to actually fit inside the car for easy bolt together assembly. Ugh!

I'd love to be able to recommend a good kit for this car... haven't seen one yet. Not Kirk and not Autopower for certain. Having a roof curved in multiple planes is a real pain to tackle. Show us what you offer that works better or I'll have to just keep recommending someone seek out a quality local fabricator as their only decent option.

Last edited by kbrew8991; November 15th, 2010 at 16:21.
kbrew8991 is offline
post #15 of 19 (permalink) Old November 15th, 2010, 16:51
Registered User

Join Date: Oct 2008
Location: Portland, Oregon, USA
Age: 45
Posts: 261
OldTrader Rating: (6)
A properly installed, weld in (custom or not) roll cage is always going to be safer than a bolt in. But for sure, bolt in should be better than no roll bar or cage at all. Any roll bar or cage should always have proper SFI or FIA padding anywhere that a human head could even remotely possibly hit the tube in an accident, helmets or not.

Safe Drives offers kits from Autopower and from S&W that fit the MR2. S&W only has kit for sw20. Autopower has been doing bolt in cage kits for 37 years. The prefabricated MR2 kits are not perfect, but they are better than nothing, asuming proper installation and padding. Lets face it, the MR2 interior space is not ideal for humans and roll cage tube to both occupy. I rally raced an AW11 for two years. My rally MR2 had a custom cage, even then my helmet touched the roll cage tube.

In my opinion, I think the Autopower Race Roll Bar is a good kit if you want to have race harnesses in a street car / track day car (always with proper SFI or FIA padding anywhere that a human head could even remotely possibly hit the tube in an accident). So often on the internet we see harnesses installed improperly..
Safe Drives is offline
post #16 of 19 (permalink) Old November 15th, 2010, 16:58
Registered User

Join Date: Oct 2008
Location: Portland, Oregon, USA
Age: 45
Posts: 261
OldTrader Rating: (6)
My second stage rally car I built was a 1995 Impreza. This car had much more head room and I felt a lot safer in it. In rally, we worry most about 40MPH trees hitting drivers doors at right angles. In that scenario a MR2 is probably just as safe as an Impreza...but I felt safer in the Impreza... (The MR2 was way more fun to drive though!)
Safe Drives is offline
post #17 of 19 (permalink) Old November 15th, 2010, 17:03
Registered User

Join Date: Mar 2004
Location: Houston, TX
Age: 37
Posts: 3,069
OldTrader Rating: (7)
fair enough, I'll concur with that
kbrew8991 is offline
post #18 of 19 (permalink) Old November 26th, 2010, 23:45
Registered User

bigbird4120's Avatar

Join Date: Feb 2008
Location: Gainesville, Georgia
Age: 70
Posts: 294
OldTrader Rating: (9)
S&W cage kit?

So Safe, I looked at your website and saw no S&W products. However I did like the package deals on cages with seats and harnesses.

Now I'll be seeing kbrew at Road Atlanta next weekend(I'll be the one waving different colored flags in his general direction), so I can see an installed Autopower unit. At least I think I remember him posting that his is an Autopower one. Of course seeing the car assumes that all kbrew's adoring NASA-SE fans leave him alone long enough to talk to me. All that being said, it'd be great to have another source to cage my Mk II track car when I can get the funds. Maybe by next track day at RA.
bigbird4120 is offline
post #19 of 19 (permalink) Old April 13th, 2019, 22:20
Registered User

Join Date: Mar 2017
Posts: 11
OldTrader Rating: (0)
I need 10 posts in order to see pictures

I need 10 posts in order to see pictures
Tesla is offline
