MKII Suspension Analysis: Lowering, 91vs93, Graphs, ect

12/29/07: Added analysis for the front, see this thread


EDIT DEC 10th: Replaced 93 graphs with graphs using 93 crossmember dimensions supplied by twoina2. Rescaled Y axis on all toe graphs. For refrence, I run roughly .1" of toe in on my 91, so the max toe changes we see in roll for either suspension are roughly 10% of the total toe. Comments related to the reacent edit are shown in blue.


I have been doing a lot of work these last couple of weeks with a suspension analysis program called Optimum K on our Formula SAE car. If anybody else wants to try it out they have a free fully functional demo available, only limitation is you can't save.

I decided to try to analyse the MR2 Suspension, hopefully I can shed some real light on the age old debates about the differences between the 91 and 93 suspensions, the effects of lowering, ect. At this point I have only analysed the rear, and I wouldnt exactly call it a "full" analysis, but I think its a good starting point.

Please note:
1). I got the input data from my own car and a tape measure, so accuracy is +-1/4" maybe. That being said, these results arn't perfect, and shouldnt be used as the final word, especially where the exact values are concerned. However, they should be good enough to spot trends and get a general idea.

2). The 93 is assumed to have a 1/2" lower ride height than the 91. The lowering ammounts are based off of my car with Tien S-techs, and added onto from there to approximate the heights for a more modest spring, the 93 stock springs, and the 91 stock springs.

3). The body roll used is to the right. AKA, the car is in a left hand turn. Therefore, the right wheel is the outside wheel, the really important one. The outside (right) wheel is the dashed line on the graphs. The inside (left) is the solid line.

4). Heave (vertical chassi motion) is defined positive up, negative down.

5). I analyzed 3 different ride heights. Stock (Green), a modest lowering spring such as the Pro Kit or the TRD (Blue), and a more extreme drop such as the S-Tech, the Sportline, or an aggressive coilover drop (Red). This coloring scheme is used throughout.

Now, some results.

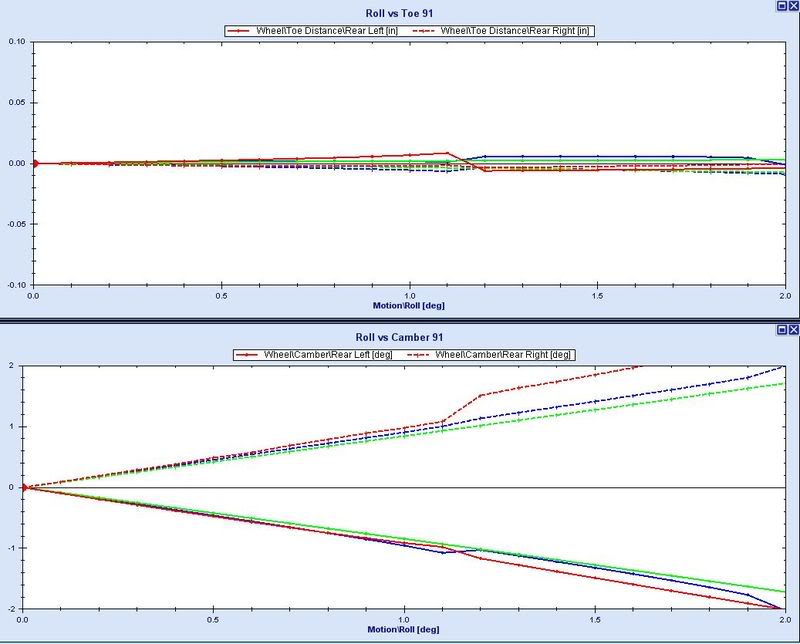

First, the 91 suspension in roll. On the lowered graphs you will notice that the curve "freaks out". This is due to extreme roll center migration, to the point that the program doesn't know what to do with it. Basically, ignore the plots after about 1* of body roll. Because of this I think that anyone lowering with performance in mind should STRONGLY consider stiffer sway bars as well, to limit body roll and keep the roll center under the chassis.

One thing to note is that lowering has very little impact on camber curves (which, for what its worth, pretty much suck). Moderate lowering has minimal effect on toe characteristics, however extreme lowering really makes the toe go nuts. I'm not sure if it was the rescale or if I did something different this time, but lowering, even extremely, does not seem to have as big of an effect anymore. If it was a change in my method I believe it to be for the better, as this time I actually setup different models for each state of lowering instead of adjusting the same model over and over. Much less chance for error, hopefully.

Next, the 93 in roll. Again ignore the curves past about 1* of roll. The choppy graph is due to the roll center migrating far outside of the cars wheel base, causing the program to produce errors.

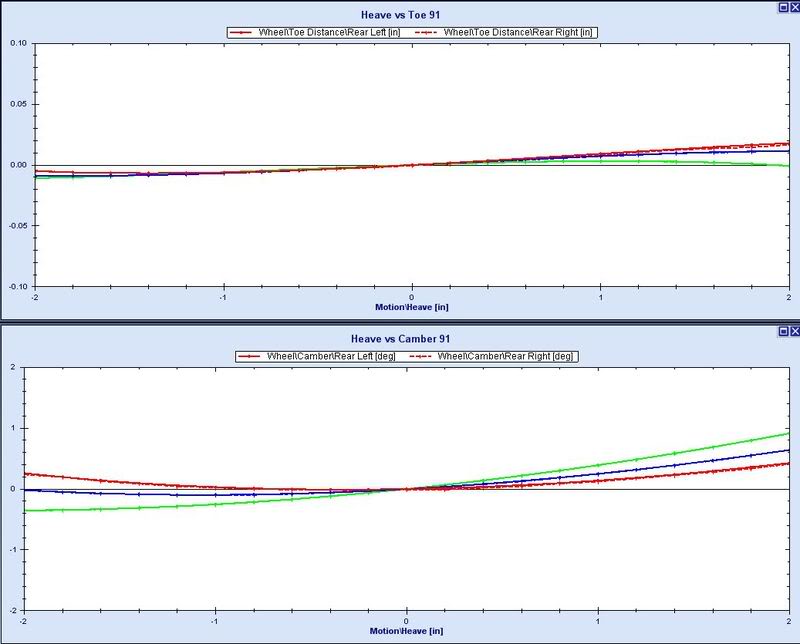

Heres the 91 in heave.

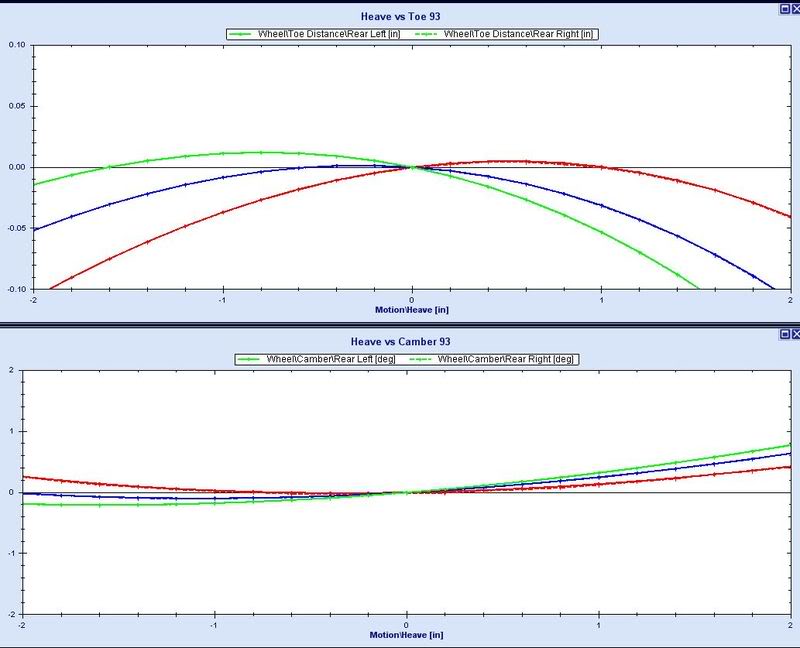

And the 93 in heave.


The heave characteristics are much less interesting, IMHO, although they do show the increased toe in character of the 93.

Some new analysis: Neither rear suspension changes toe MUCH in roll. Both maintain nearly constant toe. The 91 still responds less drastically to lowering, however the change suggested by twoina2 severely reduced the negative impact of lowering on the 93.

It appears now that at stock ride height the 93 toes in on the inner wheel and out on the outer wheel, effectively causing slight oversteer. Severe lowering reverses this, effectively limiting oversteer. The changes are very slight however, maybe not noticeable.

Stock the 91 appears to toe in the outer wheel and toe out the inner wheel (VERY SLIGHTLY). Lowering the 91 has even less impact than on the 93, although in the 91's case extreme lowering should slightly increase the tendency toward oversteer, as it makes the outside wheel toe out slighly more and the inside toe in slightly less than stock.

In conclusion, I might reverse my statement about lowering. The effects on toe characteristics appear to be minor, such that a little bit of static toe in can easily compensate. However, the issue of roll center migration is still present, and should be mitigated by larger sway bars on lowered cars.


SO! Discuss, rip apart my methods, tell me what else to test, tell me what I missed, whatever. I just hope the community can benefit from this in some way. The more thoughtful discussion we have on the topic the better.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car

Last edited by Alex W; June 7th, 2018 at 08:19.
Alex W is offline
Sponsored Links
Advertisement

post #2 of 99 (permalink) Old December 4th, 2007, 09:28
Registered User

Join Date: Aug 2005
Location: Issaquah, WA
Age: 49
Posts: 4,270
OldTrader Rating: (15)
So I'm not very familiar with these graphs. So here's my feable attempt to analyze them.

I don't get what the difference of these two graphs are. (graph 1 vs 3 and graph 2 vs 4)



Also, are you just comparing ride heights? How does spring rates factor into this? Also, since you are analyzing the rear, have you taken measurements on a '91 and '93 x-member?

Were you able to do the fronts?
traffic is offline
post #3 of 99 (permalink) Old December 4th, 2007, 09:46 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
Graph 1 and 2 are the 91 suspension at three different ride heights. Graph 3 and 4 are the 93 at three different heights. The 93 is just my best estamate of the 93, based on looking at pictures of the crossmembers. Should be really close. The length of the tie rods is the only difference.

Spring rate and anti roll bar stiffness effect how much the suspension moves, but not what happens when it moves. The actual motion is simply a kinematics problem, which is what this program does. You input 2* of body roll, and it tells you how the suspension responds.

At this point, yes I am just comparing the effects of various ride heights on each style of suspension. I could obviously compare all sorts of things such as relocating suspension pickups, but those are not things we have much control over, so there isnt much point.

I have not gotten arround to doing the front yet, although I plan to at some point.
Alex W is offline
Sponsored Links
Advertisement

post #4 of 99 (permalink) Old December 4th, 2007, 10:16
Registered User

Join Date: Aug 2005
Location: Issaquah, WA
Age: 49
Posts: 4,270
OldTrader Rating: (15)
Quote:
Originally Posted by Alex W
Graph 1 and 2 are the 91 suspension at three different ride heights. Graph 3 and 4 are the 93 at three different heights. The 93 is just my best estamate of the 93, based on looking at pictures of the crossmembers. Should be really close. The length of the tie rods is the only difference.

Spring rate and anti roll bar stiffness effect how much the suspension moves, but not what happens when it moves. The actual motion is simply a kinematics problem, which is what this program does. You input 2* of body roll, and it tells you how the suspension responds.

At this point, yes I am just comparing the effects of various ride heights on each style of suspension. I could obviously compare all sorts of things such as relocating suspension pickups, but those are not things we have much control over, so there isnt much point.

I have not gotten arround to doing the front yet, although I plan to at some point.
Thanks for the clarification. I will have to pull this up during my lunch break and stare at it for a while!

Is there a way you can just model the entire range of motion (toe and camber) with a single line?

Since spring rates are not a factor and it looks like you can just have a larger range of motion and we are just comparing relative changes in toe and camber, then it may be a bit more easier to read. Take the roll out of the equation for this particular graph. I'm assuming that with each spring, as you take a corner, you will be nearly bottoming out with any of the springs.

Ah, it's too early in the morning. I don't know what I'm talking about. Maybe I can come back later...
traffic is offline
post #5 of 99 (permalink) Old December 4th, 2007, 11:16 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
Quote:
Originally Posted by traffic
Thanks for the clarification. I will have to pull this up during my lunch break and stare at it for a while!

Is there a way you can just model the entire range of motion (toe and camber) with a single line?

Since spring rates are not a factor and it looks like you can just have a larger range of motion and we are just comparing relative changes in toe and camber, then it may be a bit more easier to read. Take the roll out of the equation for this particular graph. I'm assuming that with each spring, as you take a corner, you will be nearly bottoming out with any of the springs.

Ah, it's too early in the morning. I don't know what I'm talking about. Maybe I can come back later...
The problem is suspension performance is more complicated than that. I can't take roll out of the equation, because as the graphs show, the suspension behaves very differently in roll than it does in straight heave.

If you look at the graphs you will see that lowering the car has minimum effects on the character of the suspension in heave. Examples of this include going over a rise, hitting a bump mid corner, hitting the brakes mid corner, ect. Anything that causes a plain verticle motion of the suspenion.

Body roll, taking into account moving roll centers and all that, becomes much more complicated, and this is where lowering has an impact on the toe changes.

For example, notice on the 91 roll graph. The stock height causes roughtly equal (and very linear) toe changes with roll. The outside wheel toes in, the inside wheel toes out, effectivly steering the rear toward the inside of the turn, limiting oversteer. Lowering 1" has minimal effect on this. However, when lowered past that the toe in of the outside wheel is much reduced, which should cause more oversteer on a lowered car.

The 93 reacts even more strongly to lowering, with even 1/2" of drop significantly changing the toe curves. However, you will notice that the 93 stock appears to behave oppositly to the 91, with the outside wheel actually toeing OUT slightly. It is possible that this is due to my model not being completly accurate (as mentioned before, it should be close). However, it leads us to question exactly WHY the 93 is more stable / "safer" than the 91, when based on toe changes it should oversteer more. I think to answer that we need to look at the toe change in heave, where we see that lifting of the rear (braking) on the 91 actually causes it to toe out slightly (again due to inacuracies in my model, it is possible the 91 is closer to static toe than to toe out, in fact I think this may be the case), whereas the 93 toes in as the rear of the chassi lifts.
Alex W is offline
post #6 of 99 (permalink) Old December 4th, 2007, 11:19 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
I suppose the best thing I can do here is say what I plan to do, based on what I have seen here. First, I had considered swapping the to the 93 crossmember, but now I don't think so. The 91 handles lowering much more gracefully, IMHO, and just in general has characteristics I like better. Second, I will be switching to some springs with a bit less of a drop, and a higher rate, maybe RS*R. And 3rd, getting some sway bars (already planned on that) to limit body roll and prevent that huge roll center migration that I am seeing with the car lowered.
Alex W is offline
post #7 of 99 (permalink) Old December 4th, 2007, 13:10
Registered User

Join Date: Mar 2004
Location: San Diego, CA
Age: 42
Posts: 3,239
OldTrader Rating: (21)
Alex,

Nice work. I think your graphs (at least in heave) confirm what we've discussed about the differences. I would stress (as you have suggested) that accuracy in measurements is key to getting meaningful results. But it looks like things are going in the right direction.

The 91 should see very little toe change. The 93 should see toe IN under all conditions other than ride height. It makes sense that if you lower the car 1", it's going to toe out for the first inch of lift until it gets back to stock ride height, then it will begin to toe back in.

Camber should be the same for both cars, and it looks like it is.

One thing you might consider is keeping the magnitude of your Y axis constant. The charts look like we're seeing big swings in some cases, but it's actually just a function of the Y axis units.

Now is when things get fun. Start playing with roll centers. As a starting point, consider moving the outboard pickup for both the LCA and tie rod downward the same amount that you've lowered the car from stock. I'd try both 1" and 2".

Next, move the top of the strut inboard about 2" (the camber plate) and adjust camber back to zero at the strut/knuckle interface. See how this effects the camber curve and roll center migration.

I've done a lot of this modeling, but it's neat to see someone do it using a different program. There are definitely things we can do to make the suspension work when lowered, they just require some creativity and some tricky fabrication.

Nice work.
rnoll98 is offline
post #8 of 99 (permalink) Old December 4th, 2007, 16:13 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
Thanks randy.

You are correct about the scaling. Somehow I didn't notice that, for some reason I thought I had them the same. Basically, toe changes from roll are about an order of magnitude smaller than toe changes from heave. For easier comparison I will rescale those graphs when I get a chance.

A quick look at the 91 heave model / calculations has led me to believe that I did have a slight measurement / entry error that gave the 91 the toe out characteristic in heave. I think it really is supposed to be nearly 0 toe change in heave for the 91. This change might also have an impact on the roll, so I will probably recreate those graphs when I am working on it later.
Alex W is offline
post #9 of 99 (permalink) Old December 4th, 2007, 18:08
Registered User

Join Date: Mar 2004
Location: San Diego, CA
Age: 42
Posts: 3,239
OldTrader Rating: (21)
You should have this thread moved to the AEF - Suspension and Chassis forum to isolate it from the "what coilovers should I buy?" threads. That forum could use a little action other than the misplaced "what coilovers should I buy?" threads.
rnoll98 is offline
post #10 of 99 (permalink) Old December 4th, 2007, 20:59
1994 SMG N/A

1ofthesedays's Avatar

Join Date: Mar 2004
Location: San Diego, CA
Age: 33
Posts: 3,145
OldTrader Rating: (14)
Interesting. I'll have to bookmark this and complete the read when I have more time.
1ofthesedays is offline
post #11 of 99 (permalink) Old December 7th, 2007, 00:25
Registered User

Join Date: Mar 2004
Location: Houston, TX
Age: 37
Posts: 3,069
OldTrader Rating: (7)
Quote:
Originally Posted by rnoll98
You should have this thread moved to the AEF - Suspension and Chassis forum to isolate it from the "what coilovers should I buy?" threads. That forum could use a little action other than the misplaced "what coilovers should I buy?" threads.
well, that is becoming an easy question to answer these days

subscribing....
kbrew8991 is offline
post #12 of 99 (permalink) Old December 7th, 2007, 09:01 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
Sorry for the lack of updates and new work on this, I have been absolutly swamped with finals and finishing my senior project and all that. But its 95% over now, so hopefully this weekend I can do some more on this...

I will probably leave it here (as it is MKII based) untill it kinda dies a bit and drops off the front page, then have it moved to the AEF forum (thanks for that sugestion by the way, I had forgotten about those forums).
Alex W is offline
post #13 of 99 (permalink) Old December 7th, 2007, 13:49
Registered User

Join Date: Mar 2004
Location: Los Angeles
Posts: 2,286
OldTrader Rating: (1)
Its always great when another member of the MR-2 community takes a serious look at this stuff.

Looking at my notes, the '93 rear ride height is 0.38" lower per the BGBs -- 7.61" i/o 7.99" as measured at the lower arm inboard pivots. The rear arms are 4" longer, 18.5" i/o 14.5", and the inboard pivot for the rear arm is 1/8" lower relative to the chassis.

Mike R
twoina2 is offline
post #14 of 99 (permalink) Old December 7th, 2007, 14:47 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
Quote:
Originally Posted by twoina2
Its always great when another member of the MR-2 community takes a serious look at this stuff.

Looking at my notes, the '93 rear ride height is 0.38" lower per the BGBs -- 7.61" i/o 7.99" as measured at the lower arm inboard pivots. The rear arms are 4" longer, 18.5" i/o 14.5", and the inboard pivot for the rear arm is 1/8" lower relative to the chassis.

Mike R
Excellent. Getting other peoples measurements on this sort of thing should allow me to improve the accuracy of my results.

Edit: A couple of thoughts on this... The stock 93 tire is .2" taller than the 91, so that means with the same spring the 93 is .1" higher in ride height, so add that to the .38 difference and the spring difference becomes almost exactly .5"

Second, my 245/40-17 that was on the car when I measured is 1" taller than the stock 91 tire. I measured my control arm inboard pickup to be 6.75 off the ground. Subtract 1/2 inch for the tire difference, and then add 1.75" (the approximate S-tech lowering ammount) and you are right back at the stock 8" ride height. So that means that all of my previously posted 91 numbers should be fairly accurate. I will recheck the 93 stuff with the new tie-rod measurements. Shouldnt change it much.

Last edited by Alex W; December 8th, 2007 at 16:00.
Alex W is offline
post #15 of 99 (permalink) Old December 10th, 2007, 10:03
Registered User

Join Date: Mar 2004
Location: Los Angeles
Posts: 2,286
OldTrader Rating: (1)
Quote:
Originally Posted by Alex W
Edit: A couple of thoughts on this... The stock 93 tire is .2" taller than the 91, so that means with the same spring the 93 is .1" higher in ride height, so add that to the .38 difference and the spring difference becomes almost exactly .5"
Good point.
twoina2 is offline
post #16 of 99 (permalink) Old December 10th, 2007, 18:22 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
Had a chance finally to do some more work on this. First, I tried the new numbers for the 93 rear that twoina2 had posted. Found something interesting.

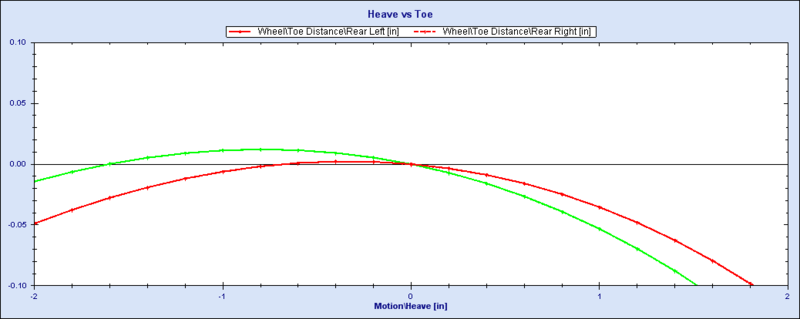

These are the toe graphs for heave and camber comparing his number, which states that the toe bar pickup is 1/8" lower than it is on the 91 (Green line) with my original guess which was that it was in the same verticle plane (red line). I don't know which is correct, the green line seems to me like a strange way to design a car, but then again I have never measured a 93 crossmember, so I dont know.

Basically, the green line says that the inside wheel toes in and the outside wheel toes out (oversteer) and that it toes out initially on uniform compression.



As always, draw your own conclusions, and let me know what you think. Untill I know otherwise I will be using twoina2's numbers, as I have never personally come anywhere near a 93 crossmember.

First post edited with more / revised info.

Last edited by Alex W; November 9th, 2018 at 08:52.
Alex W is offline
post #17 of 99 (permalink) Old December 10th, 2007, 19:45 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
At Randy's sugestions, I did a couple of tests on the effects of RCA's (Roll Center Adjusters) and camber plates.

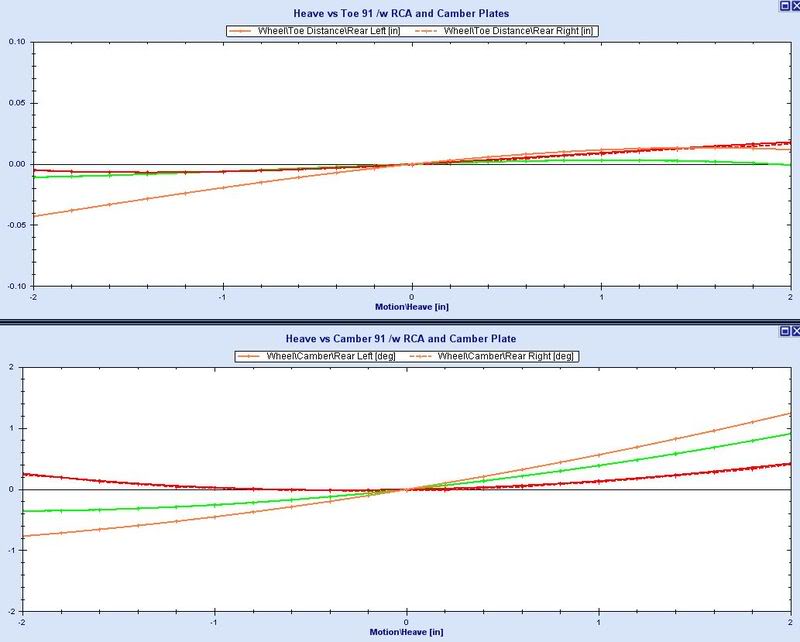

I ran the 1.75" lowering with the addition of a 1.75" RCA. I am not going to post those graphs, because they were exceptionally un-interesting. Essentially, the two curves were directly overlayed. SO!! If we had roll center adjusters for both the control arms and toe rods we could lower without effecting the geometry AT ALL.

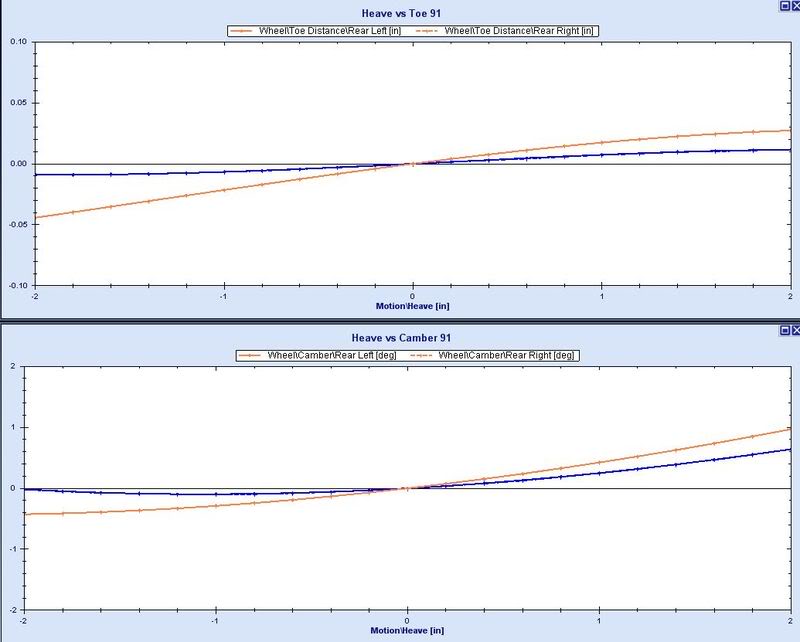

Next, the camber plates, moving the strut top in 2" per side. These shows a 91 with 1" lowering with (orange) and without camber plates (blue). As you can see, the effects on camber gain are minimal, if that's your reason for getting them they aren't worth it, IMHO. The toe changes were exaggerated with the camber plates. The roll center migration was improved significantly, but certainly not fixed.

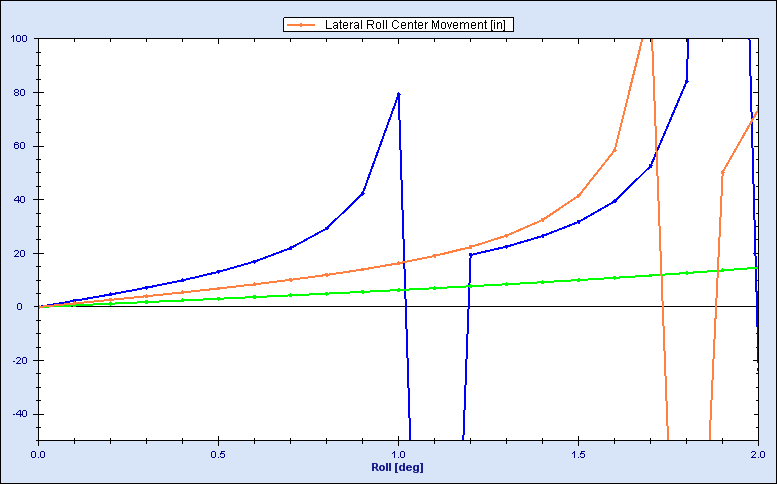

I do now have hard numbers on roll center migration. This graph shows lateral movement of the roll center vs body roll. Again, green is stock, blue is 1" lowering, orange is 1" lowering with camber plates moving the strut top 2" inboard.



The spiking is obviously not real, it is program artifacts caused by the extreme movement. It does however show how quickly the movement ramps up as body roll increases.

WE NEED ROLL CENTER ADJUSTERS!!!

Last edited by Alex W; November 9th, 2018 at 10:11.
Alex W is offline
post #18 of 99 (permalink) Old December 10th, 2007, 23:22
Registered User

Join Date: Mar 2004
Location: San Diego, CA
Age: 42
Posts: 3,239
OldTrader Rating: (21)
Alex,
Show the 1.75" of lowering with and without the RCA's. It gets much more interesting I think. The importance is shown here. Lots of things go south with that much lowering and no RCA.

Also, show the 1.75" of lowering with the RCA's and the camber plates vs. just 1.75" of lowering and stock suspension. What you should see is that both the RCA and the camber plates contribute a little to a better camber curve.

We're working with struts here, so don't expect a lot. You still have to run fairly stiff springs to keep from rolling out of the sweet spot, but if you can make the sweet spot a little wider I think you get some wins. On top of that, the rear suspension is very vertical vs the front. I think the front has a better camber curve to begin with and also can benefit from the RCA and camber plate game. I'll try and dust off my program this week and post some of my numbers.
rnoll98 is offline
post #19 of 99 (permalink) Old December 11th, 2007, 00:40 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 34
Posts: 12,540
OldTrader Rating: (120)
Ok. First of all, 1.75" lowering, with (black line) and with out (red) roll center adjusters. Notice it looks the same as the 91 stock vs 91 lowered 1.75" curves. The RCA's bring you right back to stock characteristics.

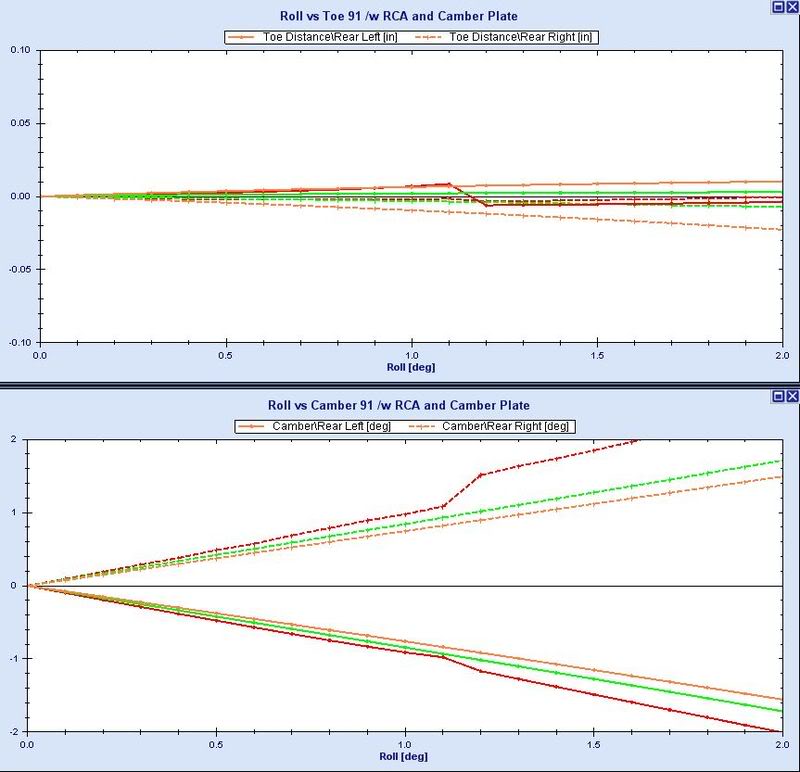

Next the 91 lowered 1.75" with RCA's and camber plates. The difference you see is entirely due to the camber plates, as the RCA's bring the curve back to stock, and then the camber plates improve the camber slightly (in roll), and exaggerate all toe movements slightly. As always, green is stock, red is lowered, and orange is lowered with corrections (RCA's and Camber plates).




I will agree the camber plates help, but not nearly as much as the RCA's, and if I had to chose one it would be an RCA every single time. The camber plates alone dont even come close to fixing the roll center migration.

Last edited by Alex W; November 9th, 2018 at 08:54.
Alex W is offline
post #20 of 99 (permalink) Old December 11th, 2007, 05:18
Registered User

Join Date: Mar 2004
Location: Hella Norcal
Age: 35
Posts: 21,388
OldTrader Rating: (22)
it looks to me like the big problem is the lack of camber under roll.. on paper and in practice.

to get a good handling mr2 you have to run so much camber it destroys the inside of your tire, and straight line suffers. ideally, you'd want much much less camber and have a fantastic amount under roll.. this should also give you better straight line traction and real world faster times.

when i lowered/stiffened my car i didnt think for a second that i lost any particular good handling trait. i have cursed the crappy camber curve many times though. im just wondering if you went through the hassle of correcting all the roll centers and getting that inline.. if you'd genuinely have a faster car.
TomsMR2 is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the MR2 Owners Club Message Board forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: (0 members)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
