post #61 of 345 (permalink) Old February 5th, 2011, 16:12
XVRacing
click here to visit the sponsor page

Its Turbo Time's Avatar

Join Date: Jun 2004
Location: Jersey
Posts: 2,369
OldTrader Rating: (21)
Very cool, nice work man! I have to start playing around with it too, Id like to see how my engine lid compares to the stocker


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

XVRacing Carbon Fiber and Fiberglass Vented Motorlids are back! For Groupbuy
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Its Turbo Time is offline
Sponsored Links
Advertisement

post #62 of 345 (permalink) Old February 6th, 2011, 11:26
MR2OC Founder

Bill Strong's Avatar

Join Date: Sep 1999
Location: Lovingston, Va
Age: 56
Posts: 42,296
OldTrader Rating: (122)
Quote:
Originally Posted by Raising Arizona

As I watched the Rolex 24 this past weekend all the DP (prototype) cars had the square'd off backends as discussed above. Very unfinished, very racey looking, which I like. Looking at the GT2 and GT3 cars, there stock and round (RX-8, F430, 911, etc. and appear to run the track just fine. There's nothing square about a 911.

I think a lot of the issue is that the rules dictate what they can do to the body. A few years back touring cars were the pinnacle of aero design on production based cars. But to reduce out of hand development costs, they restricted what you could do to the body panels. That is why BTCC cars run very little aero stuff, they did allow basic things like uselessly small wings just to give the cars a racy look for the fans, but otherwise they are basic.
Now look at the DTM series. Totally different look to the cars.
http://speedhunters.com/archive/2008...-dtm-race.aspx
Bill Strong is offline
post #63 of 345 (permalink) Old February 7th, 2011, 19:20
Registered User

Join Date: Jun 2005
Location: NW metro...
Age: 52
Posts: 4,057
OldTrader Rating: (8)
Quote:
Originally Posted by Bill Strong
I think a lot of the issue is that the rules dictate what they can do to the body. A few years back touring cars were the pinnacle of aero design on production based cars. But to reduce out of hand development costs, they restricted what you could do to the body panels. That is why BTCC cars run very little aero stuff, they did allow basic things like uselessly small wings just to give the cars a racy look for the fans, but otherwise they are basic.
Now look at the DTM series. Totally different look to the cars.
http://speedhunters.com/archive/2008...-dtm-race.aspx
watch the DTM's and BTCC alot and your very right. The DTM's have all those rear aero's going from the rear fender to the back and rear diffuser, actually the entire car. I'd love to buy a C300 sport and trick it out like that. Love'm....anyway, I'm really looking forward to testing my rear diffuser/vert TMIC. Should be intersting to see if my guessing actually works. Hmmmmmm
Raising Arizona is offline
Sponsored Links
Advertisement

post #64 of 345 (permalink) Old February 11th, 2011, 15:39
Registered User

Join Date: Oct 2006
Location: Ga.
Age: 33
Posts: 685
OldTrader Rating: (2)
Couple thoughts:
~How difficult would it be to seal the area under the radiator with underbody panels and redirect the air originally flowing downward to the front wheel brake area via air ducts?
-Would that create an airflow bottleneck at the radiator?

~The low pressure area that forms behind the rear glass could be improved with a downward spoiler near the third brake light to make the air flow smoothly down over the engine lid instead of forming vortexes. Think of the SUVs and hatchbacks that have spoilers over the hatchback glass to direct air down the back of the car.
Seems like the only other option is louvers or some kind of sloping hatch.

Last edited by mcmr2; February 11th, 2011 at 15:41.
mcmr2 is offline
post #65 of 345 (permalink) Old February 13th, 2011, 13:39
Registered User

Join Date: Mar 2004
Location: Berzekely, CA
Posts: 424
OldTrader Rating: (19)
Your studies of the radiator area interest me. Air sems to enter the cavity and then bottle up behind the radiator before being pushed out under the car. This would seem to cause lift.

Instead of venting air out of the top, what if you diverted the air to the sides (add a lower air dam). This would create a negative air pressure under the radiator, increase downforce, and draw air through the radiator.

I am no expert on fluid dynamics, so excuse me if I am out in left field.

I am surprised to see drag coefficient at .36. With it's low profile and smallish frontal area I would expect better. It seems like we should be closer to the magic number of .29.

Your studies are great by the way, keep up the good work.

Last edited by MRT2; February 13th, 2011 at 14:36.
MRT2 is offline
post #66 of 345 (permalink) Old February 21st, 2011, 15:53
Registered User

Lancebringer's Avatar

Join Date: Oct 2008
Location: NAWS China Lake
Age: 31
Posts: 1,967
OldTrader Rating: (19)
I need to get Solid works.
I need to see what massive reduction this yields.


Radiator butted up against firewall.
hole behind radiator cut out.
Ducting made behind radiator to vent out of the hood (drift style hood)
Ducting made with the bumper to prevent air from going anywhere but through the radiator (simple task all of these)
Flat underbody from the front back to the engine bay.
NACA Ducts for the engine bay.
Rear Diffuser with flat center and vortex tunnels on either side of the car (bout 8-10 inch wide each)
Mini vortex tunnel with deflectors in front of front tires.
Deflectors (think ferarri) for rear tires (with and without)
Fastback lid, removed stock wing, and put VOLTEX wing at roof line level.
Then with and without vortex generators at the start of the fastback.

Vortex tunnels to be at 10 degrees.
*vortex generators required for anything greater than 14 degrees of angle of attack.
Lancebringer is offline
post #67 of 345 (permalink) Old February 21st, 2011, 19:02
Registered User

Join Date: Mar 2004
Age: 44
Posts: 202
OldTrader Rating: (1)
Please add: Front Diffuser.
mobi is offline
post #68 of 345 (permalink) Old February 21st, 2011, 19:27
Registered User

Join Date: Jun 2004
Location: Albany, OR USA / Adelaide, SA AU
Posts: 591
OldTrader Rating: (4)
What a great body of work!

I was wondering if a pair of big SPAL puller fans behind the radiator in a "border hood" configuration would assist, because you're "creating" a lower pressure area/more porous surface by the action of the fan than if you were to rely on airflow alone. I understand that there will be a "stall" speed as the fans will only work to a certain point, but I don't think we need to model airspeed much higher than 150 knots, right?

It is good to know the reduction in velocity and flow through there though, reducing front end lift is always a good thing!

Keep up the fantastic work.

Cheers,
Will
KingSapper is offline
post #69 of 345 (permalink) Old February 26th, 2011, 11:32
Registered User

Join Date: Jun 2005
Location: NW metro...
Age: 52
Posts: 4,057
OldTrader Rating: (8)
where can one buy the grill or mesh material?? plastic? metal? CF?
Raising Arizona is offline
post #70 of 345 (permalink) Old February 28th, 2011, 09:48
Registered User

Join Date: Jun 2008
Location: Atlanta, GA
Age: 31
Posts: 244
OldTrader Rating: (11)
I think somebody mentioned it earlier, but the chicken wire would work. You can get that at your local Home Depot.
misut0 is offline
post #71 of 345 (permalink) Old March 1st, 2011, 23:07 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,620
OldTrader Rating: (120)
OK, I haven't forgotten this project, just busy and got a little bogged down in trying to improve my radiator model. I think I have it much closer to reality now, and I have updated the numbers and images in my earlier posts to reflect the new results.

Basically, I finally found some radiator flow data here http://www.supraforums.com/forum/arc.../t-581479.html and tried to modify my model to at least somewhat reflect that. I don't know how accurate that data is, but its better than the nothing I was working with before. I also think my radiator is now more accurate, since as you will notice it now shows a pressure drop from one side to the other and a much lower velocity through the radiator.

The biggest effects of these changes has been a pretty significant reduction in drag (actually, its much closer to what you would expect at this point), as well as larger differences between the various configurations.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car
Alex W is offline
post #72 of 345 (permalink) Old March 1st, 2011, 23:29 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,620
OldTrader Rating: (120)

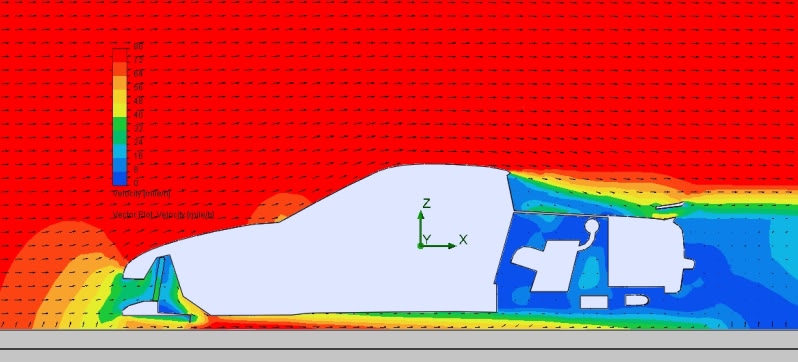

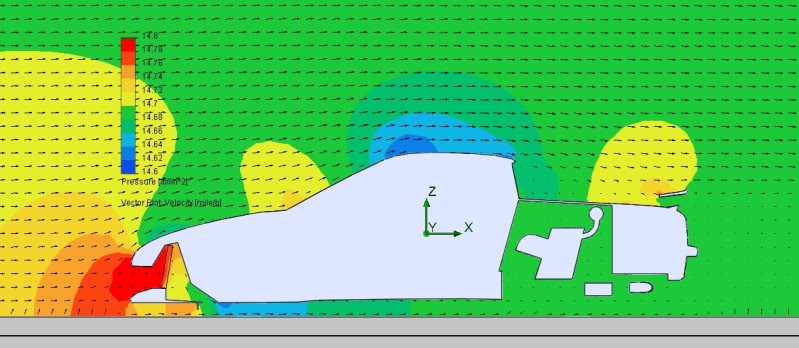

Here I experimented with what I am calling a "corvette style" air dam, since that's where you tend to see them. Basically, a small flap under the car, running all the way across, in the area of the front wheels.




This configuration produced an increase of lift to 52lb, which is 10lb more than the Holy lip configuration that it was based on. Drag was reduced slightly to .301, compared to .315 with the basic Holy lip setup.

Last edited by Alex W; November 10th, 2018 at 09:58.
Alex W is offline
post #73 of 345 (permalink) Old March 1st, 2011, 23:32 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,620
OldTrader Rating: (120)

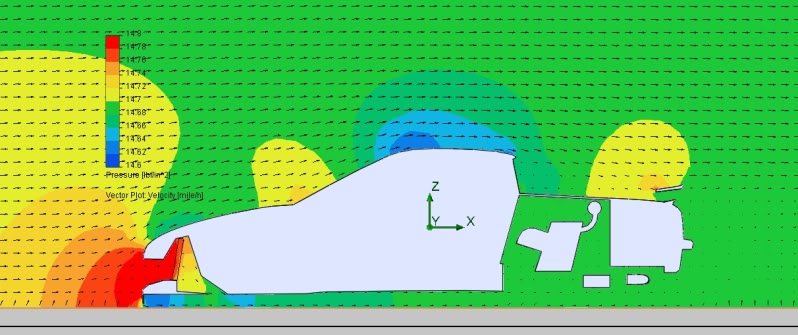

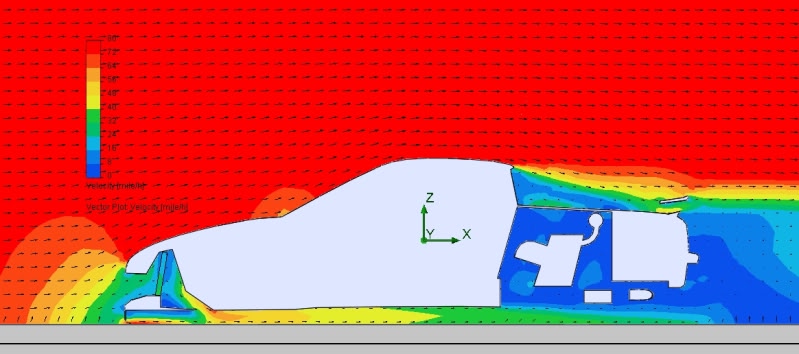

Next, I tried what I am calling a "race" air dam, since you tend to see this sort of vertical sheet metal air dam on autocross cars and other amateur budget race car sort of application. This actually increased lift again, to 66lb, but reduced drag quite significantly to .285.



Last edited by Alex W; November 10th, 2018 at 09:58.
Alex W is offline
post #74 of 345 (permalink) Old March 1st, 2011, 23:37 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,620
OldTrader Rating: (120)

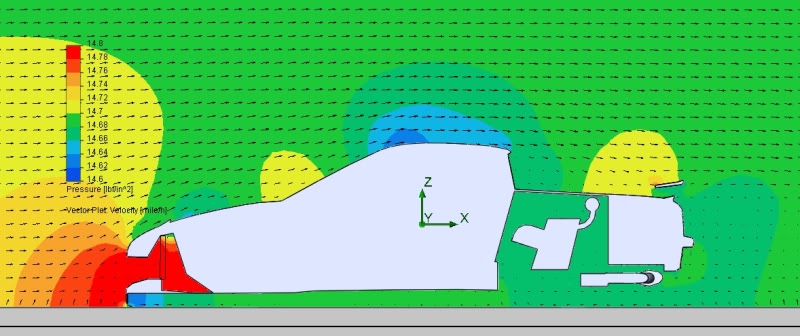

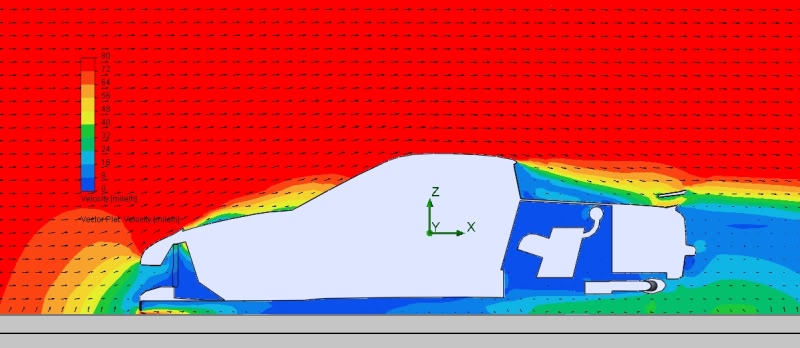

Here I combined the border style vented hood and sealed front underbody with the previous "race" air dam configuration. I must admit, this one surprises me a little, and I don't really see anything in the pressure plots to support the numbers. On the other hand, the numbers were produced in exactly the same way as all the others, so they should be consistent.

Lift was massively increased to 111lb, and drag was also increased to .331.




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car

Last edited by Alex W; November 10th, 2018 at 09:59.
Alex W is offline
post #75 of 345 (permalink) Old March 1st, 2011, 23:41 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,620
OldTrader Rating: (120)

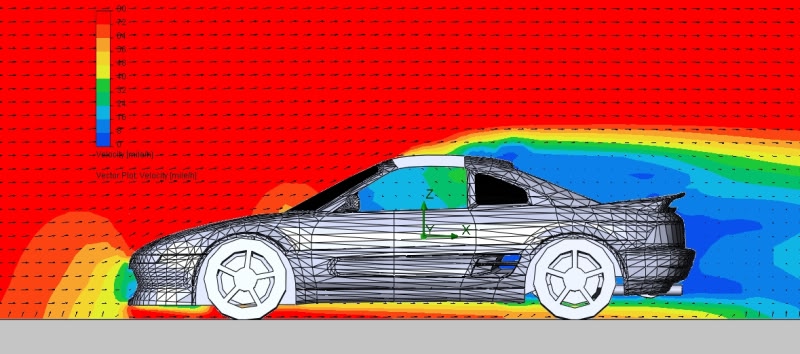

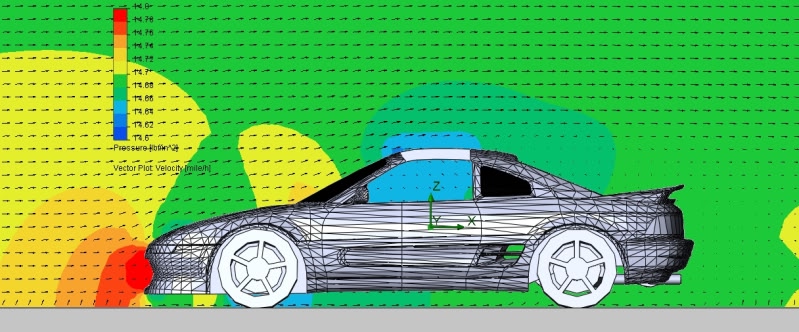

Just for fun, I ran one with the windows down and the T-Tops off. Otherwise this is the same as the Holy lip configuration. Unless otherwise mentioned, that is my baseline, since that is how my car is currently configured. Lift was 59lb, and drag was .365. Note that the airflow separates from the roof of the car quite badly with the tops off and the high pressure zone normally found above the spoiler is completely eliminated.




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car

Last edited by Alex W; November 10th, 2018 at 09:59.
Alex W is offline
post #76 of 345 (permalink) Old March 1st, 2011, 23:43 Thread Starter
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,620
OldTrader Rating: (120)

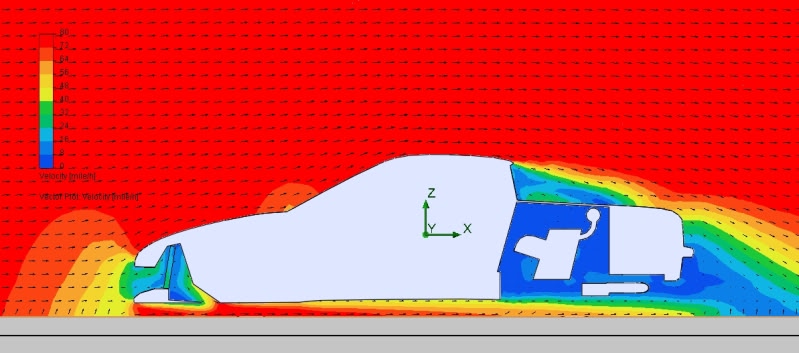

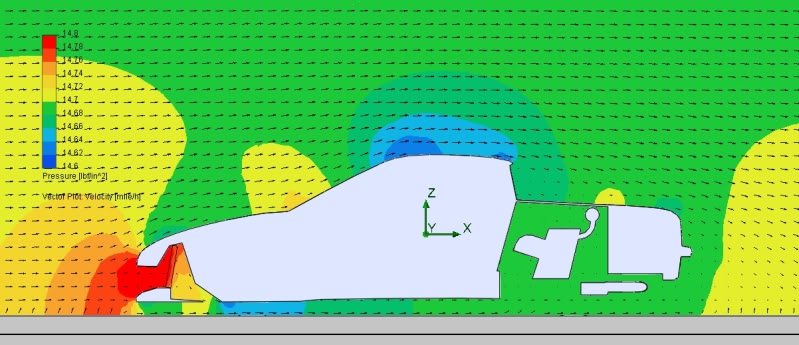

Finally, I ran a test with the stock spoiler removed. Lift was 46.7lb, compared to 42.7lb with the spoiler, and drag was .299 compared to .315 with.




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car

Last edited by Alex W; November 10th, 2018 at 10:00.
Alex W is offline
post #77 of 345 (permalink) Old March 2nd, 2011, 07:08
Registered User

Join Date: Jun 2005
Location: NW metro...
Age: 52
Posts: 4,057
OldTrader Rating: (8)
I should send you my rear diffuser and you can hook that up and test it out.
Raising Arizona is offline
post #78 of 345 (permalink) Old March 2nd, 2011, 07:10
Registered User

Join Date: Jun 2005
Location: NW metro...
Age: 52
Posts: 4,057
OldTrader Rating: (8)
Quote:
Originally Posted by misut0
I think somebody mentioned it earlier, but the chicken wire would work. You can get that at your local Home Depot.
No-no, I'll find a large piece of grill like material and cut to fit. It has to look good too. this will surround the bottom of the bumper to the rear diffuser so the IC will be behind it.
Raising Arizona is offline
post #79 of 345 (permalink) Old March 3rd, 2011, 17:35
Registered User

Join Date: Jun 2009
Location: Kennewick, WA
Age: 31
Posts: 649
OldTrader Rating: (5)
What rear diffuser are you running Arizona?
Svx92 is offline
post #80 of 345 (permalink) Old March 3rd, 2011, 17:55
Registered User

Join Date: Nov 2006
Location: Gaithersburg, MD
Posts: 4,888
OldTrader Rating: (15)
Quote:
Originally Posted by Raising Arizona
I should send you my rear diffuser and you can hook that up and test it out.
From what I understand and have read a rear diffuser won't do anything unless you have sealed underneath your engine bay completely.
Levi is offline
