2GR Exhaust Design Discussion

I posted a few months ago about a new center exit exhaust that I built for my car. https://wilhelmraceworks.com/blog/ce...-exhaust-build

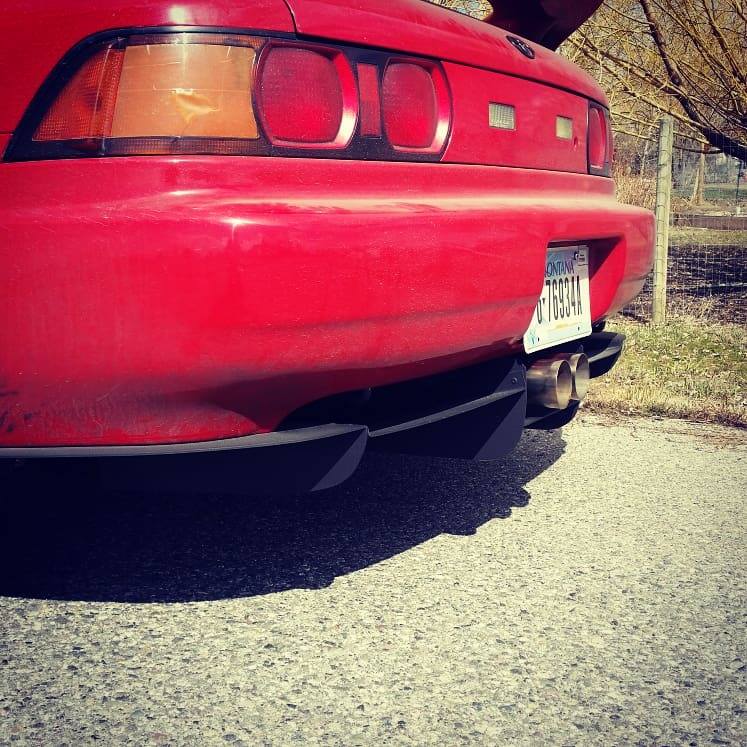

I love the look, especially with the diffuser that I built around it, and by all accounts it sounds good and isn't too terribly loud from outside the car. But inside the car, it drones something awful in the 2k-3k range, and is loud enough at WOT to be annoying. The drone has been improved on quite a bit with the addition of a Helmholtz resonator, and rubberized undercoating on both sides of the trunk floor has helped a little as well but it's certainly not fixed completely. I had a theory that I had caused it by mounting the exhaust to the trunk floor, but I have since built a new cross bar that mounts it to the stock muffler hanger locations and that hasn't cured it either (though it may have helped a little).

So... I'm thinking about building another one, and I'm looking for muffler and other design suggestions.

One thing I have been thinking is to use a single inlet dual outlet muffler, rather than the single outlet / twin tip I have now. The theory being then you have two perforated pipes through the muffler, kinda like having two mufflers in parallel. On the other hand, you probably have more volume of pipe and less volume of muffler packing, so maybe that wouldn't be an improvement.

A larger muffler is probably the best solution, although I cannot go much larger and still have it fit. My current Borla is 9.5" wide, 4" thick, and 14" long. Put a 3" pipe through that, and there is very little packing on the top / bottom of the pipe. Maybe this Vibrant would be better: https://vibrantperformance.com/catal...a3fedcaed0b2a? It's an inch longer (negligible, but every little bit helps), and an inch thicker which puts a lot more muffler top and bottom around the pipes. Also adds the above "two small pipes vs one big one" theory, and overall the Vibrant looks like a much more square shape rather than the Borla's very flat elipse, so it should have a larger volume. But I'm not sure how much real world difference all that might add up to...

Another option that might work is to use a larger transverse mount muffler such as this one https://vibrantperformance.com/catal...0a3fedcaed0b2a Much larger (and going transverse like this is the only way I will get substantially more muffler size), but certainly lends itself more to a traditional dual exhaust, and I'm not sure if it will tuck up above my diffuser. Some measurements will be required. I think it would be reasonably easy to bring the pipes back to the center for the outlet, and while all of this will probably throw away any weight savings I have with my current design, it feels like it might be the most likely to work just because of the muffler size.

One thing I have been wondering is if part of the problem is the extremely short length of my current setup. I know it's a totally different motor, and smaller diameter piping as well, but I have the exact same Borla muffler and cat on my MKI (also with headers) and it is extremely quite with zero drone. If this is in fact the case, then the large transverse Vibrant muffler might be the ticket, as it would also require a couple feet of pipe after the muffler.

Any other thoughts?
