post #61 of 79 (permalink) Old March 29th, 2019, 07:22
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,580
OldTrader Rating: (120)
Quote:
Originally Posted by Gouky View Post
I made a mistake when i said 86. Frank's range in the data given is 32.15 to 71.76 normalize it to start at zero and it's 0-39.61. Your range is 15.69 to 76.08 which means your range normalizes to 0-60.39 which is way wider than frank's. but interestingly Frank's throttle blade never actually goes to 86 so i suspect there's something actually limiting physical travel of the accelerator pedal in his car.
I don't think you were mistaken, Frank's Pedal E value ranges from ~32-86, so I think that's where the 86 came from. but his D value (which is what I have been using) ranges ~16-70. So both have a range of 54 on his car.

My Pedal D range is ~16-76, or a range of 60. Not a ton more, but it is some.

We both have a blade range of ~16-81, range of 65.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car
Alex W is offline
Sponsored Links
Advertisement

post #62 of 79 (permalink) Old March 29th, 2019, 23:05
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
Here's some info from looking more closely at the pedal.

Previously I had made sure that the floormat was not interfering with the pedal. It was not.

However there is a layer of carpeting on the floor. I moved it out of the way. Underneath it is a rubber stop mounted onto the floor.

Removing the carpet layer increases the Pedal E travel to 88.6 (from 86 with carpeting).

However the Throttle Manifold is pegged at 81.2 when Pedal E reaches 77.3 and does not go beyond that.

Then I removed the rubber stop from the floor. Pedal E reached 91.4 with the pedal on the metal floorpan surface.

I am willing to bet any sum of money that the rubber stop is not original and it was added later possibly as part of the pedal recall work. It does not look original - we all know what original Toyota stuff looks like. The rubber piece is a slightly irregular square apparently cut from a rubber sheet. It is 1.75 inch on a side, and 1/4 inch thick. It was held on to the metal floor with rubber adhesive. There was a piece of Gorilla tape securing its bottom edge. Ha ha.

So next, if there is still a desire for this, I will take a look in the throttle body and report.
merryfrankster is offline
post #63 of 79 (permalink) Old March 30th, 2019, 10:42
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,580
OldTrader Rating: (120)
Very interesting. So between removing the carpet and the rubber pad, you gained a raw travel of ~5.4, which is almost exactly the difference in raw travel seen between your "pedal D" range and mine. So there is something to Marc's theory that the ECU is calibrated for a specific range of pedal travel that is seen in the stock application and in the swap we are removing that limit.

This could be compounded by the fact that I'm using a Camry pedal on a Rav4 ECU... could be that the Rav4 has even more limit on pedal travel in the factory application, and the ECU is tuned accordingly.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car
Alex W is offline
Sponsored Links
Advertisement

post #64 of 79 (permalink) Old March 30th, 2019, 16:28
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,437
OldTrader Rating: (14)
As far as I know it looks like all the pedals have the same electrical signal characteristic but yeah i had not considered that the full mechanical travel would not be used. but honestly it makes sense when i think about it. You don't want the pedal to run into its mechanical stop under any condition, you would have to build it stronger. Instead you can just let the pedal run into the firewall and the carpet and the pedal is easier/cheaper to build.


I would not be surprised if the effective travel of the highlander tune i use as a base to the 5-plug is different than the rav4 base tune i also use.
Gouky is offline
post #65 of 79 (permalink) Old March 30th, 2019, 22:09
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
I have a hypothesis, in three parts:

Lemma 1. The pedal/throttle relationship is a simple transfer function, no matrix transformations.

Lemma 2. The modulo 17 tables in the binary that we attribute to the throttle behavior are in fact related to the torque convertor line pressure/lockup.

Conjecture: If this is correct, the three modulo 17 tables for torque request will bot not be found in the Camry ECU binary, because they are handled by the TCU binary.

I haven't looked yet. Just thinking out loud.
merryfrankster is offline
post #66 of 79 (permalink) Old March 30th, 2019, 23:58
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,437
OldTrader Rating: (14)
I'm wondering if some of the throttle tables are actually just blade angle minimums of some kind. I know the 2GR loves to "hang" the RPMs at certain spots when you hook up a VSS signal.

I do agree that it looks like the pedal to throttle is just a simple function.
Gouky is offline
post #67 of 79 (permalink) Old March 31st, 2019, 01:15
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
The same tables are in the Camry binary and they are nearly identical in all respects (except for some details like the max RPM) so this blows my theory about transmission control.
Attached Images
File Type: jpg 21x17.jpg (66.2 KB, 2 views)
merryfrankster is offline
post #68 of 79 (permalink) Old April 16th, 2019, 23:59
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
Quote:
Originally Posted by Alex W View Post
I don't think you were mistaken, Frank's Pedal E value ranges from ~32-86, so I think that's where the 86 came from. but his D value (which is what I have been using) ranges ~16-70. So both have a range of 54 on his car.

My Pedal D range is ~16-76, or a range of 60. Not a ton more, but it is some.

We both have a blade range of ~16-81, range of 65.
So after thinking about this some more and looking some more at the binary there are definitely some sensor calibration 1-dimensional maps (I believe they are 22x1) that convert the pedal voltage to some "value" which then goes into the 2-dimensional throttle control/torque control maps that we don't want to mess with. I believe that editing these maps would have a similar effect as fiddling with the pedal signal electrically and give better possibility for fine-tuning the pedal response. I did not have an opportunity to test this but it seems like something worth looking into for anyone who's interested in the pedal response.
merryfrankster is offline
post #69 of 79 (permalink) Old April 17th, 2019, 07:01
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,437
OldTrader Rating: (14)
Frank, if you're talking about the maps that bitedit marks that look like this:


I'm not sure what those maps are, but they aren't the "accelerator pedal sensor" maps that bitedit claims they are.
Gouky is offline
post #70 of 79 (permalink) Old April 25th, 2019, 21:02
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
Quote:
Originally Posted by Gouky View Post
Frank, if you're talking about the maps that bitedit marks that look like this:


I'm not sure what those maps are, but they aren't the "accelerator pedal sensor" maps that bitedit claims they are.

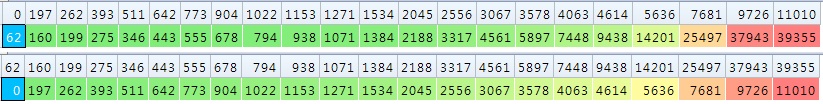

I did reference a BitEdit screengrab that showed two 22x1 pedal maps listed among other sensor maps.

I've made a near-complete inventory of high-resolution 1-d maps/sensor calibrations and I'll write something about that soon.

Meanwhile I got in my possession a 2008 RAV4 with U151F and 89661-42G00 - if there is any interest in the throttle behavior of this vehicle let me know and I'll put it through its paces.

Now all I need is a Highlander 2GR to complete the trifecta of Rav4, Camry, Highlander. I'm gonna pass on the minivan.
merryfrankster is offline
post #71 of 79 (permalink) Old April 26th, 2019, 19:08
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,580
OldTrader Rating: (120)
I picked up a Denso pedal off of ebay to do some testing with. Output seems to be the same (within a couple percent) of the CTS pedal, but it does have a stiffer spring in it (even compared to my CTS pedal with the shim removed, although the shim didn't do much on my particular pedal). Measuring pedal force by holding the base of the pedal in my hand and pressing the pedal down on a scale, the CTS pedal took 138oz to fully compress and the Denso took about 160oz. So, about 15% more. It might make the Denso pedal feel just a touch less sensitive. But electronic correction would still be required to get the full range of pedal travel to equal the full range of throttle travel.

Additionally, the Denso pedal has about 1/4 to 1/2" more physical travel than the CTS pedal, so assuming you can make it use the entire output range, that will also make it easier to modulate, and even without electronic adjustment it might be less sensitive to motion.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car

Last edited by Alex W; April 26th, 2019 at 19:15.
Alex W is offline
post #72 of 79 (permalink) Old April 27th, 2019, 11:41
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,580
OldTrader Rating: (120)
I feel like the Denso pedal is a lot nicer to drive than the CTS. It's a subtle, hard to explain difference. It feels more responsive at the low end, without feeling twitchy. The CTS pedal always had a bit of a dead spot at the very top of the pedal travel (right around 0 throttle) that was noticeable when pulling away slowly. And to be honest, my throttle controller made this slightly worse, but the overall effect of making use of the full pedal travel was worth it. But the Denso pedal seems to eliminate that dead zone at zero pedal, and just overall feels a little smoother.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car
Alex W is offline
post #73 of 79 (permalink) Old April 27th, 2019, 13:48
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,437
OldTrader Rating: (14)
Interesting, both pedals should be built to the same set of requirements. there must be some pretty wide tolerances in the requirements for both pedals to have a different feel.
gavsdavs likes this.
Gouky is offline
post #74 of 79 (permalink) Old May 1st, 2019, 07:45
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
Quote:
Originally Posted by Gouky View Post
It seems that all the throttle stuff is always 16bit and wide open is represented by the value 11010 (0x022B) and surprisingly that value only shows up in 26 different "clumps" so now that i have that new information it may be easier to find the related maps. but the search also pulls up stuff like this:


i have no doubt that that is DBW related but that looks like two tables that are on top of each other. it would be easy to say that's just a table with 3 axis but i know what those look like in this ECU and that's not what that looks like at all. but if we plot it out it looks like a "resonable" throttle transfer curve. little lumpy but not ridiculous:


Also, the lumpiness may disappear with the axis values. since this isn't a normal table i have no idea what the column header values are. this graph assumes they are equidistant.
I've been looking at sensor calibration curves and this grouping above is a set that I've identified as a collection of eighteen 16x1 1-d calibration curves. This is confirmed because each of the 18 curves is preceded by the dimension declaration 0x0010 which is usually the declaration for a 16x1 map. The first image is how it all looks in WinOLS.

Next by looking at the curves it's evident that there are only three independent calibrations.

Curves 1-5 and 12-18 are one calibration.
Curve 6 is another calibration.
Curves 7-11 are the third calibration.

Images 2, 3, and 4 show the numbers laid out in WinOLS for the curves corresponding to each calibration.

Finally I've plotted the three calibrations and this is shown in image 5. The three calibrations follow the same trend but with some differences in the shape.

What does this mean? Maybe this is giving some aspect of the throttle response under three different sets of driving conditions, but I don't know what.

PS> Um yah it occurs to me this could be some kind of hysteresis behavior.
Attached Images
File Type: jpg 16x1Maps.jpg (166.1 KB, 3 views)
File Type: jpg 16x1Maps1-6.jpg (130.6 KB, 2 views)
File Type: jpg 16x1Maps7-12.jpg (135.0 KB, 1 views)
File Type: jpg 16x1Maps12-18.jpg (131.1 KB, 1 views)
File Type: jpg 16x1MapsChart.jpg (37.3 KB, 5 views)

Last edited by merryfrankster; May 1st, 2019 at 07:47.
merryfrankster is offline
post #75 of 79 (permalink) Old May 1st, 2019, 15:27
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
Quote:
Originally Posted by Alex W View Post

Alex, would you be willing to share numerical data for this chart? I'd like to compare to the characteristic curves from the binary, in the previous post.
merryfrankster is offline
post #76 of 79 (permalink) Old May 2nd, 2019, 16:32
Wilhelm Raceworks, LLC
click here to visit the sponsor page

Alex W's Avatar

Join Date: Jan 2005
Location: Bozeman, MT
Age: 35
Posts: 12,580
OldTrader Rating: (120)
Sure. Sharing the whole excel file is probably the easiest.
Attached Files
File Type: zip throttle sweep with correction.zip (81.5 KB, 2 views)


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Specializing in suspension and handling for the MKII MR2

Custom Koni coilovers and coilover housings, suspension geometry correction kits, camber/caster plates, big brake kits, and more

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
A retro-active build thread for my track / autocross car
Alex W is offline
post #77 of 79 (permalink) Old May 3rd, 2019, 02:52
Registered User

Join Date: Feb 2016
Location: Maui, HI
Posts: 1,108
OldTrader Rating: (0)
Quote:
Originally Posted by Alex W View Post
Sure. Sharing the whole excel file is probably the easiest.
I've overlayed the uncorrected throttle data on the characteristic curves. Normalized so 100% throttle corresponds to 11010 (the maximum value in the throttle axis), and 76% pedal corresponds to 7411 (the maximum value in the pedal axis). Innaresting. The throttle-to-pedal curve is not one of the three characteristic curves but it does suggest a hybrid of two of the curves, retaining characteristic features of both.

What I would be tempted to do next is re-scale the pedal axis in the eighteen curves in the binary by a factor of let's say 1.15 so the maximum value in the pedal axis is 1.15 x 7411 = 8523 and see what happens to the throttle-to-pedal relation.
Attached Images
File Type: jpg 16x1MapsChartOverlay.jpg (45.5 KB, 7 views)
Alex W likes this.
merryfrankster is offline
post #78 of 79 (permalink) Old May 3rd, 2019, 17:46
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,437
OldTrader Rating: (14)
Frank, you should give it a go and test it then report back.

The ECU has a bunch of modes it's possible one is an econ curve and the other is a power curve and it transitions based on some other table factor.
Gouky is offline
post #79 of 79 (permalink) Old May 3rd, 2019, 19:50
Registered User

Join Date: May 2019
Posts: 1
OldTrader Rating: (0)
What year is your europa and do you have any photos of it.

Sent from my SM-G935F using Tapatalk
NOSBandit is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the MR2 Owners Club Message Board forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: (0 members)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
