post #21 of 29 (permalink) Old September 4th, 2013, 06:20
Registered User

Join Date: Mar 2012
Age: 29
Posts: 916
OldTrader Rating: (0)
Any idea what transmission that is?
MidnightBlueMR2 is offline
Sponsored Links
Advertisement

post #22 of 29 (permalink) Old September 4th, 2013, 06:42
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,446
OldTrader Rating: (14)
yeah, i built that car.

that's a 5MT from a 1993(ish) subaru legacy.

but there are all kinds of transmissions that are like that across porsche and audi's line.
Gouky is offline
post #23 of 29 (permalink) Old September 4th, 2013, 09:13
Registered User

Join Date: Mar 2012
Age: 29
Posts: 916
OldTrader Rating: (0)
hmm boxer six longitudinal may be nice. low center of gravity.
MidnightBlueMR2 is offline
Sponsored Links
Advertisement

post #24 of 29 (permalink) Old September 4th, 2013, 09:14
Registered User

Join Date: Mar 2012
Age: 29
Posts: 916
OldTrader Rating: (0)
did you plug output for propeller shaft?
MidnightBlueMR2 is offline
post #25 of 29 (permalink) Old September 4th, 2013, 09:15
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,446
OldTrader Rating: (14)
the 5mt in 91-93 was available in FWD, i used one of those boxes so there was no rear output or center differential.
Gouky is offline
post #26 of 29 (permalink) Old September 4th, 2013, 09:55
Registered User

Join Date: Oct 2009
Age: 33
Posts: 677
OldTrader Rating: (6)
Quote:
Originally Posted by MidnightBlueMR2
hmm boxer six longitudinal may be nice. low center of gravity.
I've been mulling this one over for a while now. You can use the awd transmissions with the lockout spool as well as the FWD one. I'm not sure what the strength difference would be between the two, there is sure to be a serious weight difference. I'm thinking that an EJ in an mk1 with the right transmission and body modifications could be a serious little track monster. Alas, I have no mk1 to start cutting... lol

Someone really needs to do this though, I'm waiting on the TB guys lol. Check out this thread for midrear boxer work:

http://forums.nasioc.com/forums/show....php?t=2093090
widebodystarlet is offline
post #27 of 29 (permalink) Old September 4th, 2013, 10:23
Registered User

Join Date: Oct 2009
Location: Lakeland, FL
Age: 42
Posts: 1,638
OldTrader Rating: (2)
Quote:
Originally Posted by Gouky
between 26 and 32" depending on how high you measure. the firewall slopes back.

axles can be swept forward slightly without issue, if you use a custom crossmember and ditch the trunk you can get more space.

with a setup like this you can get enough space for a 4 rotor:

No problems with the axles at that much angle?

That was always my concern with pushing the trans reward that much. To me it seems that if the angle is any greater then maybe 5~7? of constant angle would cause the boots to be extremely short lived and also the joints themselves to have a pretty short life.

Yeah, I know that many CV's can take upwards of 45?+ but they aren't intended to do that in a "constant" condition. Those axle look to be at about roughly a 15?.
CJMR2T is offline
post #28 of 29 (permalink) Old September 4th, 2013, 19:45
Gold Level

Join Date: Sep 2005
Location: Fort Wayne, IN
Age: 38
Posts: 3,446
OldTrader Rating: (14)
the joints will heat up more and they will have a reduced life span but this is done all the time by OEMs, just in the vertical plane instead. think of the stock rav4 and highlander, they are driving the front axle constantly and they have similar angles up front.

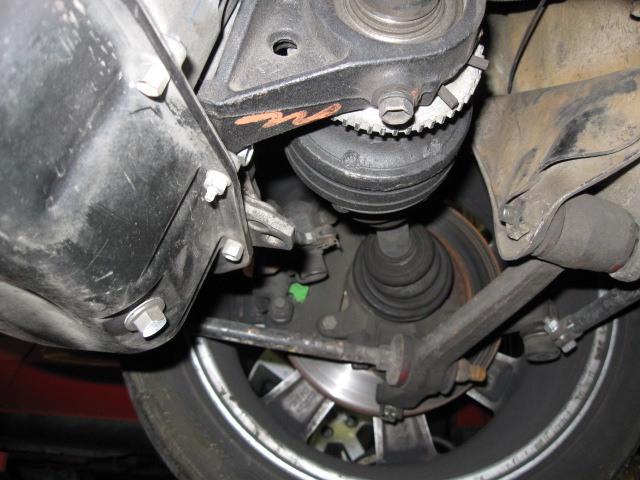

also, i have a similar setup in my 2ar-fe MKI (sorry, not the best picture to demonstrate it, but the motor is out of the car right now so i cannot take a better one):


this car has done about 7k miles of endurance racing at a similar angle with no issues at all.
Gouky is offline
post #29 of 29 (permalink) Old September 7th, 2013, 10:23
planning the big one

Join Date: Nov 2005
Location: Hilliard, Columbus, Ohio.
Age: 33
Posts: 906
OldTrader Rating: (15)
Gouky, you have given me hope! Thank you.
Turbomits95 is offline
