transverse V8

I would like to put a V8 in my project car, but want to use the stock S54 MKII trans. Is there a small Toyota V8 that can be adapted up transverse to fit in there? I remember seeing a pic of someone fitting one in, but did not see anything else on it?
Troy
Troymx576 is offline
Sponsored Links
Advertisement

post #2 of 34 (permalink) Old August 29th, 2012, 02:49
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
I think with a V8 torque you will be asking too much of the S54 gearbox. Switch to an E153 turbo gearbox and shafts and you stand a chance.

The engine of choice (from my point of view) would not be from a Toyota though.

It would be this one.....

I needn't tell you what that is... ... My friend was lucky enough to find the ONLY Right Hand Drive model in existence, built for the Tokyo motor show or something. So we have one here in the UK ready to slot into a mk3. The beauty of this ugly car is....

This little gem...


3.4 Litre V8 Transversely mounted. 340hp with the emissions garbage removed.
Best of all - Ford didn't make it .... Yamaha did !!! So kind of fitting don't you think?
dgh938peg is offline
post #3 of 34 (permalink) Old August 29th, 2012, 07:09 Thread Starter
Junior Two
click here to visit the sponsor page

Join Date: Dec 2000
Location: VA
Age: 46
Posts: 567
OldTrader Rating: (10)
A 3.4 v8 would be sick.

I thought I saw something like a 4.7l put in. What is the smallest Toyota v8 produced that we can get at a junk yard? I was thinking like a 1uz.

Troy Truglio

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

McKibbin's Biohazard Racing-
Troymx576 is offline
Sponsored Links
Advertisement

post #4 of 34 (permalink) Old August 29th, 2012, 07:55
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
The 1UZ will fit transverse in a mk1 because the suspension towers are 2" further apart. But it is very VERY tight (thats was using an E153 gearbox with custom adapter plate). I do not believe the car ever turned a wheel.

In a mk2 the transverse 1UZ will not fit - let alone a 3UZ which is the same engine with vvti to add to the length. In all seriousness, if i wanted a transverse V8 i would start with a v8 that is mounted transversely to begin with.

One other i can think of is the 4.4 v8 in the Volvo XC90...
dgh938peg is offline
post #5 of 34 (permalink) Old August 29th, 2012, 07:58
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
You are aware there is an engine and gearbox package that will bolt straight together, fit in an MR2 mk2 with no chassis stretch or cabin intrusion...?
https://www.mr2oc.com/showthread.php?t=445682
dgh938peg is offline
post #6 of 34 (permalink) Old August 29th, 2012, 17:54 Thread Starter
Junior Two
click here to visit the sponsor page

Join Date: Dec 2000
Location: VA
Age: 46
Posts: 567
OldTrader Rating: (10)
It is a very modified MR2 chassis so there is not room to mount the engine and trans that way. It needs to be transverse. I already have a 1mz in there and was just thinking it would be really good to put a 1uz in there if it would fit. I could make the adapter plate or cut and weld to the stock bellhousing to get that to work. There just is not a lot of room. I even though about moving the engine/trans to the left about 2", shorter the drivers axle (with small susp movement it should work), lengthen the pass axle, make some new mounts and see it it would work. So that is an idea for the future, but at 28" long that is about 8" longer than a V6 and a lot to deal wtih in there. I would almost need to make inboard suspension up top to make it work, which would add more coolness factor, but more work.

Troy Truglio

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

McKibbin's Biohazard Racing-
Troymx576 is offline
post #7 of 34 (permalink) Old August 29th, 2012, 21:26
engineer4me

Join Date: Jun 2004
Location: Albuquerque, NM
Age: 38
Posts: 2,730
OldTrader Rating: (13)
Quote:
Originally Posted by Troymx576
A 3.4 v8 would be sick.

I thought I saw something like a 4.7l put in. What is the smallest Toyota v8 produced that we can get at a junk yard? I was thinking like a 1uz.
lowboost had an adapter plate made for the 1UZ->E153 a long time ago: https://www.mr2oc.com/showthread.php?t=193652

I think he had a build thread but with the board only allowing searches every 60 seconds I'm not going to try and find it. He does say in his FS thread that he thought it would need strut tower modification, and frame rail modification. I don't think the passenger side frame rail would be that big of an issue, just mirror the drivers side where it's clearanced for the transmission.

I don;t know how difficult it would be to reduce the size of everything on the front of a 1UZ. You'd sacrifice timing belt life, but if you cut it in half and the pulleys to match, you could get clearance there. Of course that is a lot of time and money to get a motor in there that isn't exactly mind blowing in the output department.
pablo is offline
post #8 of 34 (permalink) Old August 30th, 2012, 00:01 Thread Starter
Junior Two
click here to visit the sponsor page

Join Date: Dec 2000
Location: VA
Age: 46
Posts: 567
OldTrader Rating: (10)
I am going to stick with the 1mz for now and if I want more I will do a 1mz/3mz hybrid. This will only weight like 1800lbs so it should feel really fast as is.

Troy Truglio

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

McKibbin's Biohazard Racing-
Troymx576 is offline
post #9 of 34 (permalink) Old October 9th, 2012, 23:49
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
I try, and I try to educate people about V8's in MR2's.

Nobody listens

Project MV8R: V8 MR2 engine swap
cbulen is offline
post #10 of 34 (permalink) Old October 9th, 2012, 23:54
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
You guys are saying almost exactly what we talked about back in 2007.

We discussed the Taurus SHO v8
we looked at the Volvo 4.4
We talked about the 1UZFE (especially how its just too long to mount transverse in the MR2).
I really looked hard at the Audi V8. I even bought one.

we even talked about the W8 and the W12

The best option with the least amount of modifications is the Northstar + GM F40 6 speed.

Last edited by cbulen; October 9th, 2012 at 23:58.
cbulen is offline
post #11 of 34 (permalink) Old October 10th, 2012, 00:02
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)

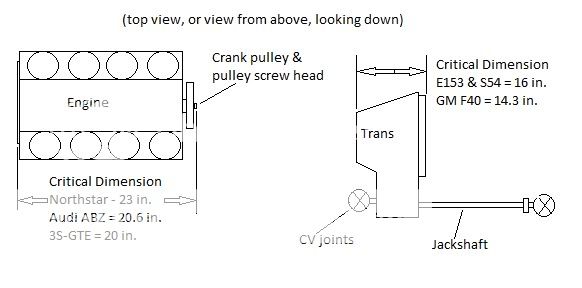

This diagram I made a zillion years ago should help.



What you want is and Engine + Trans that, after they are put together (including any adapter plates between them), have an overall measurement of 37" or less.
cbulen is offline
post #12 of 34 (permalink) Old October 10th, 2012, 02:15
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
Out of interest Chris; can you remember the length of the SHO?
We both know the 1UZ is an impossibility without major structural work.
dgh938peg is offline
post #13 of 34 (permalink) Old October 10th, 2012, 12:27
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
I don't remember, but its my old Audi V8 thread from 2007.

Scan this thread: https://www.mr2oc.com/showthread.php?...highlight=audi

I think its in there somewhere.
cbulen is offline
post #14 of 34 (permalink) Old October 10th, 2012, 12:30
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
I should mention that though my diagram above implies the Audi V8 would fit, it had other issues too major to overcome. Its main problem was fundamental to its design: it was never meant to be mounted transverse. It has too much stuff in the way of the jackshaft, and it has a bellhousing bolt pattern totally incompatible with the F40 trans, even with an adaptor plate. Also, the starter is engine mounted, and in the way.

Simply put, the EASIEST (but not to be mistaken for "easy") way to put a transverse V8 into the MR2 with a manual trans is the Northstar + GM F40 6 speed.
cbulen is offline
post #15 of 34 (permalink) Old October 13th, 2012, 20:17
Registered User

Join Date: May 2010
Age: 48
Posts: 5
OldTrader Rating: (0)
Lots of hard work, better off to stick with the 3S.

Whats the point?
Teal2nnr is offline
post #16 of 34 (permalink) Old October 13th, 2012, 22:35
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
Think Tim Allen gorilla noises

As bill strong has said in the past, the v8 is a manly motor.
cbulen is offline
post #17 of 34 (permalink) Old October 14th, 2012, 11:44
Master Two
click here to visit the sponsor page

SV3Power's Avatar

Join Date: Apr 2004
Location: In the pines
Age: 45
Posts: 5,093
OldTrader Rating: (773)
Quote:
Originally Posted by cbulen
As bill strong has said in the past, the v8 is a manly motor.
Manly, yes, but I like it too.

If you wine-and-cheesers will pardon the intrusion from a MkI owner, are you suggesting that there is more room... ah, you know what, never mind, I guess the search function is there for a reason. Carry on.

NOTE: I no longer work at a dealership. Please do not contact me for Toyota or TRD parts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SV3Power is offline
post #18 of 34 (permalink) Old October 14th, 2012, 21:47
Registered User

Join Date: Aug 2009
Location: Vancouver, WA
Age: 37
Posts: 2,814
OldTrader Rating: (8)
Quote:
Originally Posted by dgh938peg
I think with a V8 torque you will be asking too much of the S54 gearbox. Switch to an E153 turbo gearbox and shafts and you stand a chance.

The engine of choice (from my point of view) would not be from a Toyota though.



3.4 Litre V8 Transversely mounted. 340hp with the emissions garbage removed.
Best of all - Ford didn't make it .... Yamaha did !!! So kind of fitting don't you think?


Actually the v8 is more ford than Yamaha. The v6 are mostly Yamaha.

Be sure you weld the cam gears to the cams.
ppi12x4 is offline
post #19 of 34 (permalink) Old January 5th, 2014, 19:06
Registered User

Join Date: Mar 2004
Location: Allentown, PA
Posts: 3,769
OldTrader Rating: (58)
4.3L Chevy V6 (pretty much a 350 missing two cylinders) would be a nasty swap. I know this is the V8 section but this little engine will pretty much destroy all V8's on this section except for the LS4 swap going on right now. They sell complete aluminum heads, cams, pistons, rods, intake manifolds, etc. 500hp N/A and 1200+ turbo no problem.
JNRmr2 is offline
post #20 of 34 (permalink) Old January 5th, 2014, 20:17
Registered User

Join Date: Mar 2004
Location: Allentown, PA
Posts: 3,769
OldTrader Rating: (58)
Quote:
Originally Posted by cbulen View Post
This diagram I made a zillion years ago should help.



What you want is and Engine + Trans that, after they are put together (including any adapter plates between them), have an overall measurement of 37" or less.
We got a winner. The perfect combo would be the LS4 engine with the F40 transmission. If you are willing to cut the frame (close to the tranny) you can use the E153 with the LS4 as well. The LS4 is very compact measuring an outstanding 23.25 inches, if we use it with the F40 which measures 14.30 inches that means both combine would come up to be 37.55
http://forum.britishv8.org/read.php?6,37035,page=3
JNRmr2 is offline
