post #41 of 101 (permalink) Old November 9th, 2012, 08:49
Registered User

Join Date: Feb 2010
Location: Sydney
Age: 52
Posts: 259
OldTrader Rating: (0)
Great to see you have far more at your disposal than I ever did.
Shame your not following the porsche parts, as your changing the body, masssive wheels, V8, figured some excellent suspension wouldnt make that much of a difference to whats left on the car. I did look into the Supra suspension at one stage. I will work with some time and effort.

Best of luck
B24nsw is offline
Sponsored Links
Advertisement

post #42 of 101 (permalink) Old December 1st, 2012, 16:13
Registered User

Join Date: Apr 2007
Location: Minneapolis, MN
Age: 34
Posts: 2,657
OldTrader Rating: (4)
I wished people at my work placed liked working on MR2s. Honda, VW, and Ford enthusiast dominate my work place.
LordLo is offline
post #43 of 101 (permalink) Old June 18th, 2013, 03:31 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
And so the project now begins in earnest!

Couple of weeks ago I forked the car onto axle stands



dgh938peg is offline
Sponsored Links
Advertisement

post #44 of 101 (permalink) Old June 18th, 2013, 03:32 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
Then this Saturday me, my partner and 3 other MR2 friends stripped it bare!



dgh938peg is offline
post #45 of 101 (permalink) Old June 18th, 2013, 03:32 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)

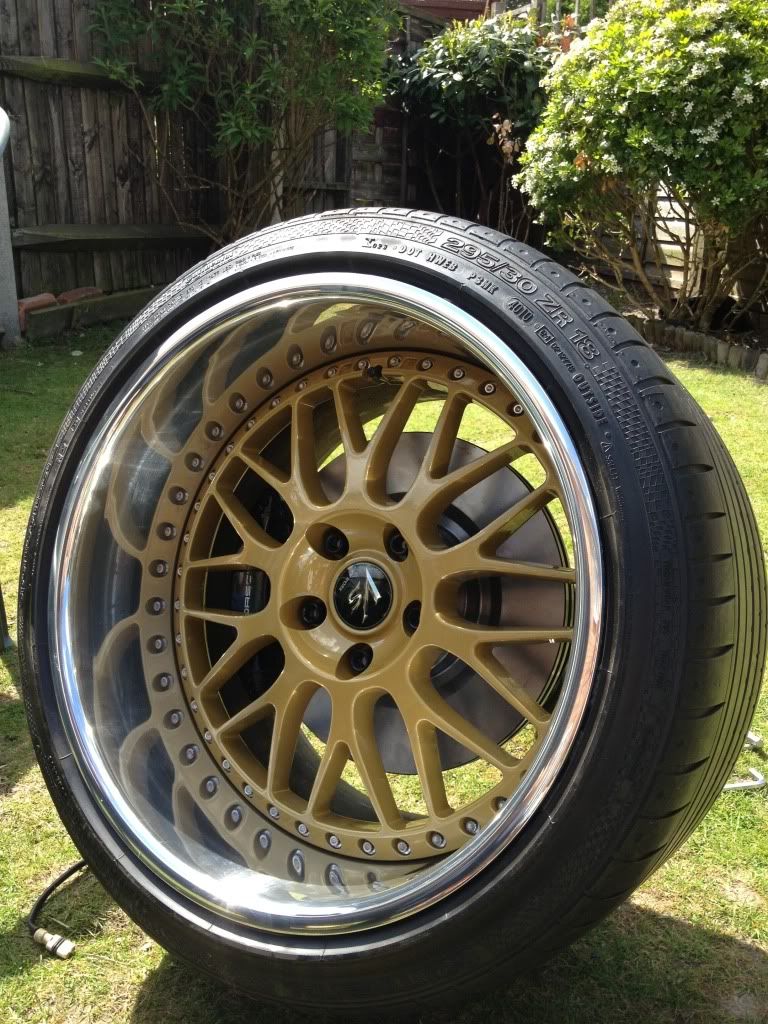

Couldn't help but try one of the 12's on.... just to be sure they fitted


dgh938peg is offline
post #46 of 101 (permalink) Old June 18th, 2013, 03:39 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)

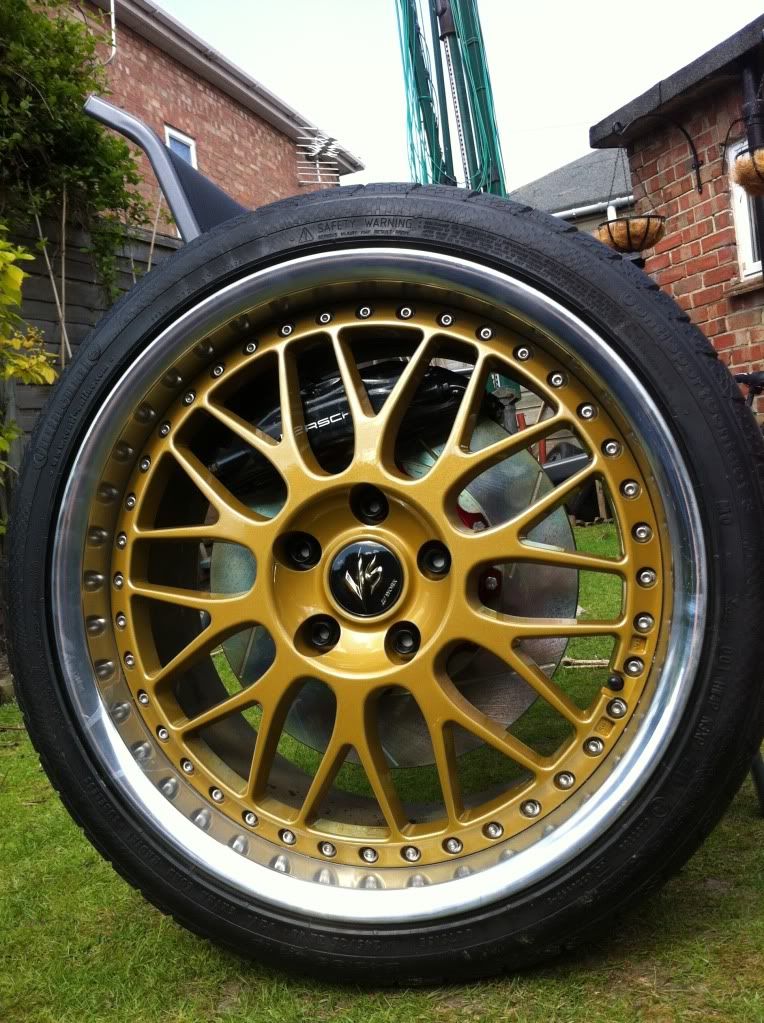

Oh .. that and i have my hubs/brakes/wheels sorted...



Just need to add on the handbrake caliper to the rear now.



I've ordered in the Alloy billets to machine the adapters to fit the Prosche/Brembo 997 calipers to the MR2 Hubs. We have CNC machining in house now - which is great!

Last edited by dgh938peg; June 18th, 2013 at 06:16.
dgh938peg is offline
post #47 of 101 (permalink) Old June 18th, 2013, 10:19
Registered User

Join Date: Oct 2009
Age: 33
Posts: 677
OldTrader Rating: (6)
Sweet wheels, perfect for this build!
widebodystarlet is offline
post #48 of 101 (permalink) Old June 19th, 2013, 03:09
Registered User

Join Date: Feb 2010
Location: Sydney
Age: 52
Posts: 259
OldTrader Rating: (0)
Looks like a great way to spend the day.
You could spend a little more time to fit Ginetta uprights to mr2 lower links with supra upper links.
The Porsche calipers may bolt straight on.
B24nsw is offline
post #49 of 101 (permalink) Old June 19th, 2013, 03:27 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
That's news to me B24 but ... when you have CNC facilities in-house and to meet with UK regulations I need to use as much of the original suspension as possible it's prudent to do so... Otherwise i could find myself in a position where the car cannot be made road legal...
dgh938peg is offline
post #50 of 101 (permalink) Old June 19th, 2013, 06:02
Registered User

Join Date: Feb 2010
Location: Sydney
Age: 52
Posts: 259
OldTrader Rating: (0)
Well, I'm sure you would have a better chance than we would in Australia!
If you can fit those wheels and the flares required, it could be possible. You can use the Supra hubs which can bolt onto the MR2 lower control arm ball joint. top requires some fabrication to the chassis to mount the upper arm, but the coilover should mount straight into the MR2 strut assembly point, the bottom (of coilover) will mount to the Supra upper arm which has a mounting point for the coilover. This way it is still 'technically' using factory Toyota suspension with the addition of mounting points for the upper arm. Still, just an idea to throw around.
Best of luck with the build. Looks like you will be busy enough with the conversion.
B24nsw is offline
post #51 of 101 (permalink) Old June 28th, 2013, 06:36 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
To any company / part company / individual related to International Performance & Style Magazine viewing this - breach of copyright is not implied or intended. If you wish me or the forum to take these images down I/we shall.

(Right click & open images on separate tab to view larger)






dgh938peg is offline
post #52 of 101 (permalink) Old June 28th, 2013, 06:40 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
Impressive find i thought!

Started jig building today. Am about 50% done so another after work evening will have them complete.

Pics!!

Rear steel brace

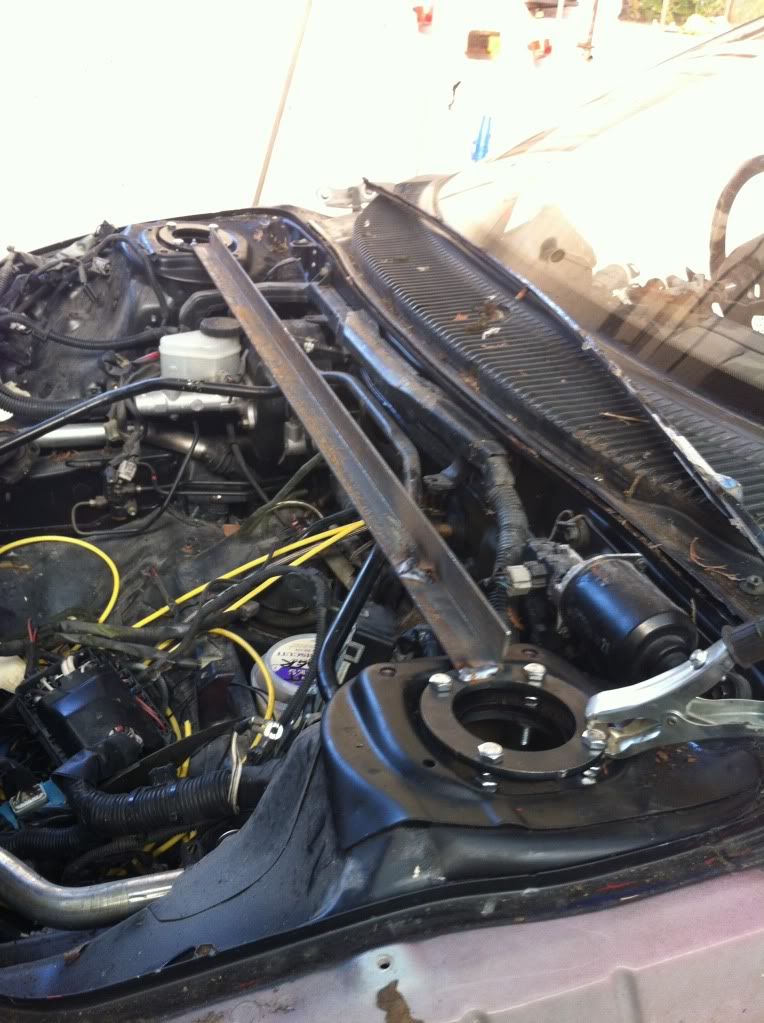

Front steel brace
dgh938peg is offline
post #53 of 101 (permalink) Old June 28th, 2013, 06:40 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)

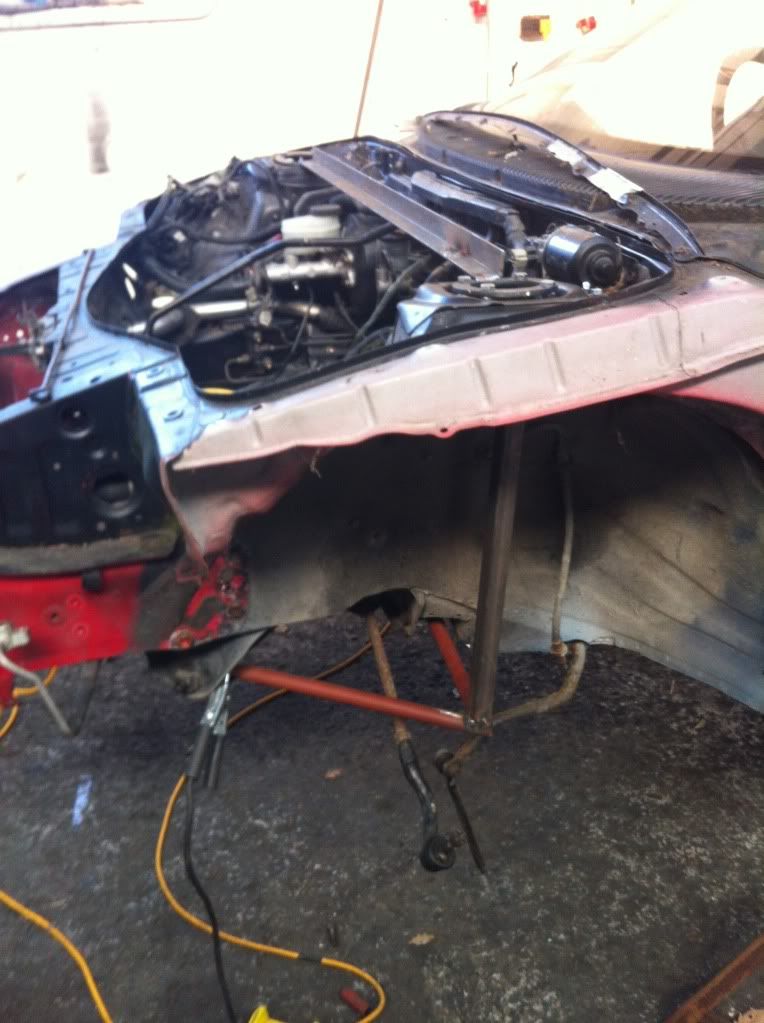

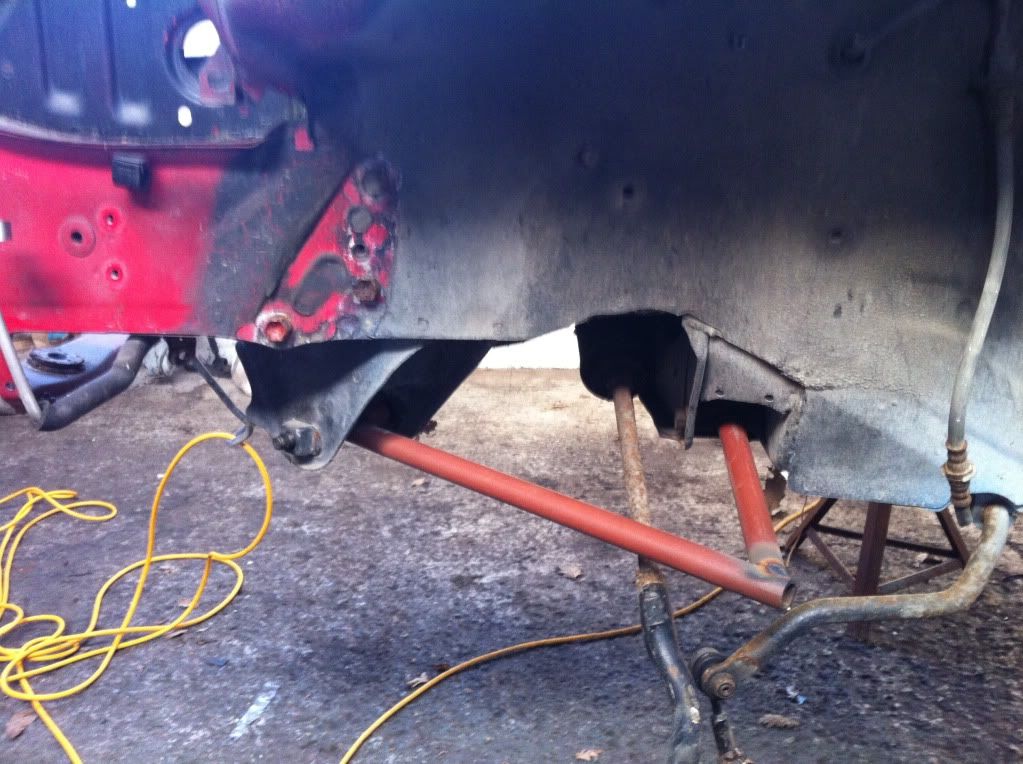

NSF suspension jig


dgh938peg is offline
post #54 of 101 (permalink) Old June 28th, 2013, 06:41 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)

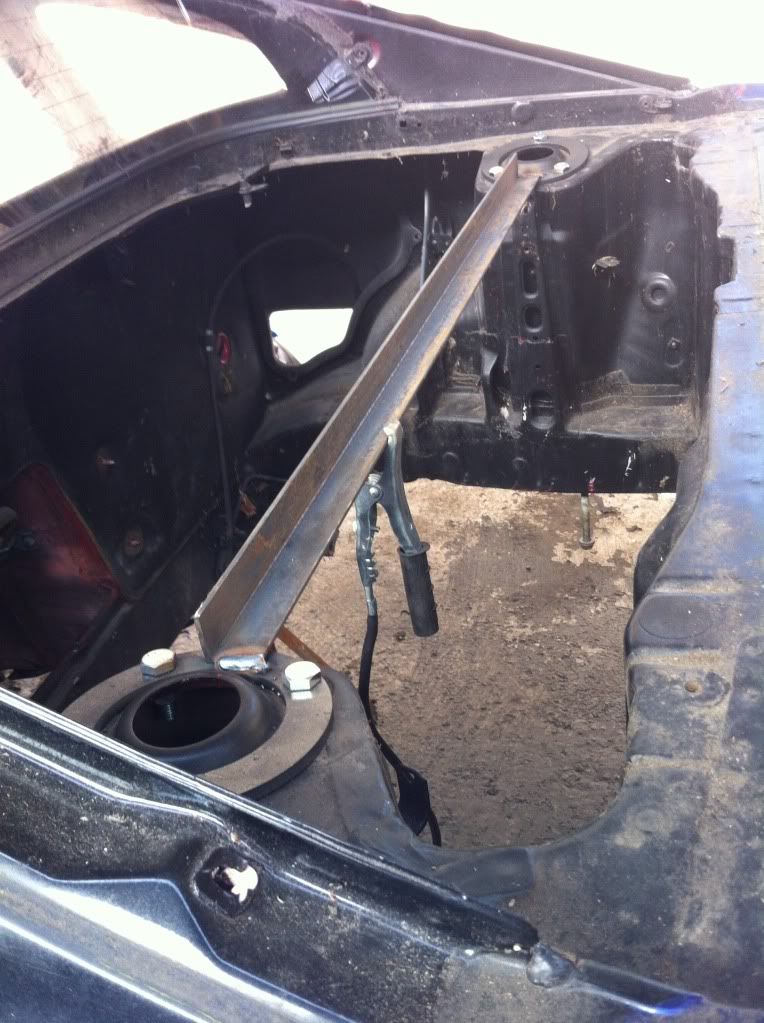

Jig-work pretty much complete, just need to add some bracing to the front; the rear however is complete (nothing to stop me cutting now

Stiffened the front to prevent movement of the plate.


And the rear too
dgh938peg is offline
post #55 of 101 (permalink) Old June 28th, 2013, 06:42 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)

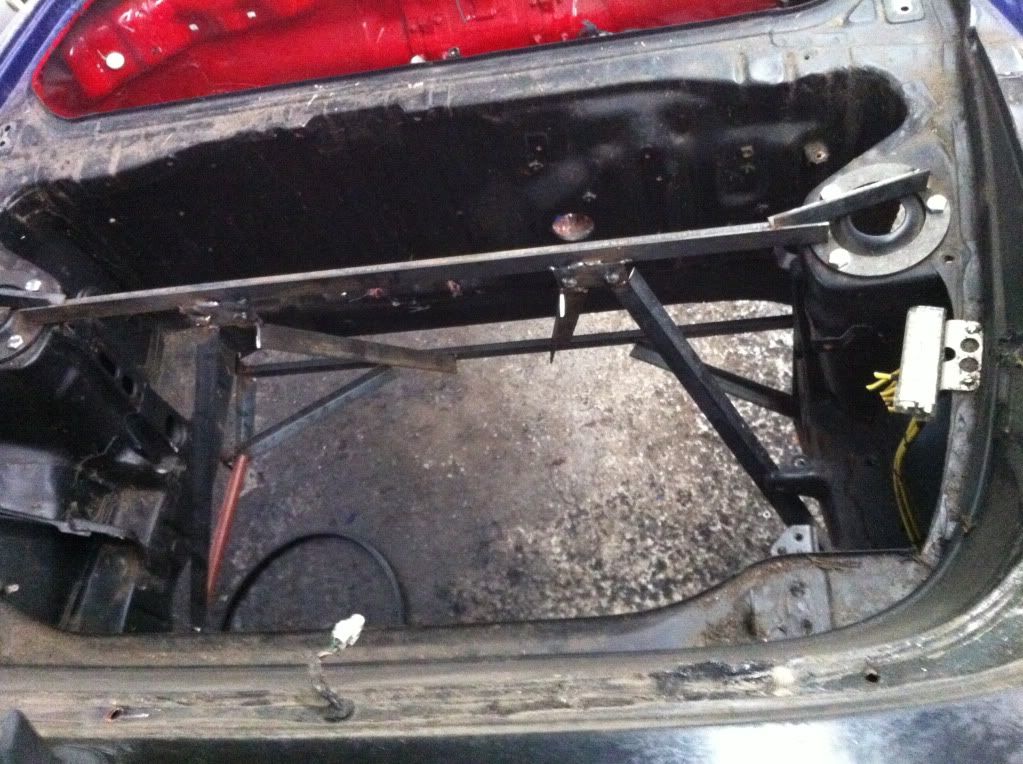

Nothing in between - just the rear bracing complete..





It's not something that has to be pretty but will need to be rigid and light. It does just that.
The rear picks up on the suspension top plates where the top mounts sit, the (4) subframe bolts and the (2) trailing arm bolts. What this means is, i can cut & extend as necessary and, once the engine & gearbox are mated to the subframe, use the subframe to position the new subframe mounting points ...... BREATHE .... Then, I can make/position all my new suspension points from the jig ... Seeeemples!
dgh938peg is offline
post #56 of 101 (permalink) Old June 28th, 2013, 22:46
Registered User

Join Date: Sep 2004
Location: MN
Age: 35
Posts: 2,113
OldTrader Rating: (4)
subscribing to this, just wondering are you gonna use a double A arm suspension setup, maybe something adapted from the sc300 or supra? or are you just gonna use the standard mr2 macpherson?
rdyzz is offline
post #57 of 101 (permalink) Old July 1st, 2013, 02:46 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
Suspension... because of British SVA (Single Vehicle Acceptance - or whatever it is called now) testing will remain MR2. I will also have to prove it's MR2 - which is obviously not an issue when you have a few of them! To change would mean a whole different (and more expensive) level of testing.

As it stands, it will be beneficial to me to fit MR2 stock discs and calipers to the car for the test as it scores me more points. It is regardless that the new setup are greatly improved performance in terms of testing.
dgh938peg is offline
post #58 of 101 (permalink) Old July 2nd, 2013, 07:22
Registered User

Join Date: Feb 2010
Location: Sydney
Age: 52
Posts: 259
OldTrader Rating: (0)
It seems unusual that you are fitting a V8 into a MR2 but you have to run standard brakes?
I would expect that you would have to upgrade to be able to fit a larger engine in the car. In Australia, if you go with a higher spec engine, you must fit bigger brakes, suspension etc. The work must be certified by and engineer. Bit like building a house or modifying it. You note what you want done, the engineer say 'do this', you do it, he check it, signs off then you are good to go.
Even if you are fitting stock brakes then changing these after you have registered the car, can you still be questioned for modifying a car without engineers certification?
B24nsw is offline
post #59 of 101 (permalink) Old July 2nd, 2013, 08:02 Thread Starter
Registered User

Join Date: May 2007
Location: Kent, UK
Age: 43
Posts: 345
OldTrader Rating: (0)
Absolutely B24.

Here's the points score.

Original chassis/shell = 5 points
Suspension = 2 points
Both original axles = 2 points
Transmission = 2 points
Steering assembly = 2 points
Engine = 1 point

Need to score 8 or it goes for a much stiffer test. Now... I am friendly with a tester (who is overseeing what i am doing as he's interested and will make testing easier for him too) He says i have 8pts based on what he believes i am doing and his guidelines. I will score another chassis point if i use the original brakes... Right, wrong or indifferent.!!! So, for the sake of the test the car will probably be kitted out with rev1 discs and calipers!!!

Mental innit!
dgh938peg is offline
post #60 of 101 (permalink) Old July 4th, 2013, 17:28
Registered User

Join Date: Feb 2010
Location: Sydney
Age: 52
Posts: 259
OldTrader Rating: (0)
OK, I get it now.
So, where can you buy the front clip from the V8 MR2 in the pictures? Did anyone every build a fibreglass kit?
B24nsw is offline
