post #61 of 71 (permalink) Old September 10th, 2009, 17:34
Registered User

Join Date: May 2008
Location: Vancouver, WA
Age: 31
Posts: 1,490
OldTrader Rating: (6)
Quote:
Originally Posted by Bill Strong
+1
Square is offline
Sponsored Links
Advertisement

post #62 of 71 (permalink) Old November 13th, 2009, 14:16
Gold Level

Mulry's Avatar

Join Date: Nov 2008
Location: Dallas, TX
Age: 47
Posts: 591
OldTrader Rating: (13)
Love this thread but see that it hasn't gone anywhere in awhile. Any progress on the frame/chassis design for the project? I'd rather do one of these than the La Bala I think. Mmmm, V8 power...
Mulry is offline
post #63 of 71 (permalink) Old November 13th, 2009, 17:44
Registered User

filonin_2's Avatar

Join Date: Nov 2005
Location: North Highlands, CA
Age: 33
Posts: 8,745
OldTrader Rating: (11)
It's probably a lot harder than a La Bala, but it's awesome all the same.
filonin_2 is offline
Sponsored Links
Advertisement

post #64 of 71 (permalink) Old November 14th, 2009, 09:46
MR2OC Founder

Bill Strong's Avatar

Join Date: Sep 1999
Location: Lovingston, Va
Age: 56
Posts: 42,296
OldTrader Rating: (122)
the chassis design is pretty much done. still waiting on the rear suspension design.
I have been busy pissing my wife off and it is college football season, so I have been swamped with work that pays. once Xmas starts up I'll start welding the front metal together. January I buy the roll structure material.
I have shocks, I have picked out all of the brake system (MK2 MR2 rev2) and have to sort out how I am going to modify the MK2 hubs to work with Steve's design. I would not trust MK1 hubs in a project like this.
I am debating using a full containment open wheel style seat. I won't be building a hardtop as I want this car as light as I can afford to make it.

Bill Strong
Marketing Director
On-Air Host
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

ChampCar Endurance Series


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Bill Strong is offline
post #65 of 71 (permalink) Old November 27th, 2009, 17:26
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,501
OldTrader Rating: (19)

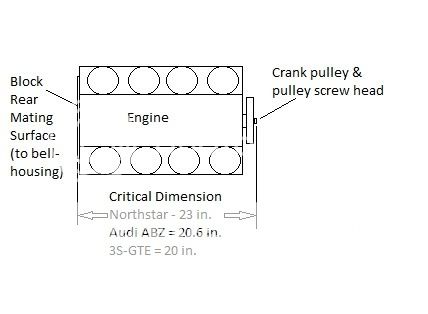

I saw there was a question earlier about Northstar fitting vs. the Audi ABZ. As I have all of the engines in my posession, here is how they compare:



Please note that the Northstar will require an adaptor plate (and if its aluminum it may need to be 0.5 to 1.0 inches thick, which adds to its critical length. Custom clutch and flywheel needed, or flywheel spacer.

I am pretty sure the ABZ bolts right up to the 01x Audi transaxles, and you only need a flywheel from 034motorsports. Standard off-the shelf clutches made for smaller Audi engines will work if able to handle the torque of the ABZ. See Hilly's (Andy Hills) Audi ABZ in his 83 Esprit build thread for more info.

Last edited by cbulen; November 27th, 2009 at 17:28.
cbulen is offline
post #66 of 71 (permalink) Old December 9th, 2009, 14:06
Registered User

Join Date: Sep 2009
Location: Chicago
Age: 28
Posts: 40
OldTrader Rating: (0)
Toyota totally should have gone to you to design the next MR2! Looks incredible, but one suggestion. Having driven many exotic cars, there is always this one problem. Ze Blind spots! If there is one suggestion I can make it would be to minimalize blind spots. With that rear window design it looks like yous gonna have a big one.
Kerbopell is offline
post #67 of 71 (permalink) Old December 9th, 2009, 15:08
Registered User

Join Date: Oct 2009
Age: 33
Posts: 677
OldTrader Rating: (6)
Quote:
Originally Posted by Kerbopell
Toyota totally should have gone to you to design the next MR2! Looks incredible, but one suggestion. Having driven many exotic cars, there is always this one problem. Ze Blind spots! If there is one suggestion I can make it would be to minimalize blind spots. With that rear window design it looks like yous gonna have a big one.
I think he said no hardtop, so i would assume its not going to have a rear window?

This is a completely badass project, can't wait to see the REAL progress
widebodystarlet is offline
post #68 of 71 (permalink) Old December 10th, 2009, 19:23
Registered User

filonin_2's Avatar

Join Date: Nov 2005
Location: North Highlands, CA
Age: 33
Posts: 8,745
OldTrader Rating: (11)
He is building a hardtop version, and it does look like it will have a huge blindspot.
filonin_2 is offline
post #69 of 71 (permalink) Old December 13th, 2009, 21:38
Registered User

Join Date: Dec 2005
Location: Fairfax, VA
Age: 32
Posts: 672
OldTrader Rating: (31)
Quote:
Originally Posted by Bill Strong
the chassis design is pretty much done. still waiting on the rear suspension design.
I have been busy pissing my wife off and it is college football season, so I have been swamped with work that pays. once Xmas starts up I'll start welding the front metal together. January I buy the roll structure material.
I have shocks, I have picked out all of the brake system (MK2 MR2 rev2) and have to sort out how I am going to modify the MK2 hubs to work with Steve's design. I would not trust MK1 hubs in a project like this.
I am debating using a full containment open wheel style seat. I won't be building a hardtop as I want this car as light as I can afford to make it.
As an aside, has anyone given thought to RX-7 Turbo II brakes? Twin piston and aluminum...they're incredibly light. I have a pair sitting at my parents' house not doing anything if anyone is interested in seeing how they fit.
Wushu is offline
post #70 of 71 (permalink) Old January 20th, 2012, 18:39
Registered User

filonin_2's Avatar

Join Date: Nov 2005
Location: North Highlands, CA
Age: 33
Posts: 8,745
OldTrader Rating: (11)
Anything ever come of this?
filonin_2 is offline
post #71 of 71 (permalink) Old October 6th, 2018, 15:52
Registered User

Join Date: Oct 2018
Posts: 2
OldTrader Rating: (0)
I have just found this thread.

I bought a La Bala with Northstar V8 and auto box, and imported it from USA into England. I am currently making the required changes prior to getting it registered over here (main stumbling points have been the removal of the LHD headlamps to be replaced with RHD units, and fitting a handbrake cable and lever).
Attached Images
File Type: jpg la bala 1.jpg (133.4 KB, 37 views)
DaveLaBala is offline
