post #61 of 196 (permalink) Old May 29th, 2009, 08:43
Registered User

Join Date: Dec 2007
Age: 52
Posts: 25
OldTrader Rating: (0)
I am on the case ......

Hilly
athills is offline
Sponsored Links
Advertisement

post #62 of 196 (permalink) Old May 29th, 2009, 12:47
Registered User

Join Date: Mar 2004
Location: North East UK---- The Reaper
Age: 37
Posts: 2,992
OldTrader Rating: (5)
Bolt some stuff to it and send some pics lol, did you weld up the driveshafts yet?

Graeme
^Trickster^ is offline
post #63 of 196 (permalink) Old May 29th, 2009, 12:53
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
I'd like to see your motor mounts
cbulen is offline
Sponsored Links
Advertisement

post #64 of 196 (permalink) Old May 30th, 2009, 03:00 Thread Starter
Woodsport.org
click here to visit the sponsor page

Join Date: Mar 2004
Location: uk
Age: 49
Posts: 1,767
OldTrader Rating: (7)
Yes i only had one driveshaft to weld, the other was plug n play using Audi and Toyota parts.The welded one is all finished and ready to fit when final assembly comes.

Chris i will take some motor mount pics today for you, the engine itself is basically mounted on a cradle that i made, this cradle picks up on the stock v8 mount on the left side,on the right side i had to fabricate a mount that fits around the starter motor.

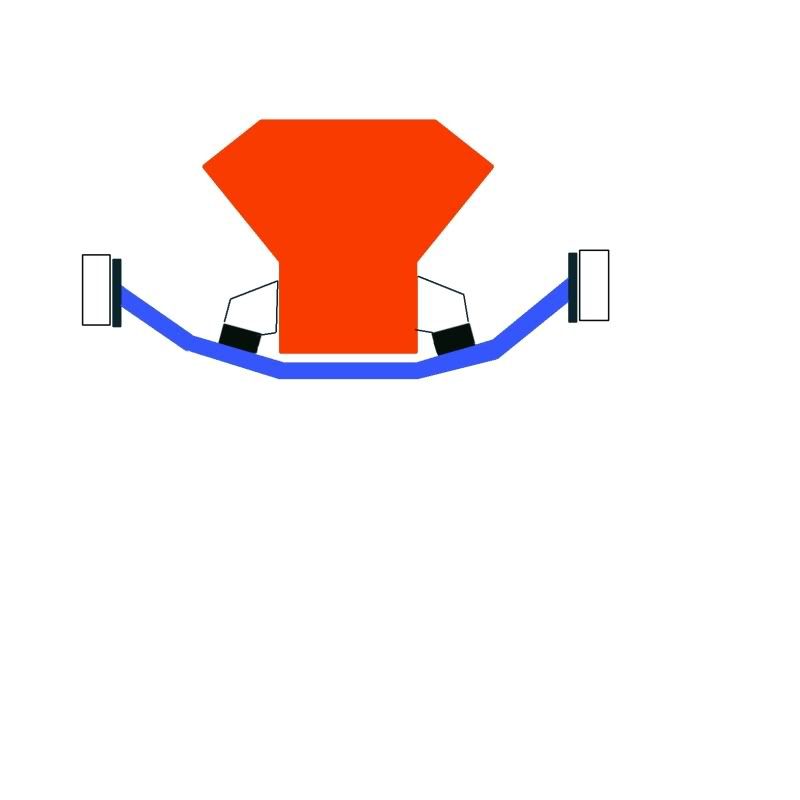

The cradle itself is welded to thick plates which bolt to another pair of thick plates that are welded to the chassis.This means the whole engine and cradle assembly can be dropped out complete very quickly.... here is a quick sketch of how i have mounted it (viewed from the rear of the car)



The transmission cradle is also all custom made,i will grab pics of that too.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
paul woods is offline
post #65 of 196 (permalink) Old May 30th, 2009, 03:03
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
Paul, your sketch is not showing

edit: working now

Last edited by cbulen; May 30th, 2009 at 03:16.
cbulen is offline
post #66 of 196 (permalink) Old May 30th, 2009, 07:20 Thread Starter
Woodsport.org
click here to visit the sponsor page

Join Date: Mar 2004
Location: uk
Age: 49
Posts: 1,767
OldTrader Rating: (7)
Pics as promised, nothing very exciting but you get the idea.... here is my new front crossmember, it is tied into the old chassis and also the old crossmember.



Here is one of my chassis mounts with the engine cradle bolted to it....



This cradle runs under the sump as per my sketch above.



Here is my transmission cradle..... i had to make the carrier bracket that bolts to the case,then used two rubber mounting blocks onto the cradle...





So all of the structural engine/trans mounting work is done.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
paul woods is offline
post #67 of 196 (permalink) Old May 30th, 2009, 13:54
Registered User

filonin_2's Avatar

Join Date: Nov 2005
Location: North Highlands, CA
Age: 33
Posts: 8,745
OldTrader Rating: (11)
Gonna have enough ground clearance? Maybe it's just the picture, but it looks kinda low.
filonin_2 is offline
post #68 of 196 (permalink) Old May 30th, 2009, 20:39
Rocket Scientist

Join Date: Mar 2004
Location: Olney, MD
Age: 45
Posts: 1,698
OldTrader Rating: (6)
Quote:
Originally Posted by filonin_2
Gonna have enough ground clearance? Maybe it's just the picture, but it looks kinda low.
Should be all right, looks like it's about the same height as the mounting points for the lower control arms; also, it's inline more or less with the rear axle line, so no worries on high siding or approach angles. Just don't try to straddle an armadillo
Stephen M is offline
post #69 of 196 (permalink) Old May 31st, 2009, 03:14 Thread Starter
Woodsport.org
click here to visit the sponsor page

Join Date: Mar 2004
Location: uk
Age: 49
Posts: 1,767
OldTrader Rating: (7)
Ground clearance is brilliant, it sits about 10mm higher than the lowest point which is the lower rear control arm mounting points.The V6 mk1's and 1.5's hang about 2" lower than this engine and it actually has better ground clearance than the 4age.Not a very tall engine at all.I think in the pics it looks low but it really isn't, my sump is 10mm ABOVE the floor pan.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
paul woods is offline
post #70 of 196 (permalink) Old May 31st, 2009, 14:16
Registered User

filonin_2's Avatar

Join Date: Nov 2005
Location: North Highlands, CA
Age: 33
Posts: 8,745
OldTrader Rating: (11)
, should be an insane ride, and I bet it'll still handle well.
filonin_2 is offline
post #71 of 196 (permalink) Old June 4th, 2009, 07:08
Registered User

Join Date: Mar 2004
Location: Adelaide, Australia
Age: 48
Posts: 337
OldTrader Rating: (0)
Subscribed!! Paul, you are a nutjob!!! I hope you see this through, cant wait to see it driving.
scottgze is offline
post #72 of 196 (permalink) Old June 4th, 2009, 18:48
Registered User

Join Date: Oct 2006
Location: Atlanta
Age: 41
Posts: 1,573
OldTrader Rating: (11)
I'll join others (late) in saying, HOLY MOLY CRAPOLA!

That some of the craziest shiz I have ever seen. Very much looking forward to all the progress. I need to visit the v8 forum more . . .
thirdvector is offline
post #73 of 196 (permalink) Old June 5th, 2009, 13:08 Thread Starter
Woodsport.org
click here to visit the sponsor page

Join Date: Mar 2004
Location: uk
Age: 49
Posts: 1,767
OldTrader Rating: (7)
It was time to shorten my fuel tank, this was necessary because the engine sits further forward so i needed to make the tank smaller by about 3".

We were very wary of the dangers involved in cutting and welding a fuel tank but we took every precaution and in the end it worked out well.... what i mean is we didn't die!

The tank was thoroughly washed out with a detergent and soaked for hours, then we let it breathe for 2 weeks, then it was washed out again.Finally we dropped a lit cloth into it with a 10m pole!! Nothing happened!

It was then considered safe to cut the end off the fuel tank,which i did with a grinder.3" was then removed from the tank and then we left the whole lot to breathe again for some weeks.

The last step was welding it back up, this was done using oxy-acetylene as it was the best method i could guarantee a water tight weld.The tank was then water tested by blocking off the pipes and letting it stand on end with water above the weld line... no leaks.Finally the welded area was primed,coated with epoxy resin and painted with 2k black.

Although we got away with doing this and we were totally sure it was safe i cannot condone the welding of any fuel tank so please be careful guys.



3" was removed at the red line and the tank end welded back on.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
paul woods is offline
post #74 of 196 (permalink) Old June 5th, 2009, 13:15
Registered User

Join Date: Feb 2005
Location: Reno NV
Age: 47
Posts: 2,497
OldTrader Rating: (19)
You could pressurize the tank with air at 1 or 2 psi with water in it to check for leaks. IMHO a little better than just looking for gravity powered leaks.
cbulen is offline
post #75 of 196 (permalink) Old June 5th, 2009, 13:38 Thread Starter
Woodsport.org
click here to visit the sponsor page

Join Date: Mar 2004
Location: uk
Age: 49
Posts: 1,767
OldTrader Rating: (7)
Good idea, i will give that a go.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
paul woods is offline
post #76 of 196 (permalink) Old June 9th, 2009, 10:21
Registered User

Join Date: Mar 2005
Location: Milwaukie Or.
Age: 50
Posts: 226
OldTrader Rating: (0)
WOW!!!I'm looking for one of thies set ups now.... This will be my new power plant for the 962 project that I have been doing. What year and model is this again?
d962r is offline
post #77 of 196 (permalink) Old June 9th, 2009, 12:03 Thread Starter
Woodsport.org
click here to visit the sponsor page

Join Date: Mar 2004
Location: uk
Age: 49
Posts: 1,767
OldTrader Rating: (7)
PM answered.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
paul woods is offline
post #78 of 196 (permalink) Old June 12th, 2009, 12:03 Thread Starter
Woodsport.org
click here to visit the sponsor page

Join Date: Mar 2004
Location: uk
Age: 49
Posts: 1,767
OldTrader Rating: (7)
I made the camry V6 torque mount fit on the v8, this should help a lot!



Also i have boxed in around the engine now, just some angle spot welded in for now to give me an idea how it's all going to look....



With that done i plonked my seat in and it fits nicely and i have enough room even at 6ft tall.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
paul woods is offline
post #79 of 196 (permalink) Old June 12th, 2009, 17:23
Gold Level

Join Date: Mar 2004
Location: portland, oregon
Posts: 699
OldTrader Rating: (0)
Very nice Paul!
zaimoua is offline
post #80 of 196 (permalink) Old June 12th, 2009, 17:50
MR2OC Founder

Bill Strong's Avatar

Join Date: Sep 1999
Location: Lovingston, Va
Age: 56
Posts: 42,296
OldTrader Rating: (122)
may I suggest 2 layers of steel with a central layer of kevlar?

Bill Strong
Marketing Director
On-Air Host
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

ChampCar Endurance Series


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Bill Strong is offline
