post #21 of 164 (permalink) Old February 5th, 2012, 23:40 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)
a couple people have ask me to be more detailed in the repair process to help others who want to do it for themselves

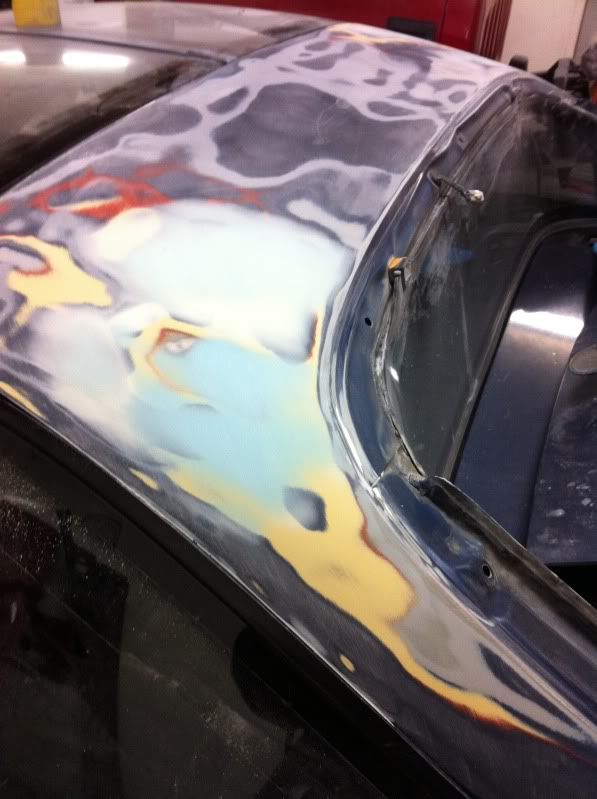

so in this pic you can see i started block sanding the roof with 180 grit.and started seeing the dents.you can see the low spot

another trick i learned along the way is to make my own sanding blocks. the guy that taught me this actually used to paint some of Jay lenos cars and also did some clay molding for cadillac and on the new z06. he was full of knowledge. anyway. one the the best and cheapest sanding blocks in my collection is a paint mixing stick. yea the wood stick they use to stir paint. but he taught me that if you put a strip of velcro ( the soft side) on both sides it helps on curved surfaces such as roof corners and fender flares. ill try to post a pic of it tomorrow

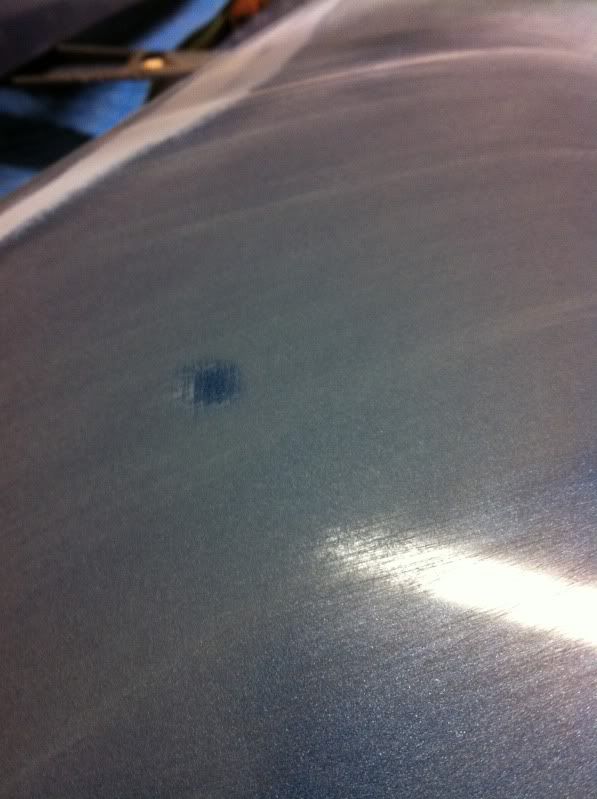

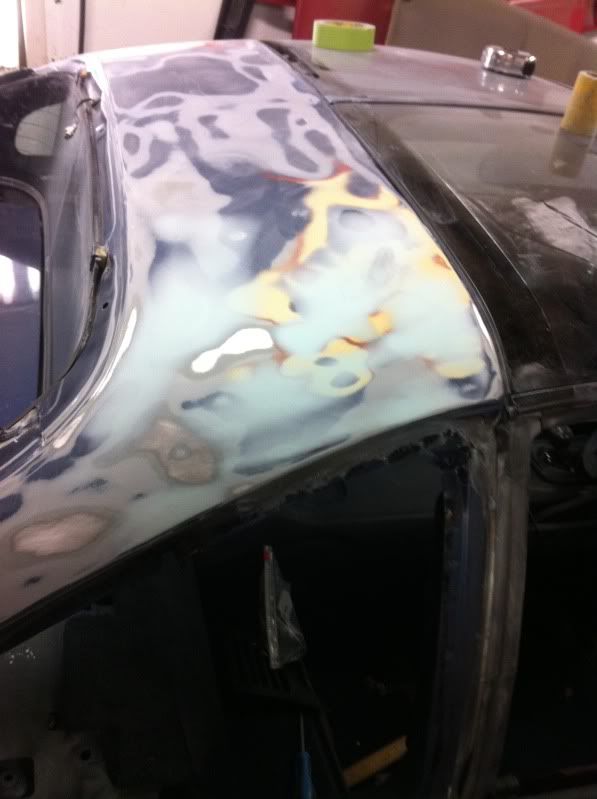

you can see i cut through a few layers of paint and found more dings

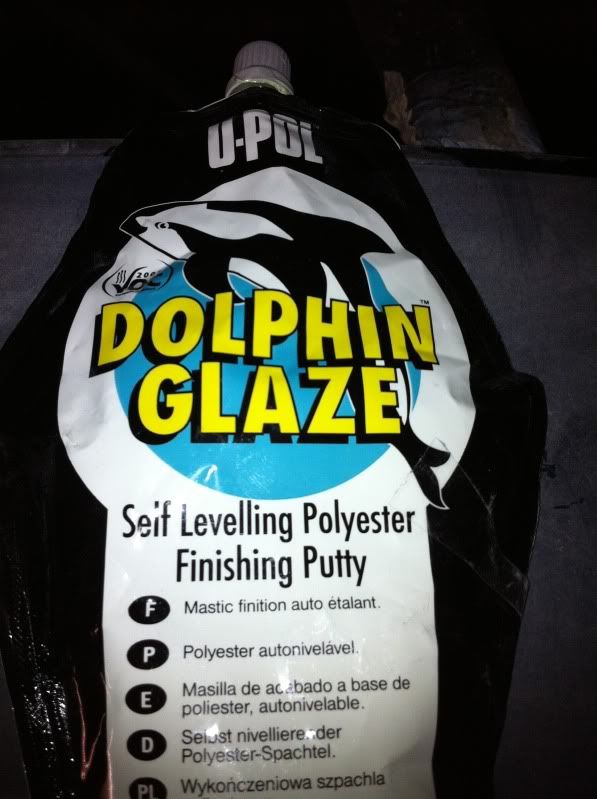

this is a putty i like to use it works great for tiny dings.you can get it at most autobody supply houses

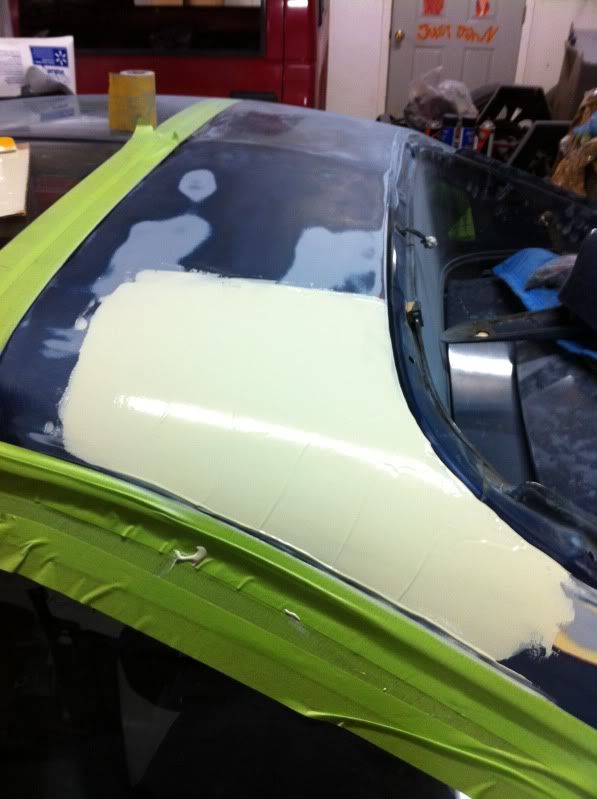

thin wipe to fill the dings
hybrid10 is offline
Sponsored Links
Advertisement

post #22 of 164 (permalink) Old February 5th, 2012, 23:51 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)
blocked the thin putty with 180 grit.then went over it with 320 grit so the primer will have less to fill and less chance of shrink back and scratches showing back up in the paint later.

it looks rough but its smooth

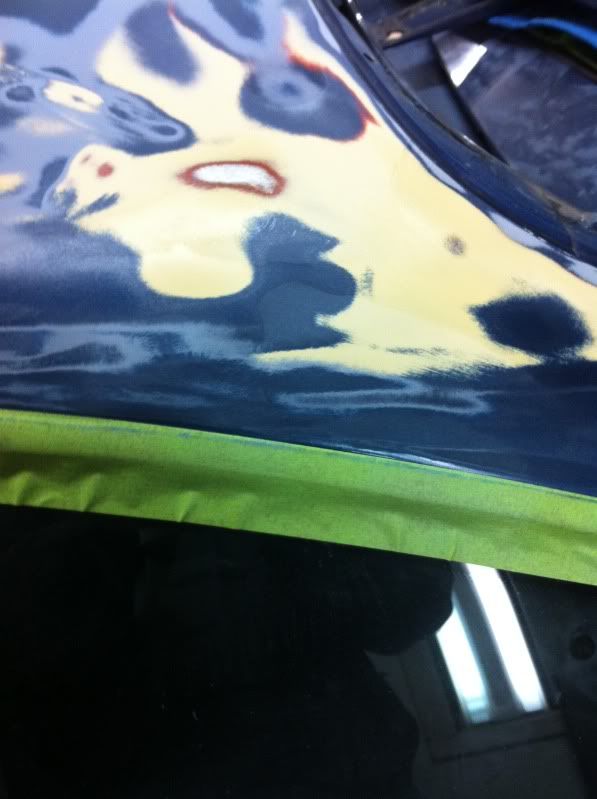

the entire roof is ready to prime. i also feathered out the edge where the paint was chipping and had the hard paint line around the rear window trim molding
i also took the truck lid off and blocked it and fixed about 4 dents in it . got it all scuffed and ready for primer.i will get a pic of that tomorrow.i got the spoiler off. it has lots of bad paint spots on it. whoever painted it before didnt remove it or disassemble it

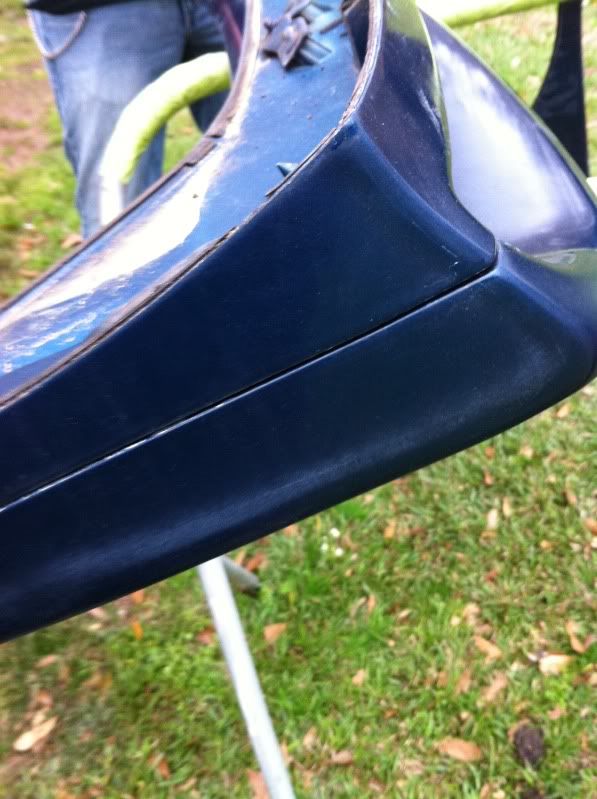

over spray on the sides of the spoiler
hybrid10 is offline
post #23 of 164 (permalink) Old February 6th, 2012, 00:09 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)
this pic shows the paint line around the factory spoiler. it will be feathered out this week and primed.

this pic is the help. and by help i mean she took parts i took off to the guest bedroom and brought back a tasty beverages to the shop.
hybrid10 is offline
Sponsored Links
Advertisement

post #24 of 164 (permalink) Old February 7th, 2012, 00:35 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)

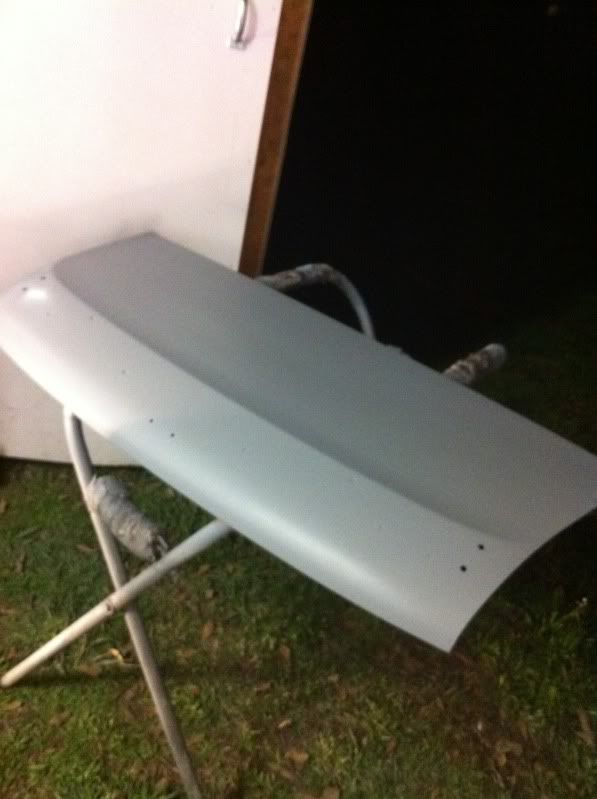

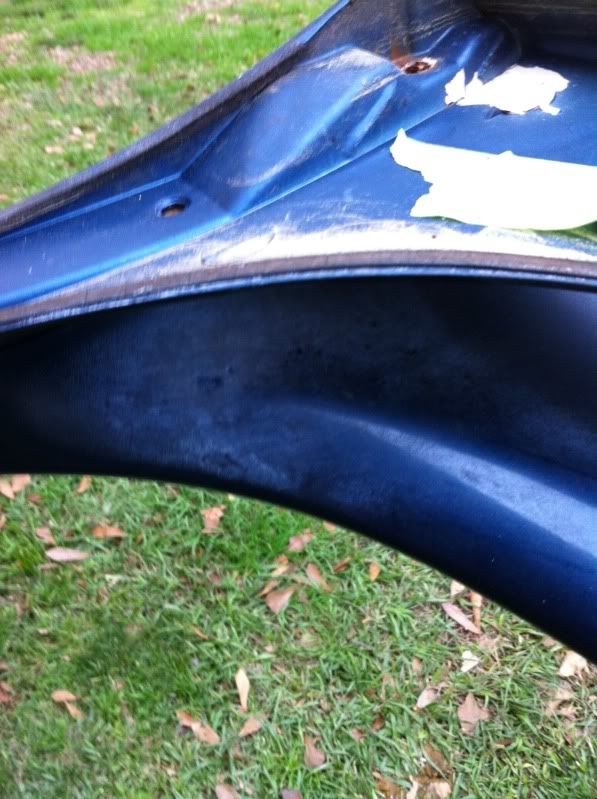

finished blocking the trunk lid and got it primed. using a 2k build primer. spraying primer with a iwata primer gun with a 1.8 tip....will give plenty of build. i have found that 3 coats is usually plenty to fill 180/320 grit scratches but is not so much that you have to worry about it shrinking. also taped up the holes when priming to avoid overspray on the underside

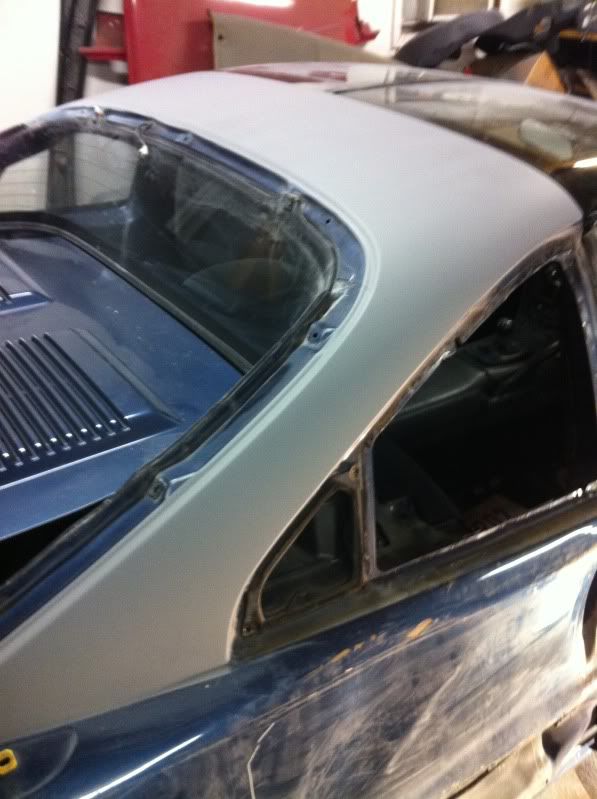

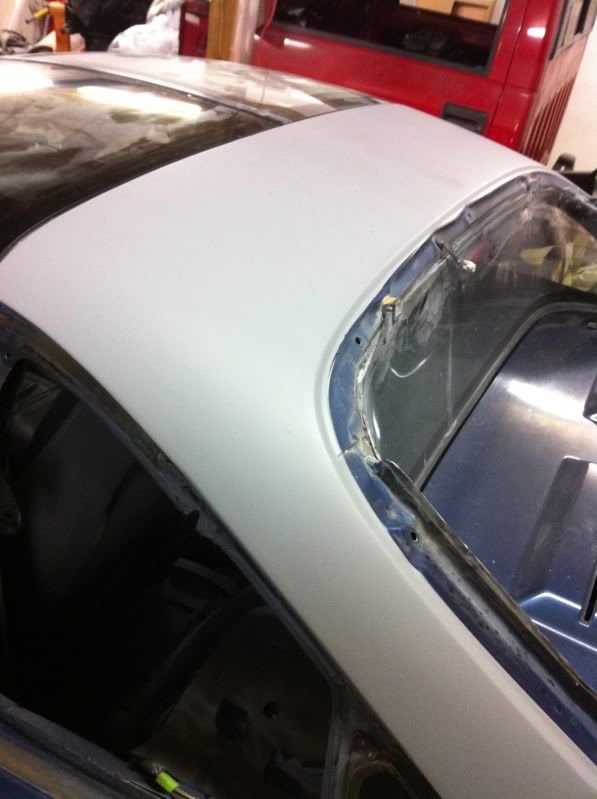

roof and sail panels blocked and primed



tomorrow im driving the car to work.(yes with no window and yes i will be cold) im going to put it on the frame machine to see if i can get this lil door ding in the qtr panel to pull out the way i want it too.
hybrid10 is offline
post #25 of 164 (permalink) Old February 7th, 2012, 07:43
Registered User

ATSAaron's Avatar

Join Date: Mar 2004
Location: Shady Shores, TX
Age: 45
Posts: 8,816
OldTrader Rating: (216)
I always liked this car. I'm glad it went to such a capable person. Thanks for showing us so many details and tips.

The roofs of t-top MR2's are always ripely like that. It's from the chassis flex (or lack of?). Don't be surprised when ripples/hail dents magically show up on the roof section behind the t-tops.

Aaron
ATSAaron is offline
post #26 of 164 (permalink) Old February 7th, 2012, 10:50 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)
Thanks Aaron I'll keep posting pics as I go. The roof def had some waves in it. I looked across it while the primer was still wet and I think I got them handled but like you said cars with out solid roofs are more prone to flex and create waves. I didn't want to prime the whole car but the more paint damage and dings I find it looks like that's the way it's going. The trick is to work 1-2 panels at a time. It keep the project from becoming overwhelming and some how makes the work load feel less. My goal is/was to have the car ready or painting within 3 weeks of starting . This is the beginning of week 2 so I feel like its on track.

Aaron I sent you an email about a week ago. Just a few questions about this car and a few more about some mods.
Thanks for looking
hybrid10 is offline
post #27 of 164 (permalink) Old February 7th, 2012, 14:46
Registered User

ATSAaron's Avatar

Join Date: Mar 2004
Location: Shady Shores, TX
Age: 45
Posts: 8,816
OldTrader Rating: (216)
Can you please resend that e-mail? I must have missed it.

Aaron
ATSAaron is offline
post #28 of 164 (permalink) Old February 7th, 2012, 15:35 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)
Sent it again . Thanks
hybrid10 is offline
post #29 of 164 (permalink) Old February 7th, 2012, 18:07
pew! pew!

anbu_yoshi's Avatar

Join Date: Jun 2009
Location: Mount Wannahockaloogie
Age: 34
Posts: 4,652
OldTrader Rating: (36)
Yea, I didn't have the patience with mine. Damage was similar and on the driver side. See my siggy resto thread.

I just bout another shell and swapped the motor over. Props to you.

"I'm sorry about your father, but that was Koreans... I'm an American."
-Jason Scott Lee, Dragon the Bruce Lee Story


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
anbu_yoshi is offline
post #30 of 164 (permalink) Old February 7th, 2012, 21:32 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)

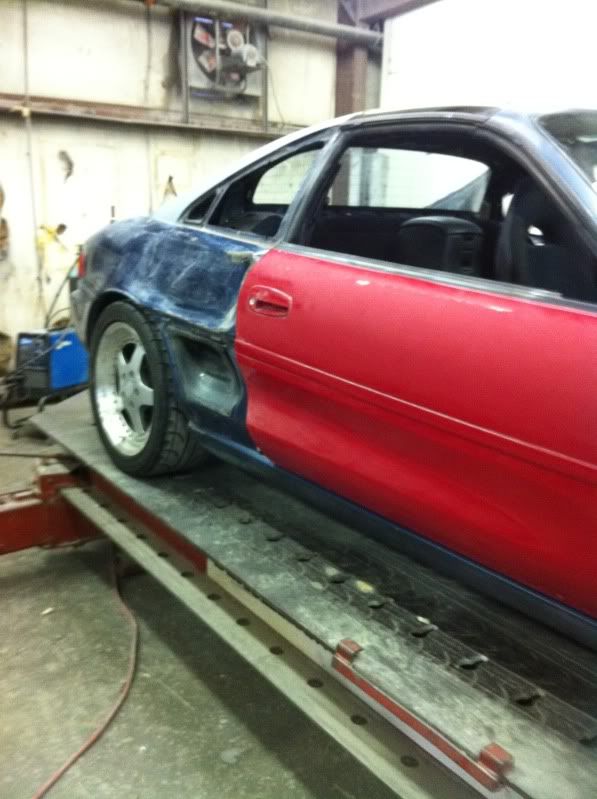

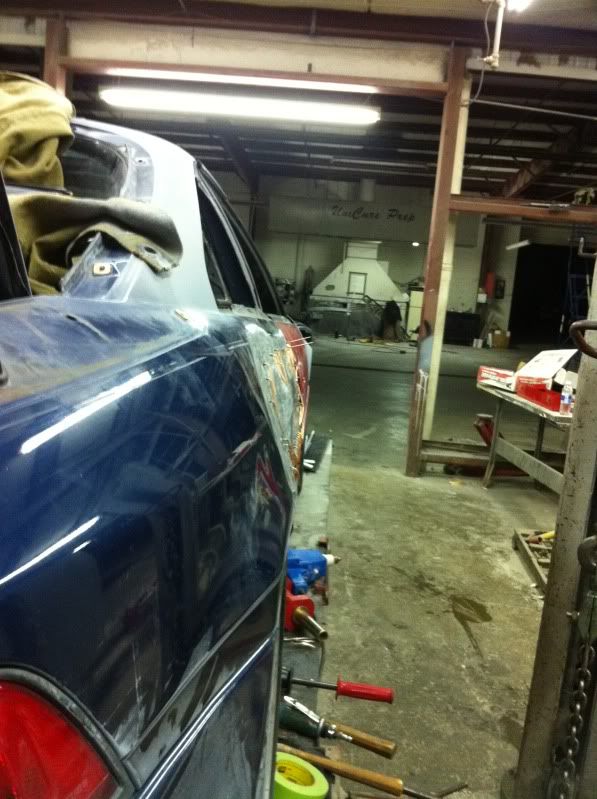

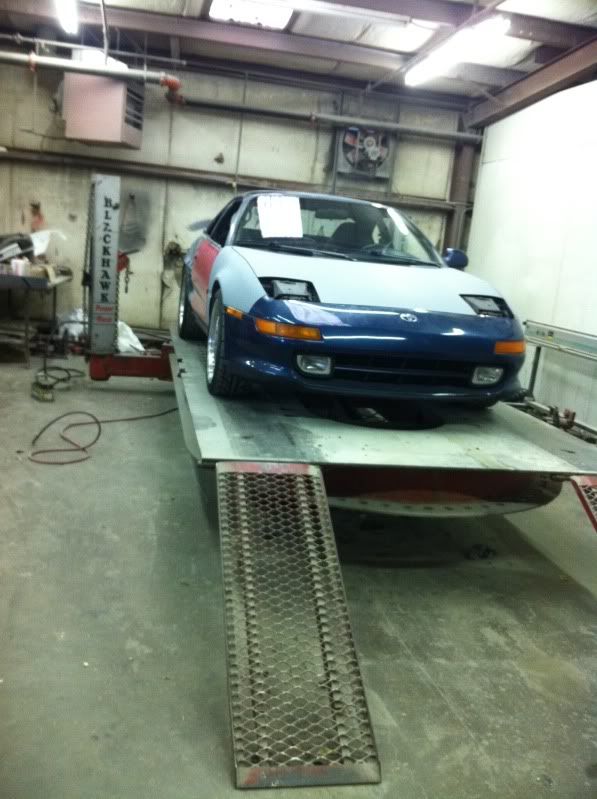

got it on the frame machine today after work

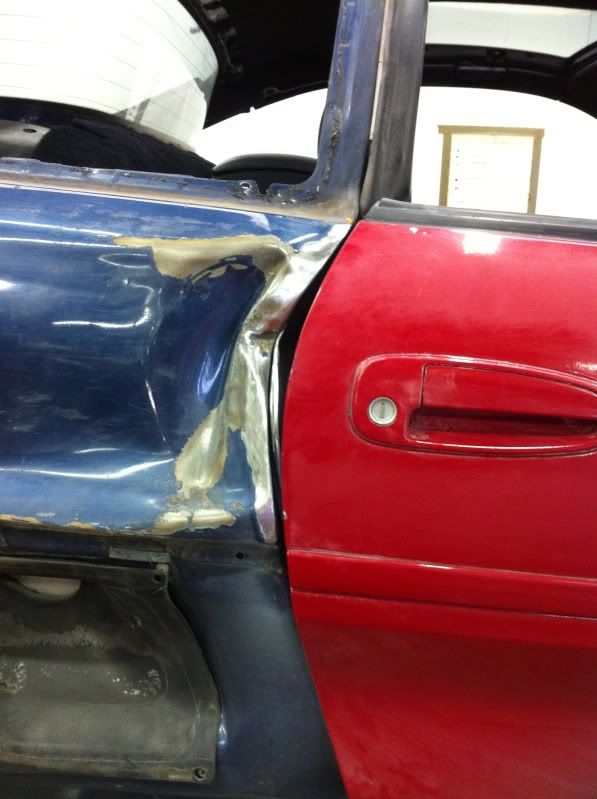

a lil better pic of damage

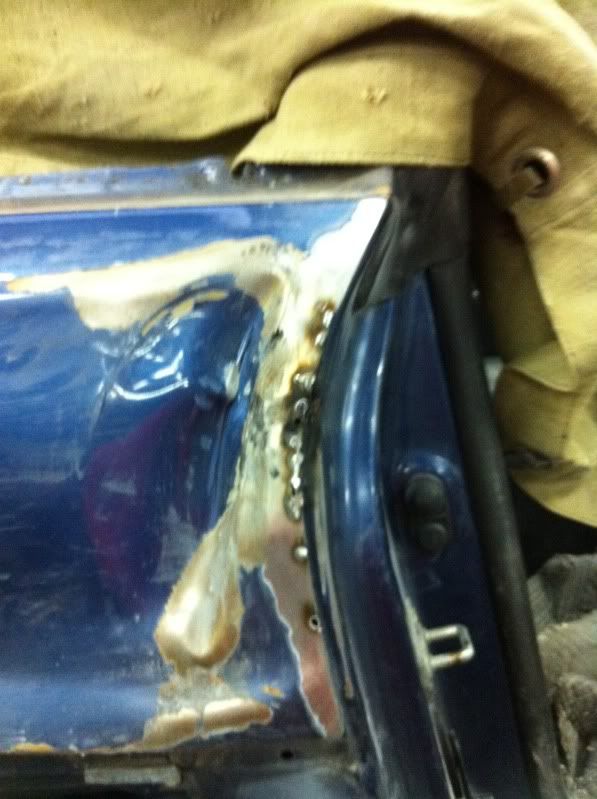

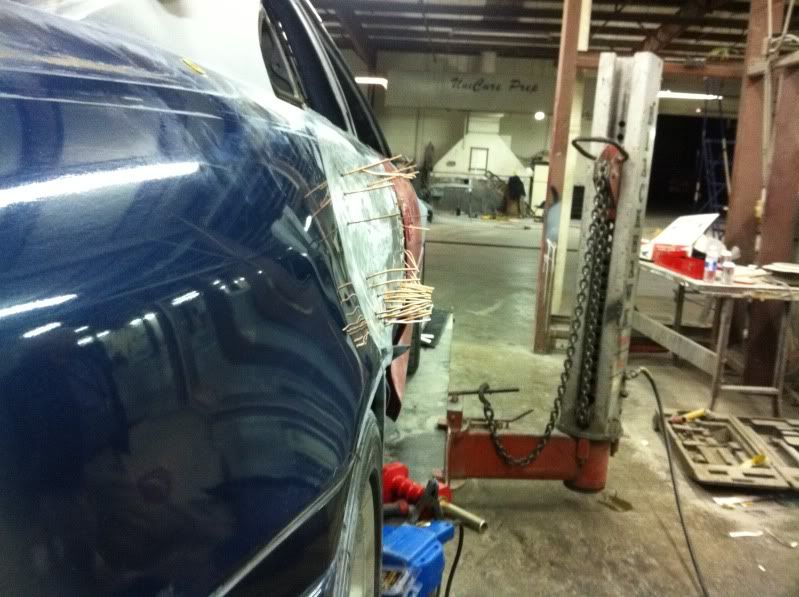

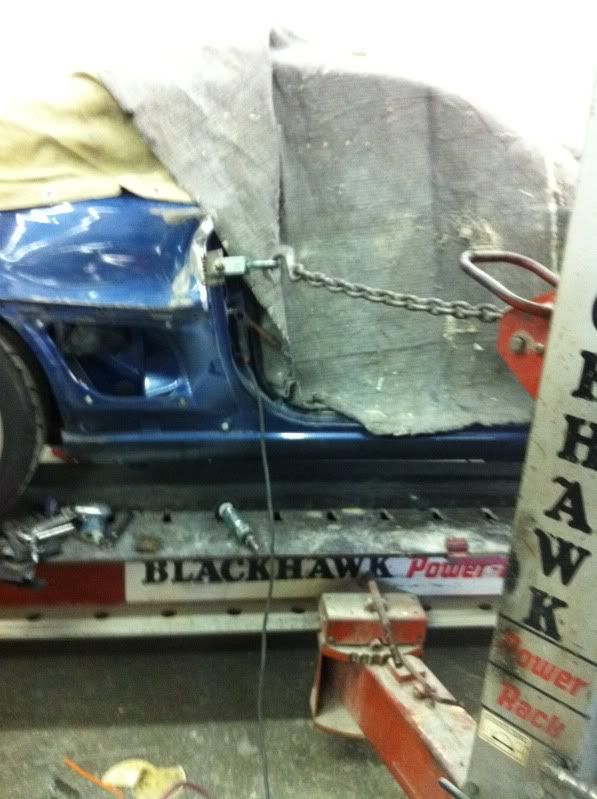

welded a tab on the edge of the door jam. hooked the pulling post up and did some pulling
hybrid10 is offline
post #31 of 164 (permalink) Old February 7th, 2012, 21:40 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)

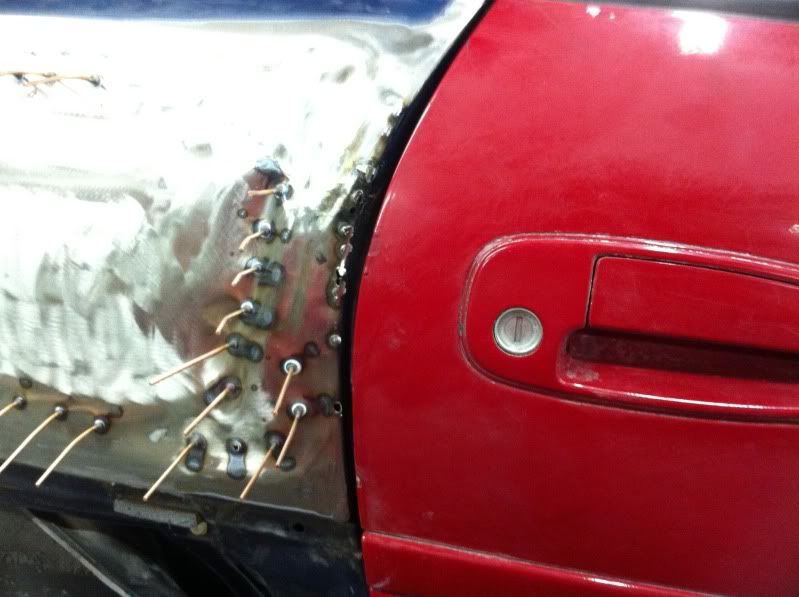

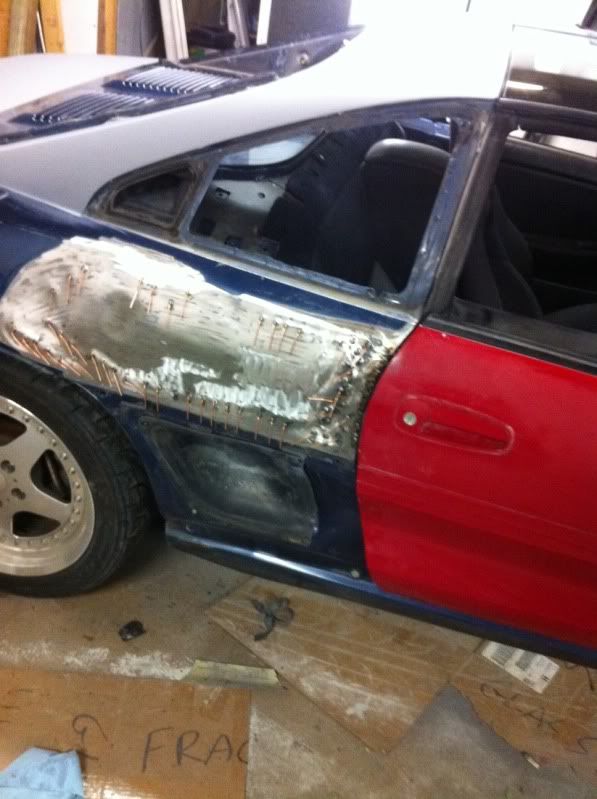

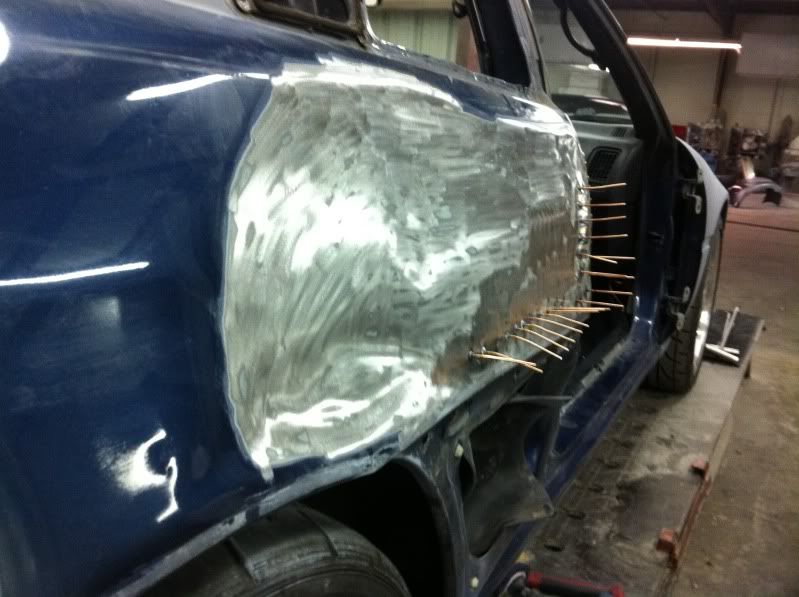

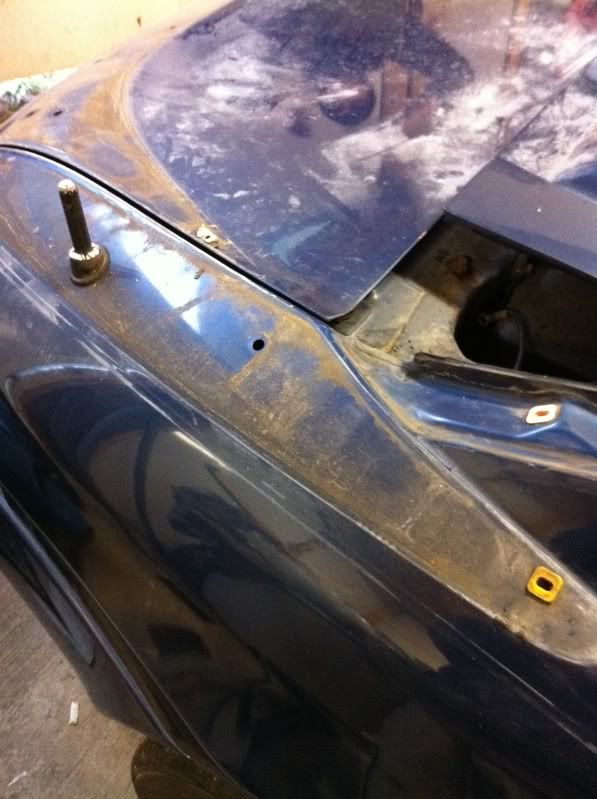

used a stud gun and welded studs to the qtr in the low spots and pulled them also used the frame machine to put a lil pressure on the door jam area to help take pressure off the dent

starting to get somewhere


hybrid10 is offline
post #32 of 164 (permalink) Old February 7th, 2012, 21:44 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)
alot better


this pic show the door jamb area is pretty close. still got a lil work todo but its close. and MOST of the dent is out .i have a few spots that still need work but i had to leave work. i also need to cut/grind all the lil studs off
hybrid10 is offline
post #33 of 164 (permalink) Old February 7th, 2012, 22:14
MR2 Hoarder

mrstu's Avatar

Join Date: Aug 2004
Location: S.Florida
Posts: 5,087
OldTrader Rating: (140)
wow. looks like it was a ton of work so far. Cant wait to see how it comes out. Im glad you saved this car.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
mrstu is offline
post #34 of 164 (permalink) Old February 7th, 2012, 23:26
Registered User

Join Date: May 2007
Age: 32
Posts: 100
OldTrader Rating: (0)
Me too. Watching it slowly get back to better than it was before is mesmerizing. I really like the way the dent is being pulled out. Probably normal, but very clever (to me).

With the car taken apart and nitpicked, it looks so bad. Maybe I just tried not to notice the imperfections so much.
AndrewZorn is offline
post #35 of 164 (permalink) Old February 8th, 2012, 10:02
Registered User

ATSAaron's Avatar

Join Date: Mar 2004
Location: Shady Shores, TX
Age: 45
Posts: 8,816
OldTrader Rating: (216)
WOW!! I thought that 1/4 panel was scrap metal. If my MKII ever gets wrecked can I ship it to you for repair?

I got your e-mail this time.

Aaron
ATSAaron is offline
post #36 of 164 (permalink) Old February 8th, 2012, 10:07
Registered User

Join Date: Jun 2007
Location: Bealeton, Va
Age: 31
Posts: 2,593
OldTrader Rating: (57)
wow!
cant wait to see the finnished product!
95sw21 is offline
post #37 of 164 (permalink) Old February 8th, 2012, 10:28 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)
Quote:
Originally Posted by ATSAaron
WOW!! I thought that 1/4 panel was scrap metal. If my MKII ever gets wrecked can I ship it to you for repair?

I got your e-mail this time.

Aaron
Lol yea Aaron you ever wreck it on only 6-7 hours away haha



Thanks for all the "wows" guys means alot.
hybrid10 is offline
post #38 of 164 (permalink) Old February 8th, 2012, 11:36
pew! pew!

anbu_yoshi's Avatar

Join Date: Jun 2009
Location: Mount Wannahockaloogie
Age: 34
Posts: 4,652
OldTrader Rating: (36)
It almost reminds me of Pinhead from Hell Raiser in the last photo.

I suppose all things start off ugly before becoming pretty.

"I'm sorry about your father, but that was Koreans... I'm an American."
-Jason Scott Lee, Dragon the Bruce Lee Story


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
anbu_yoshi is offline
post #39 of 164 (permalink) Old February 8th, 2012, 12:17
Registered User

Join Date: Sep 2004
Location: Houston Tx
Age: 33
Posts: 5,794
OldTrader Rating: (30)
Great work!
Hardtop2 is offline
post #40 of 164 (permalink) Old February 8th, 2012, 22:57 Thread Starter
Registered User

Join Date: Mar 2004
Location: Jackson, MS
Age: 34
Posts: 562
OldTrader Rating: (9)

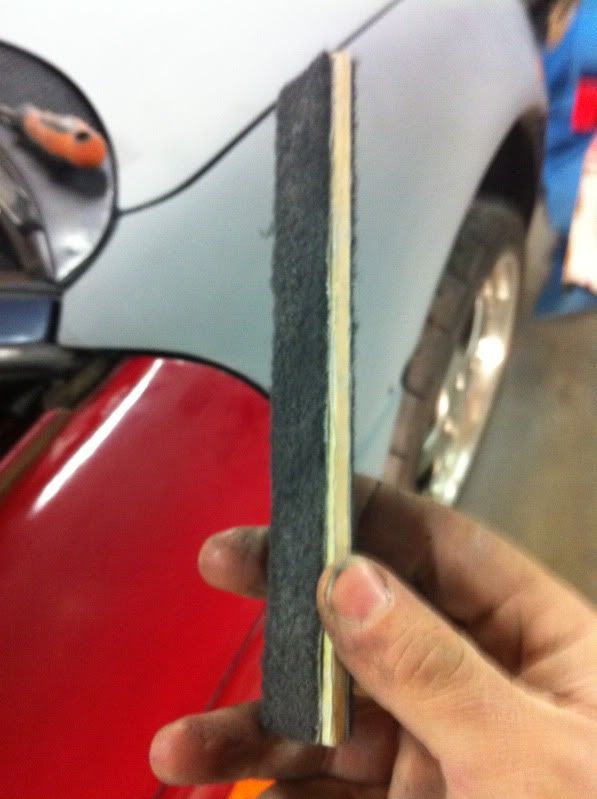

this is the sanding block i mentioned earlier

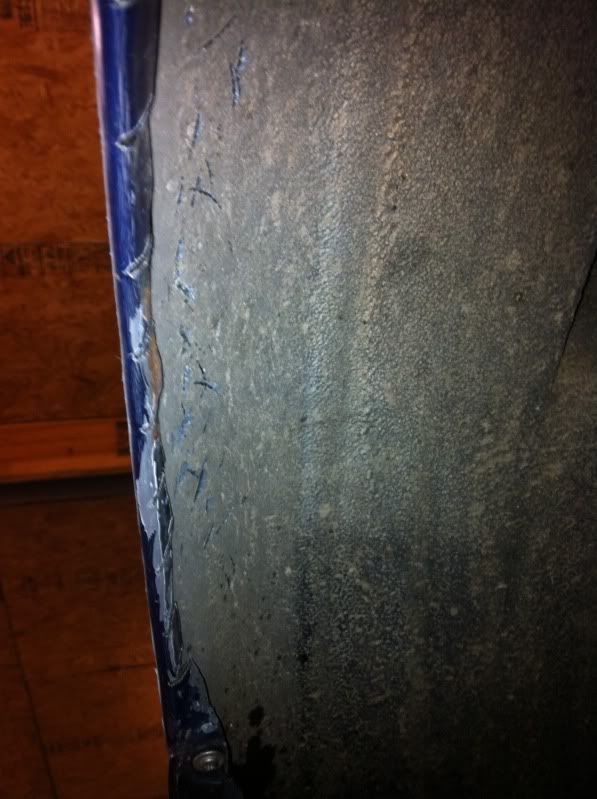

here you can see the tires rub in the rear. i bent it up a lil to help for the week i drove it before i started the work.i cut relief slits in the lip to allow it to lay flat when i roll it up

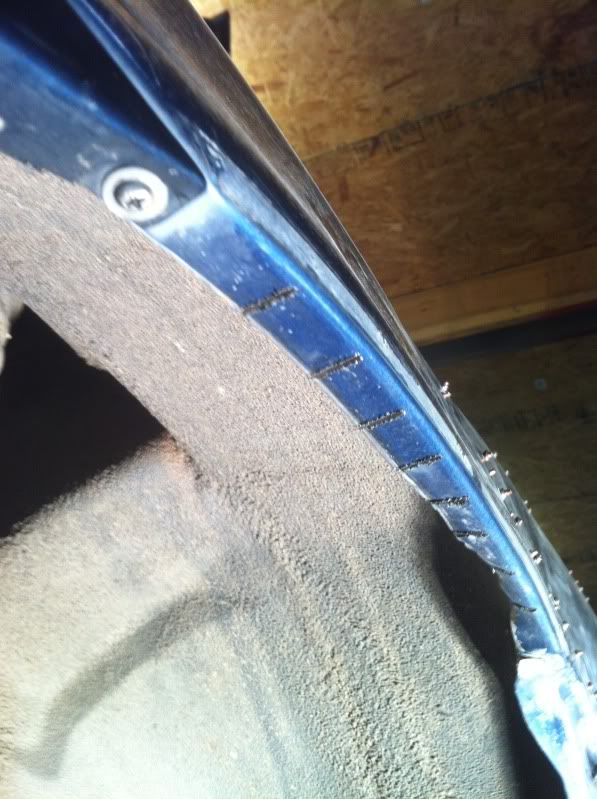

folded/rolled ... using a hammer and dolly i gently hit the lip till it was folded up nicely

done with the rolling. im going to sand/seal/undercoat this and call it done. the tires shouldnt be close now
hybrid10 is offline
