post #41 of 408 (permalink) Old June 13th, 2008, 20:02
Registered User

Join Date: Aug 2006
Location: Bellevue, WA
Age: 31
Posts: 1,577
OldTrader Rating: (4)
i started mine today...posted it on fiberglassforums...
fatalmk1 is offline
Sponsored Links
Advertisement

post #42 of 408 (permalink) Old June 15th, 2008, 22:50 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)
Well, I started the lip today and finished off the front of the skirt. Here's my progress:

Blocks-o-foam:

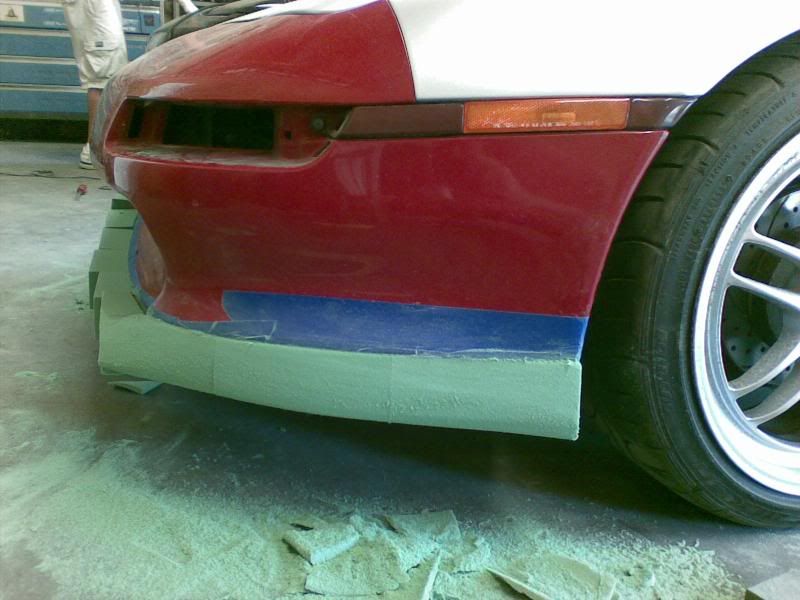

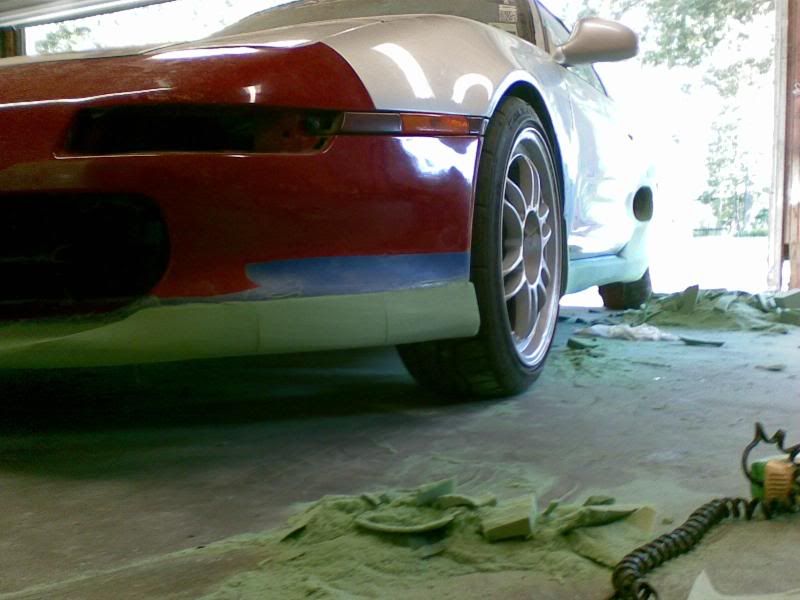

Rough sanding the side of the lip

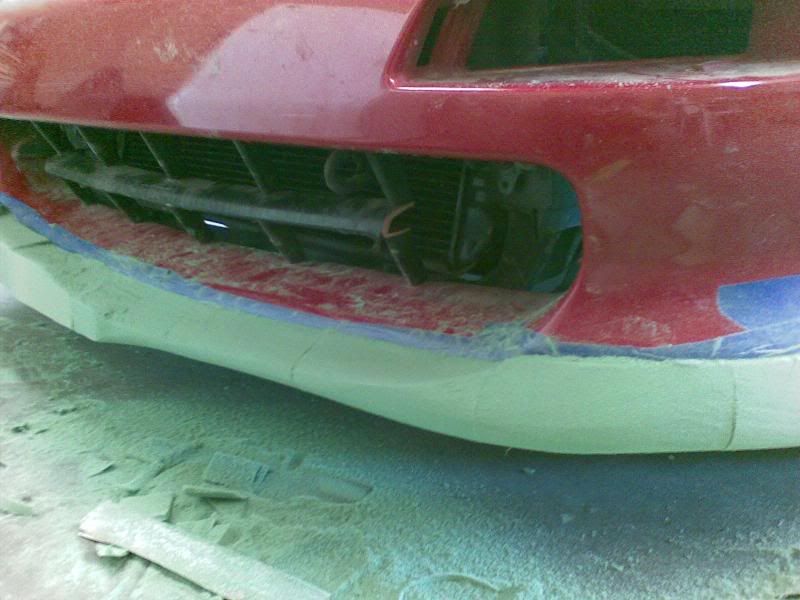

Front of the lip:
Orphan is offline
post #43 of 408 (permalink) Old June 15th, 2008, 22:53 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)
Got that nice roll from the bumper into the lip.

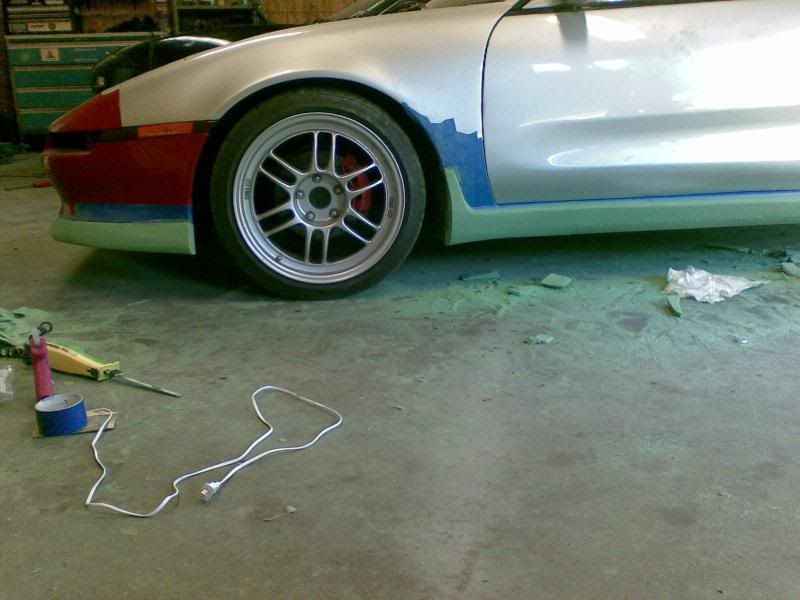

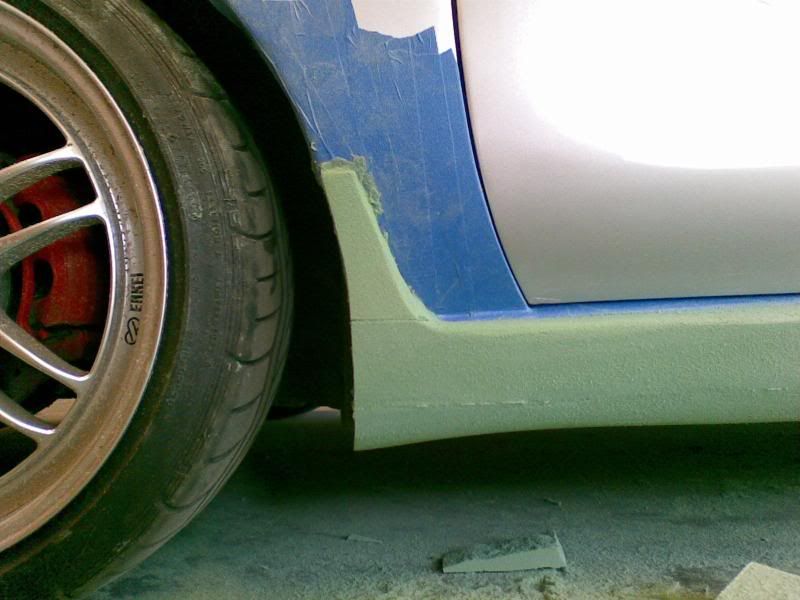

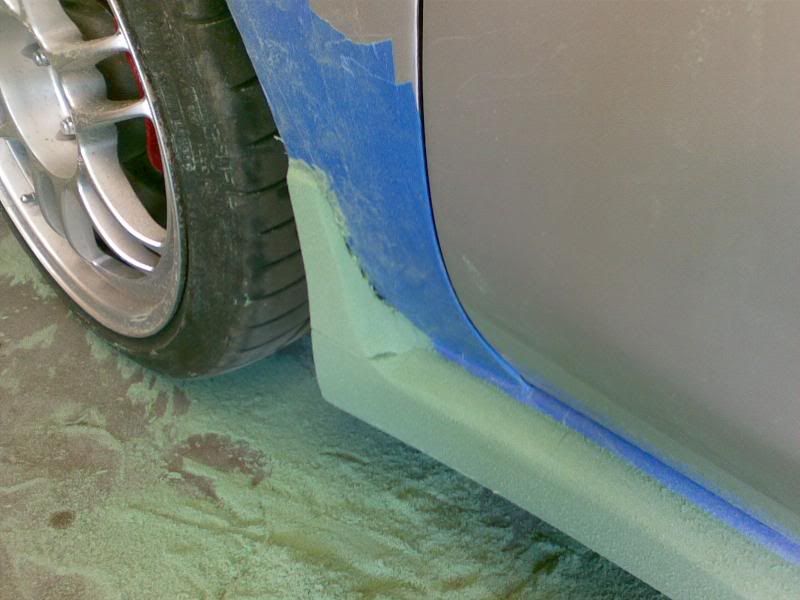

polished off the front of the skirt once I got the side of the lip done. I'm happy with it.




Orphan is offline
Sponsored Links
Advertisement

post #44 of 408 (permalink) Old June 15th, 2008, 22:55 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)

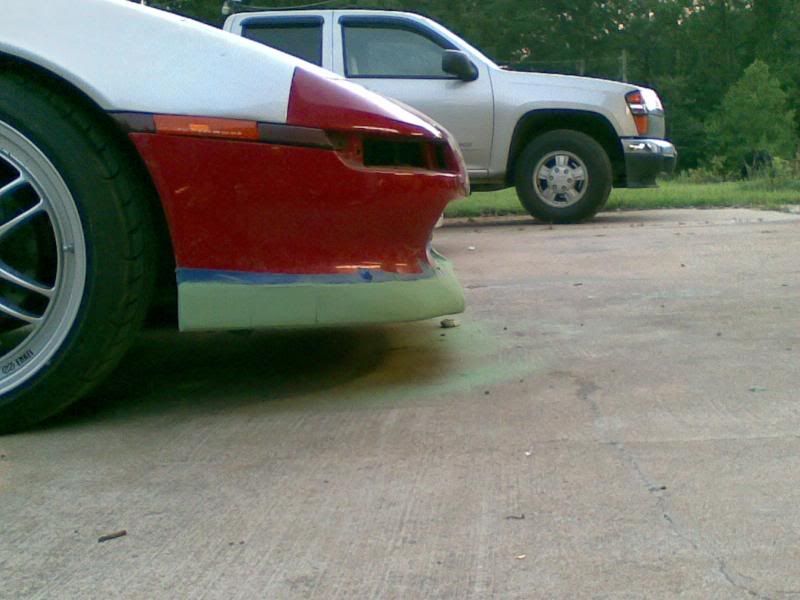

Trying to get the sides to match up:

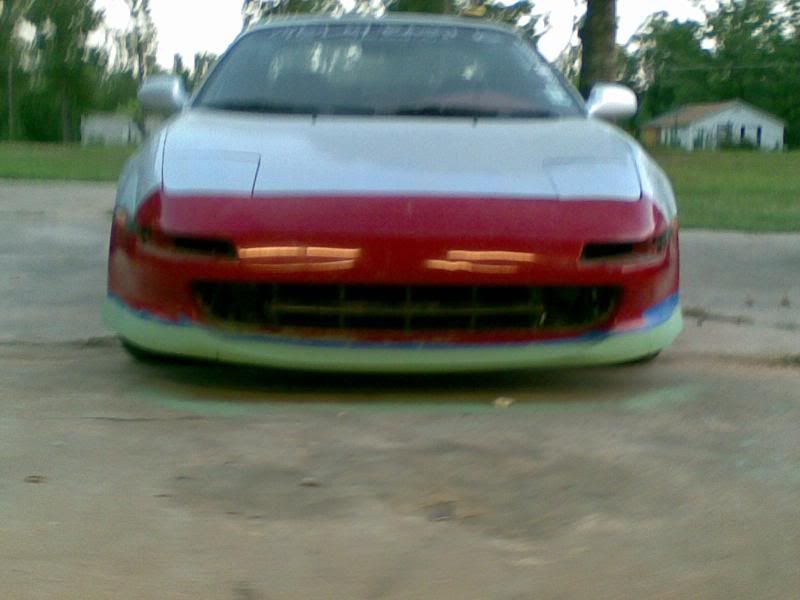

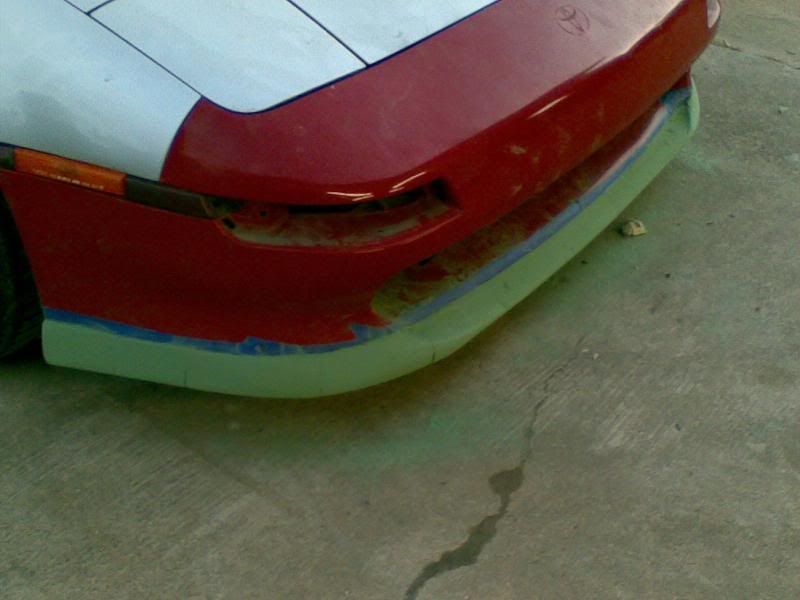

Here it is...the finished shape of the lip.


Orphan is offline
post #45 of 408 (permalink) Old June 15th, 2008, 23:01 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)

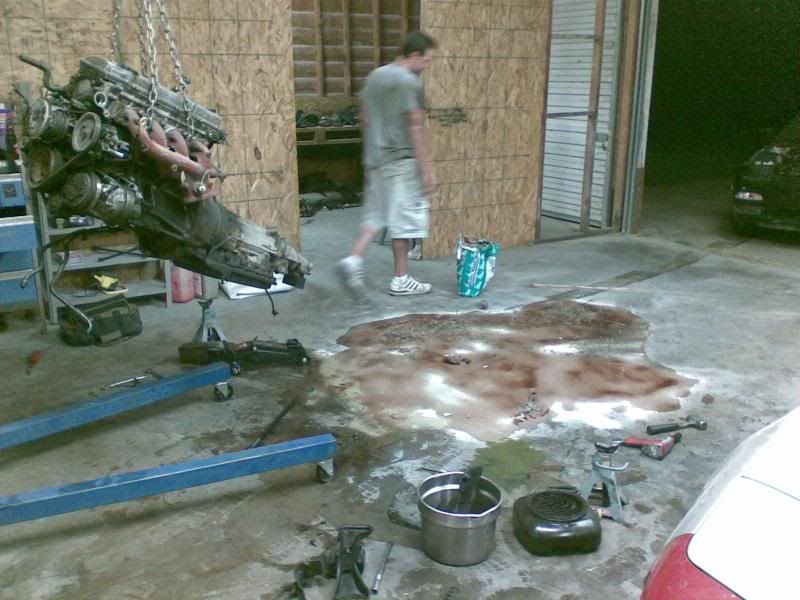

And just for giggles we pulled the motor out of my shopmate's nissan 240


Lessons learned today:
1. foam is really hard to shape if it flapping around on the bottom of the bumper.

2. drain the tranny fluid before pulling the motor out of a 240 because it will cover the shop floor and make you use up all your oil dry.

3. 240's engines are a lot easier to pull than mr2's.

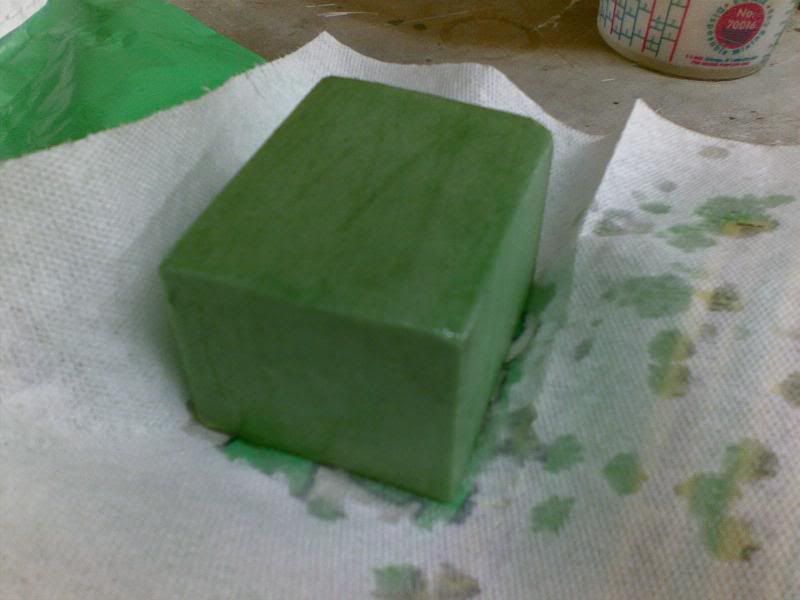

4. Lowes and home depot sell a foam block with sanding material on it that's around 100 grit that is perfect for getting clean lines in the foam. I think its supposed to be used for sanding drywall.
Orphan is offline
post #46 of 408 (permalink) Old June 15th, 2008, 23:09
Registered User

Join Date: Dec 2006
Location: Palo Alto
Age: 34
Posts: 975
OldTrader Rating: (17)
Very creative !
Might have to try this in the future.
norcalsurfer03 is offline
post #47 of 408 (permalink) Old June 15th, 2008, 23:32
Registered User

Join Date: Nov 2004
Location: colorado
Age: 31
Posts: 7,077
OldTrader Rating: (40)
my friend and i pulled the pos k out of his 240, it took like 3 hours from start to finish, we ran into the same tranny fluid issue, not fun to clean up. lol
tred is offline
post #48 of 408 (permalink) Old June 16th, 2008, 21:01 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)

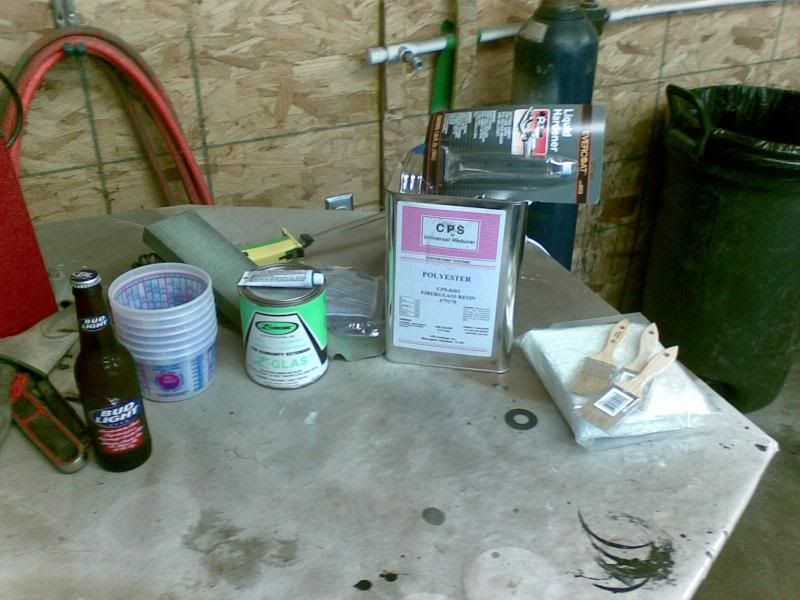

The great experiment begins. I gathered all my materials. Resin, harder, chop mat, body filler, cups, brushes, and beer.

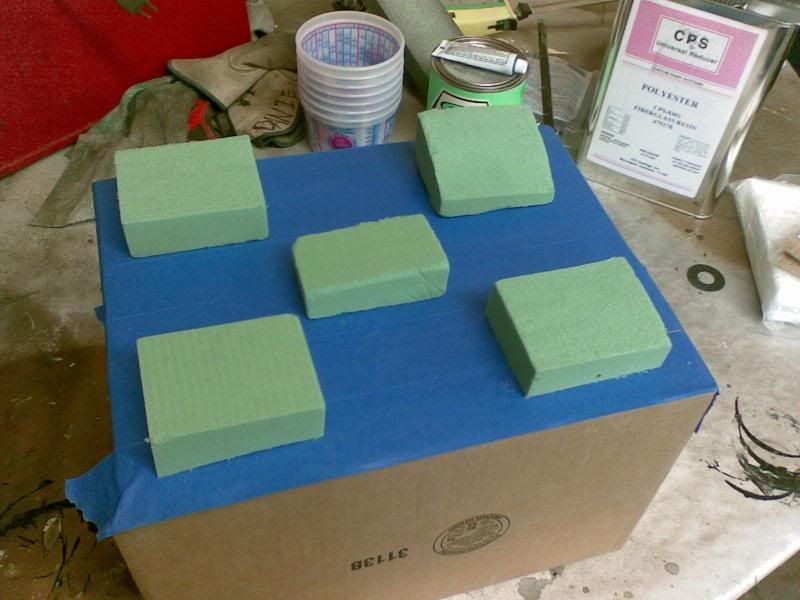

I glued some scrap foam to a box to see what method I will use:

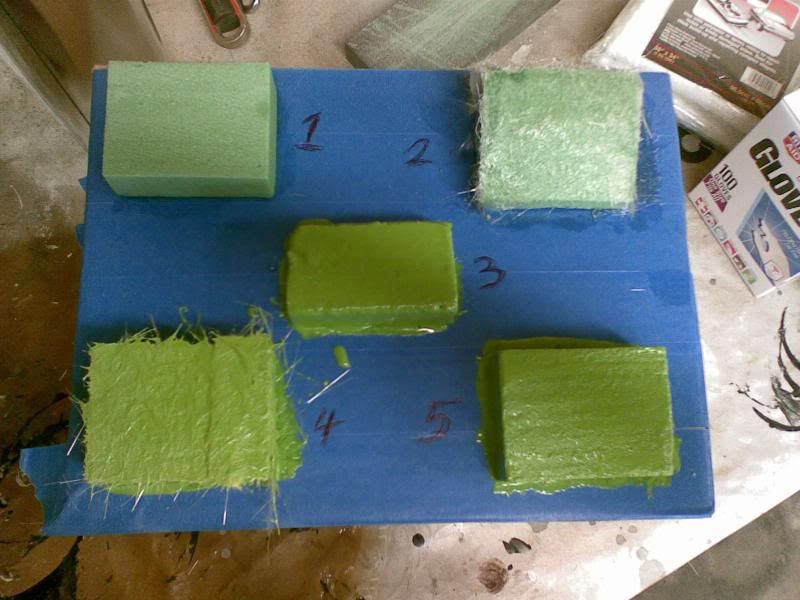

Heres the layout:
1. Straight resin
2. Resin and one layer of chop mat
3. 2 coats of "milkshake" (half resin, half body filler with proportionate amounts of hardner for each)
4. milkshake with one layer of chop mat
5. 1 layer of milkshake ( I will later add a layer of mat on top with resin when everything cures)


6. 2-2 1/2 coats of resin only


Good news, the resin doesn't seem to eat into the foam at all so that's cool. We'll check it out tomorrow and see what goes down.

Last edited by Orphan; June 16th, 2008 at 21:06.
Orphan is offline
post #49 of 408 (permalink) Old June 16th, 2008, 21:42
Registered User

Join Date: Aug 2006
Location: Bellevue, WA
Age: 31
Posts: 1,577
OldTrader Rating: (4)
nice! good to know....is is fully cured? isnt it the gasses let off by the curing resin thats supposed to eat the foam....and ur gonna need more than that one sheet of mat.....lots more
fatalmk1 is offline
post #50 of 408 (permalink) Old June 17th, 2008, 05:39
Registered User

ekliptik's Avatar

Join Date: Mar 2004
Location: vegas
Age: 37
Posts: 2,666
OldTrader Rating: (84)
i'd do what u did on the front of the sideskirt to the ends of the front lip. where it meets the wheel well.
ekliptik is offline
post #51 of 408 (permalink) Old June 17th, 2008, 08:41 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)
Quote:
Originally Posted by ekliptik
i'd do what u did on the front of the sideskirt to the ends of the front lip. where it meets the wheel well.
It's actually in the works. I've got to add a bit more length and width to the lip. It's gonna end up looking like Angelina Jolie. Big lips and a wide, firm behind.
Orphan is offline
post #52 of 408 (permalink) Old June 17th, 2008, 12:42
Registered User

Join Date: Oct 2007
Age: 38
Posts: 1,169
OldTrader Rating: (18)
man i really like that front lip any chance i can get you to make an extra when your done with yours?
cott is offline
post #53 of 408 (permalink) Old June 17th, 2008, 13:07 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)
Quote:
Originally Posted by cott
man i really like that front lip any chance i can get you to make an extra when your done with yours?
I am going to make a master mold of the finished product so yes there is a chance.
Orphan is offline
post #54 of 408 (permalink) Old June 17th, 2008, 14:11
Registered User

Join Date: Jul 2006
Age: 31
Posts: 1,151
OldTrader Rating: (2)
Amazing, invaluable information for the entire board, kudos to you!!

This is probably one of the best FG reads I've had in a long time, really motivating me to get started on my custom rear bumper/diffuser
DarkMousy is offline
post #55 of 408 (permalink) Old June 17th, 2008, 14:29
Registered User

Join Date: Mar 2004
Location: virginia
Posts: 183
OldTrader Rating: (0)
subscribed.

Coolest thread ever.
MAB9981 is offline
post #56 of 408 (permalink) Old June 17th, 2008, 15:23
5sfeturbo.com

5sfect20b's Avatar

Join Date: Jun 2005
Posts: 2,750
OldTrader Rating: (35)
This is a really really great thread!!!

I made molds out of cardboard and created fenders for my 240z out of fiberglass/metal once I had the basic shape cut from the cardboard-- but nothing fancy like this!

I can't say it enough, I'm amazed with your skills and patience.

Below is my attempt. I have a few more images on my site:http://5sfeturbo.com left menu under other cars.

5sfect20b is offline
post #57 of 408 (permalink) Old June 17th, 2008, 15:35 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)
That 240z is badass. Looks to be heavily Porsche inspired. Looks like it could be an old-school JGTC car.
Orphan is offline
post #58 of 408 (permalink) Old June 17th, 2008, 15:38 Thread Starter
Registered User

Join Date: Mar 2004
Location: Pearl, MS
Age: 38
Posts: 6,702
OldTrader Rating: (14)
BTW: I think I've got a new name for my MR2....

.
.
.
.
.
.

The Nerf Car (or Nerfmobile if you prefer)
Orphan is offline
post #59 of 408 (permalink) Old June 17th, 2008, 15:49
5sfeturbo.com

5sfect20b's Avatar

Join Date: Jun 2005
Posts: 2,750
OldTrader Rating: (35)
Quote:
Originally Posted by Orphan
That 240z is badass. Looks to be heavily Porsche inspired. Looks like it could be an old-school JGTC car.
Thanks!

I was thinking of turbocharging it or dropping in a skyline engine. Not sure what it would cost, but sure would be fun car. The car has been sitting for a while, so it needs some bodywork and paint again. I'll probably redo the front end to be more dramatic.
5sfect20b is offline
post #60 of 408 (permalink) Old June 17th, 2008, 17:37
Ran
Registered User

Ran's Avatar

Join Date: Mar 2004
Location: Memphis, TN
Age: 37
Posts: 1,079
OldTrader Rating: (8)
Quote:
Originally Posted by MAB9981
subscribed.

Coolest thread ever.
Yah this thread is pretty bad ass.
Ran is offline
