post #61 of 83 (permalink) Old July 2nd, 2006, 22:07
Registered User

Join Date: Jul 2004
Location: Oswego, IL
Age: 33
Posts: 2,897
OldTrader Rating: (18)
i was getting air from my pcv as well. i would guess if there is blowby, it would be due to a cold engine not sealing perfectly moreso than just toasted rings.
jmur3040 is offline
Sponsored Links
Advertisement

post #62 of 83 (permalink) Old July 6th, 2006, 19:39
hookedup96rolla
Guest

Posts: n/a
can you hear air going through the open valves in the motor? I'm pushing about 22psi accordin to the gauge through my line but then i built a gauge into the tester as well and only create about 12psi in the entire system when the aic and pcv is capped.
post #63 of 83 (permalink) Old July 17th, 2006, 14:55

Join Date: Mar 2004
Posts: 62
OldTrader Rating: (4)
if you're too lazy to go to home depot and make it yourself, order the following 2 items:

1.
http://www.boostpro.net/prodtester.html
dsm boost leak tester 3" diameter. $16.05 shipped and it looks neat.

2.
http://www.siliconeintakes.com/reducer.htm
3" to 2.75" coupling. connect 3" side to dsm tester, then 2.75"inch side to the ct26 turbo
$18.99 shipped
babyferrari is offline
Sponsored Links
Advertisement

post #64 of 83 (permalink) Old October 18th, 2007, 10:47
Registered User

Join Date: Sep 2007
Location: Greenville, SC
Age: 30
Posts: 9,439
OldTrader Rating: (13)
To block off extra hoses, I know someone that puts bolts into the hoses that go to items that may leak. Like the a/c idle control, he blocks off by pulling the hoses to it, inserting appropriate size bolts, and uses a hose clamp to seal it in...
SnowRocker88 is offline
post #65 of 83 (permalink) Old August 25th, 2008, 23:05
Registered User

Join Date: May 2005
Location: Baltimore, MD
Age: 31
Posts: 2,480
OldTrader Rating: (41)
here's mine. get a "spectere" 3" silicon (its actually 3" outer diameter so its perfect for ct26) hose adapter and a quick disconnect fitting at autozone. then get a pvc pipe end cap. total like $20
M1ke is offline
post #66 of 83 (permalink) Old October 6th, 2008, 11:10
Registered User

Join Date: Sep 2007
Location: Greenville, SC
Age: 30
Posts: 9,439
OldTrader Rating: (13)
this site sells them...
Frozenboost
SnowRocker88 is offline
post #67 of 83 (permalink) Old October 6th, 2008, 12:29
Registered User

Join Date: May 2005
Location: Baltimore, MD
Age: 31
Posts: 2,480
OldTrader Rating: (41)
Quote:
Originally Posted by SnowRocker88
this site sells them...
Frozenboost
good find. thats cheaper than emspowered
M1ke is offline
post #68 of 83 (permalink) Old October 6th, 2008, 12:33
Registered User

Join Date: Sep 2007
Location: Greenville, SC
Age: 30
Posts: 9,439
OldTrader Rating: (13)
Yea, and I figured the assortment would please those with upgraded turbos...
SnowRocker88 is offline
post #69 of 83 (permalink) Old October 10th, 2008, 18:10
Registered User

ItSnotjavi22's Avatar

Join Date: Jan 2005
Age: 34
Posts: 760
OldTrader Rating: (26)
i bought this elbow shaped one instead, it makes it a little easier when going through this. its about $3 dollars more than the short straight one but i still put this together for under 20 bucks at lowes. i think my plug came straight from heaven, shines like that in the dark too...

Last edited by ItSnotjavi22; October 10th, 2008 at 18:15.
ItSnotjavi22 is offline
post #70 of 83 (permalink) Old October 10th, 2008, 20:45
Registered User

Join Date: Sep 2007
Location: Greenville, SC
Age: 30
Posts: 9,439
OldTrader Rating: (13)
The guy that pressure tested my car way back when had one with about a 3' pipe section after the elbow so the gauge and nozzle was out of the engine bay. It's hard to explain, but his was the best...but a little bulky...
SnowRocker88 is offline
post #71 of 83 (permalink) Old February 12th, 2009, 17:14
Registered User

Join Date: Mar 2004
Posts: 1,712
OldTrader Rating: (17)
I ordered one from frozen boost. Let see if i'll find any leaks on my car.
mr2_503 is offline
post #72 of 83 (permalink) Old September 13th, 2009, 14:52
Registered User

Join Date: Jul 2009
Location: Desert Feet
Age: 34
Posts: 105
OldTrader Rating: (1)
lol yup, home depot sucks, they never have what you want until you are where you need to be haha
Quote:
Originally Posted by mr2racer22
Well I just tried making one of these home made pressure testers, and kinda gave up for now in the end as well.

Went to home depot bought a 3inch and it's way to big (even for my td06 sitting in the garage)...so went back and bought a 2 inch since I couldn't find a 2.5 inch. It ended up being the exact same size as the inlet lol...Has anyone found a 2.5 piping at either Home Depot or Lowes? I went to both and all they had were
1, 1 1/2, 2, 3 & 4inches....
kuromr2 is offline
post #73 of 83 (permalink) Old March 19th, 2011, 17:21
Registered User

Join Date: Oct 2007
Age: 33
Posts: 4
OldTrader Rating: (0)
I've been looking for a way to efficiently find my boost leak, this seems to be the best way without a smoke machine.

Thank you!!!
monkninja is offline
post #74 of 83 (permalink) Old August 20th, 2011, 19:25
Registered User

Join Date: Mar 2009
Age: 45
Posts: 42
OldTrader Rating: (3)
leak at MBC?

Should there be a leak at the MBC? I turned on the compressor and air was coming out of the mbc. I was doing some searches and that the mbc should be leaking air?

I have one of the screw type mbc's.

Thanks!
ivanhu is offline
post #75 of 83 (permalink) Old August 20th, 2011, 21:41
Registered User

Join Date: Aug 2008
Location: USA
Posts: 713
OldTrader Rating: (10)
Quote:
Originally Posted by ivanhu
Should there be a leak at the MBC? I turned on the compressor and air was coming out of the mbc. I was doing some searches and that the mbc should be leaking air?

I have one of the screw type mbc's.

Thanks!
I found the same thing happened on my Twos R Us MBC. It leaks out of that little hole on top, roght? I found that changing the knob's position can make it stop (forgot whether CW or CCW). My guess is that if you're using way more pressure than needed to open the wastegate, the ball in the MBC will compress the MBC spring far enough for the air to reach the channel connected to that hole, so air leaks out. It would make sense that if you turn the knob CW and increase pressure on the spring, it will keep the ball from compressing the spring as much, thus not reaching the relief channel, or whatever it is. It might be built in to keep the MBC from exploding with a crapload of boost. Just guessing...

Last edited by Bowenaero; August 20th, 2011 at 21:47.
Bowenaero is offline
post #76 of 83 (permalink) Old August 22nd, 2011, 23:44
Registered User

Join Date: Nov 2010
Posts: 49
OldTrader Rating: (1)

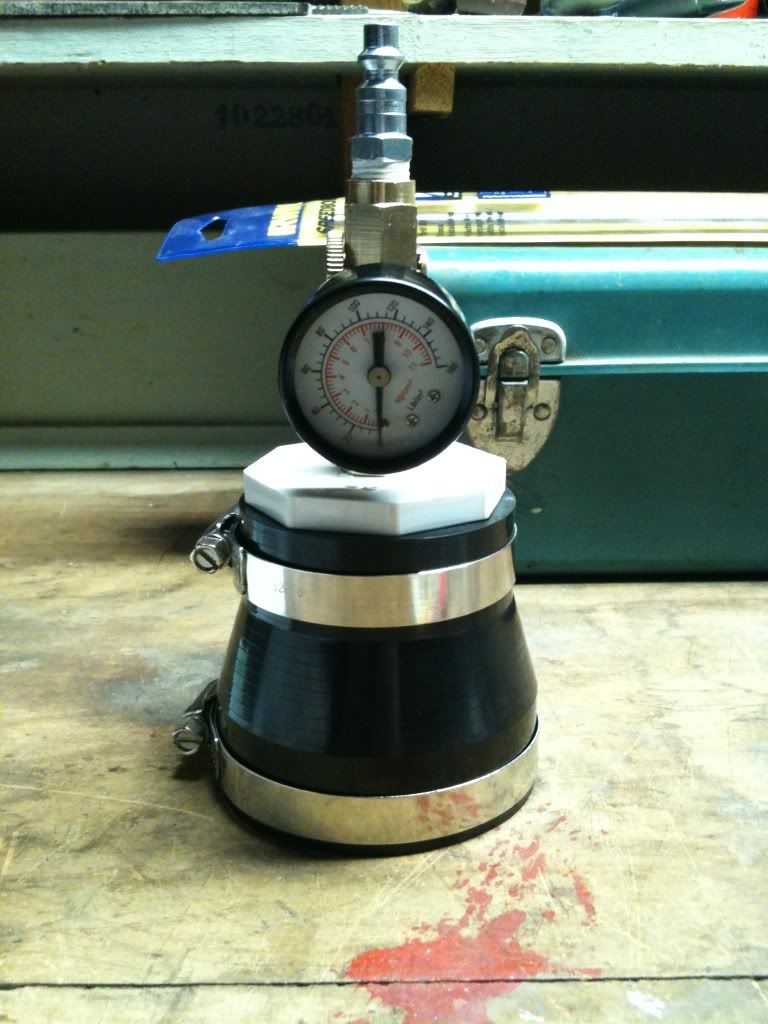

This is what I came up with for the CT26. A bit on the expensive side, but I can regulate and monitor the air!


[IMG]Boost system pressure tester[/IMG]
santillins15 is offline
post #77 of 83 (permalink) Old August 22nd, 2011, 23:54
Registered User

Join Date: Nov 2010
Posts: 49
OldTrader Rating: (1)
+ Air Regulator

This is what I came up with for the CT26. A bit on the expensive side, but I can regulate and monitor the air!



Last edited by santillins15; August 22nd, 2011 at 23:57.
santillins15 is offline
post #78 of 83 (permalink) Old August 22nd, 2011, 23:56
Registered User

Join Date: Nov 2010
Posts: 49
OldTrader Rating: (1)
Leaking EGR

This is what the test revealed. Should I buy this new or try to find one used?

santillins15 is offline
post #79 of 83 (permalink) Old September 2nd, 2011, 14:37
Registered User

Join Date: Nov 2010
Posts: 49
OldTrader Rating: (1)
So... I have fixed two leaks, the turbo fitting 'Barb to Brits..' and the EGR with plates. I am still leaking a ton of air somewhere... There is a loud air noise coming from around the intake manifold... Any ideas? The sound is coming from under the EGR.

I do not think its the BPV or wastegate, but I could be wrong.

Common things to check in this area? I have heard the fuel rail can leak. How do i test that? I am a newb, but capabile of working down the list... I also have a BGB that I can look at, just need a push.
santillins15 is offline
post #80 of 83 (permalink) Old December 5th, 2011, 17:36
Registered User

Join Date: Aug 2008
Location: Germany
Age: 37
Posts: 1,566
OldTrader Rating: (12)
i have a question too.(have to dig this out)
whats with that open TB?isnt a pair of valves always open?
So in that case i never can pressurize the system except when the TB is closed?
